Product Details:
Payment & Shipping Terms:
|
| Product Name: | 30W CO2 Laser Marking Machine For Plastic Bottle | Light Beam Quality: | <2 |
|---|---|---|---|
| Control Interface: | Standard USB Port | Application Material: | Ceramics |
| Laser Power: | 30w | Laser Source: | DAVI |
| Application: | Achitechive | Service: | Free For Users To Debug And Open |
| Support Graphics Formates: | Graphics | Profit Model: | Agents |
| High Light: | co2 laser marker,co2 laser engraving machine |
||

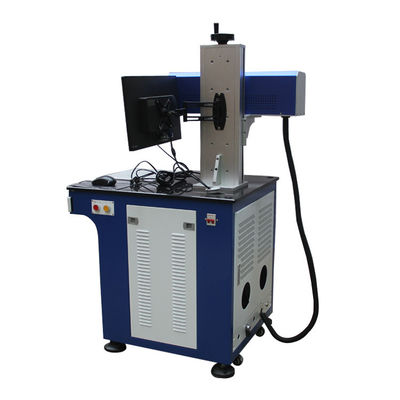

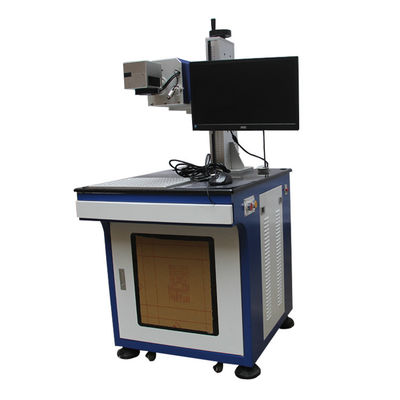

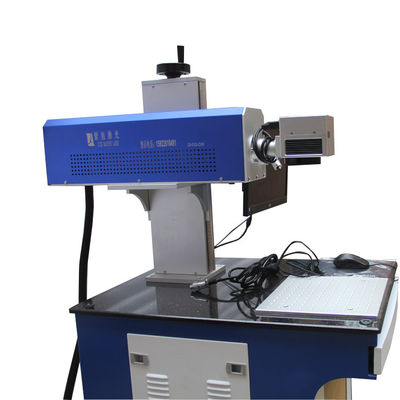

Serial number Product Number 30W CO2 laser marking machine for plastic Bottle
Product description
CO2 laser marking machine adopts infrared gas laser,10.64m,CO2 gas filled with high pressure glow discharge is generated in a discharge tube,the gas molecules released from the laser,the laser energy amplification after the formation of laser material processing,laser beam to be gasified surface processing reach the purpose of carving.
Product application
CO2 laser marking machine can mark a varity of non-metallic materials and metal products,such as bamboo,wood,paper ABS PVC epoxy resin,acrylic,leather,glass,building ceramics,rubber etc..Widely used in pharmaceutical packaging,food packaging,beverage packaging,plastic,textile,leather,wood,handicrafts,electronic components,communications,watches,glasses,printing and other industries.

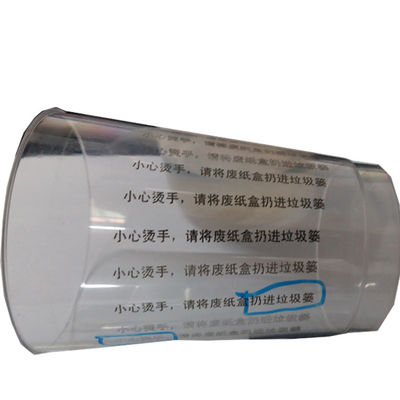

Sample
CO2 laser marking machine can mark a varity of non-metallic materials and metal products,such as bamboo,wood,paper ABS PVC epoxy resin,acrylic,leather,glass,building ceramics,rubber etc..Widely used in pharmaceutical
packaging,food packaging,beverag.packaging,plastic,textile,leather,wood,handicrafts,electronic components,communications,watches,glasses,printing and other industries.
Co2 laser marking machine parameter
| Model number | CO2 laser marking machine | |
| Laser power | 15w/30w | |
| Maximum speed | 7000mm/s | |
| Graphics formats | PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO.DXF | |
| Quality of light plate | M2<2 | |
| Power stability | (8h)<+-1% rms | |
| Pulse repetition frequency | 20KHZ-60KHZ | |
| Power | <800w | |
| Minimum line width | 0.1mm | |
| Minimum character | 0.4mm | |
| Laser wavelength | 10.6um/10.2um | |
| Marking size | 100x100/175x175/300x300mm | |
| Cooling method | Air cooling | |
| Working voltage | 110/220v+-10%,50/60HZ |
Packing and shipping
The machine gross is 1-75KG, you can use express delivery. If more than 75KG, you can choose sea transportation.
| Delviery time | 7-15 working days |
| Type of shipping | Express,air or sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 95x55x83cm |
| Gross weight | 188KG |
After service
A: How to install and run the machine?
Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
B:How can I do if the machine goes wrong?
If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Chuke Factory
Chongqing Chuke intelligent machinery equipment Co.,ltd is a subsidiary of Chongqing ZiXu Machine works, is a professional engaged in marking machine design and industrial enterprises. Founded in 2006, covers an area of 2000 square meters. In annual production of 500 sets of laser marking machine,500 sets dot peen marking machine and electric marking machine,more over 100000 pieces marking stylus.Products are exported to all countries in the world,Such as the India, Spain, France, Germany, the United States, Brazil, South Korea and other more than and 30 countries . After we continue to improve and perfect the product quality has been achieved CE, ISO9001, FDA, TUV certificate, won the domestic and foreign large
A: How to install and run the machine?
Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
B:How can I do if the machine goes wrong?
If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
C.How long is the maintenance period for the laser marking machine?
The machine warranty for three years
