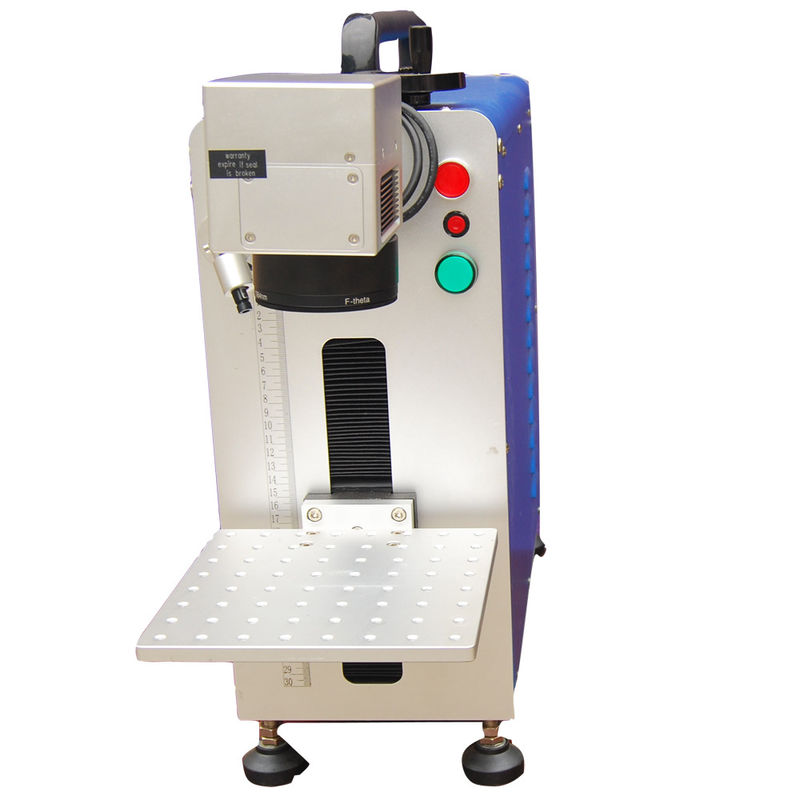

Oem 20Watt Metal Marking Machine / Raycus Graphics Fiber Laser Marking For Nameplate

Principle

Laser marking machine using the most advanced laser technology in the world, with a wavelength of 808nm laser diode pumped Nd: YAG medium, the medium produces a large number of inverted particles, the role of the Q switch to form a wavelength of 1064nm giant pulse laser output, High electro-optical conversion efficiency.

Appliance

Metal Marking Machine samples

Laser marking machine series is suitable for mobile phone keys, plastic transparent keys, electronic components, integrated circuits (IC), electrical appliances, communications products, sanitary ware, tool accessories, knives, glasses, watches and clocks, jewelry, auto parts, bags Trimmings, cooking utensils, stainless steel products and other industries

Mini Fiber Laser Marking Machine parameter

Usage method

1. Check the marking machine's power cord, make it connected correctly and reliably;
2. Insert the key switch, clockwise 90o to "open" position, 3. connected to the total power supply. Power indicator light
4, confirm the laser head mushroom button (emergency stop switch) is in the pressed state;
5, turn on the computer monitor, the host computer power switch;
6, Rotate the red mushroom button in the direction of the arrow to make it bounce, then turn on the power of the laser head. After about 1 minute, the laser head starts to finish;
7, remove the lens cover; At this point, the laser marking machine is opened, you can accept the operator's command to mark the operation.

Product features

The laser marking machine has been greatly improved on the structure of the machine: the optical system adopts the fully sealed structure, with the optical path preview and the focus indication function, the appearance is more beautiful and the operation is more convenient; the machine is equipped with the latest external water cooling system, running noise Very low, high temperature regulation accuracy, long-term operation of the machine provides a reliable guarantee. XD / Feng Rui series of some models can also be used with the production line and automated production line equipment.

FAQ

1. The scope of application?                                                                                                                      For non-metallic materials such as metal                                                                                              2. Focusing is like?                                                                                                                       Support red positioning, focusing                                                                                                           3. Lens range ?                                                                                                                               100x100mm / 150x150mm / 300x300mm optional

Mini laser marking machine Maintenance: The connection between the pump source and the laser head of the laser system is carried out by the optical fiber. Users should ensure that the bending diameter of the optical fiber is greater than 300mm during use or during transportation. Serious bending will lead to fiber breakage and laser system does not work properly.

Design feature

With the third generation of fiber-optic solid-state lasers, the pump light source is coupled through a fiber and the electro-optical conversion efficiency is as high as 80%. The beam quality is higher and the lifetime is longer. The lifetime of the laser can reach 100,000 hours. The air-cooled, Energy saving, the late use of low cost

After service

1. We sell the whole 3 year warranty, life-long maintenance;

2. Free installation, debugging my company sold products;

3. Free training for the use of operators, maintenance staff;

4. Free equipment upgrade software;

Packing and shipping

Packing in carton case,20*20*25cm The machine gross is 1-75KG, you can use express delivery. If more than 75KG, you can choose sea transportation.

Chuke Factory

Chongqing Chuke Intelligent Machinery &Equipment Co.,Ltd
specializes in producing pneumatic marking machine parts marking needle, has 10 years of history, has always insisted quality first, the user is supreme.Product range, first-class product quality, customer base all over the country, but also exported to the world.
Because of focus, so professional.
Our company also started from a few people's factories do now dozens of people do marking the needle is divided into several processes, complex technology, there is no guarantee product concentricity, product scrap rate is very high, the beginning of many small manufacturers also try Made this product, later
Are the relationship between product quality and scrap rate did not go on. Our company from 2012, the introduction of advanced numerical control equipment, a product molding, product concentricity fully guaranteed, made of special technology inlaid in the sleeve wear-resistant oil-bearing process will be out of oil, the protection of the needle sleeve and the core resistance mill.
