Product Details:
Payment & Shipping Terms:
|
| Warranty: | Blue | Quality Of Light Plate: | M2<2 |
|---|---|---|---|
| Minimum Line Width: | 0.1mm | Laser Power: | 20W |

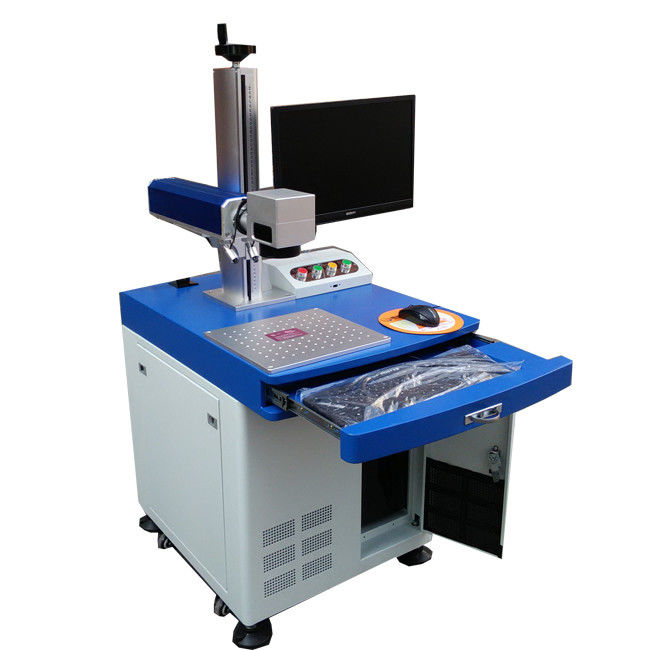

| Software: | EZCAD | Product Name: | 20 Watt Fiber Laser Machine |
| High Light: | fiber laser marker,fiber laser marking system |
||
Working principle
CHUKE fiber laser marking machine, the high-quality beam focused to an extremely small point, resulting in huge energy. By marking the material by the high thermal energy excitation, sublimation of the surface material, resulting in eternal marking effect.
|
Laser power |
10W/20/30/50W |
| Laser Wavelength | 1064nm |
| Light beam quality | <2 |
| Repeating precision | ±0.002 |
| Marking range | 110x110mm(customize) |
| Marking depth | 0.01~1mm |
| Marking speed | 7000mm/s |
| Minimum character | 0.15mm |
| Minimum line width | 0.01mm |
| Repeating frequency | 20KHz~30KHz |
| Marking content |
Graphics, text, bar codes, two-dimensional code, date, batch number, serial number |
| Graphic format supported | bmp,png,ai,dxf,dst,plt |
|
|
220V±10%/50Hz/4A |
| Size | 570mmx270mmx200mm |
| Gross Weight | 135kg |
| Control interface | standard USB port |
| Laser module life | 100000~200000 hours |
Application
Fiber laser marking machine by marking one-dimensional code, two-dimensional code and plain text, product information will be displayed to consumers, the product information and product bundled together, so that product users at a glance the specific product information. Its marking speed, stability and error is small, widely used in various industries.
Select the appropriate working environment, the fiber laser marking machine access 110V, 220V constant voltage. By adjusting its height, marking frequency, scanning speed, marking power, line filling speed, to achieve accurate marking..
Beyond the traditional YAG laser, using a Q-switched master oscillator and a high-power laser amplifier (MOPFA), a periodic pulse train with a peak power of up to 7KW is generated at a wavelength of about 1064 nm.
.
FAQ
How to extend the life of fiber laser marking machine? Keep in a clean, low-humidity environment to reduce dust ingress.
Design feature
Fiber laser marking machine, CNC focus, red positioning. By reading the input information, accurate industrial marking. Optical protective cover to achieve laser protection, with a solid, stable features.
Product features
Industrial Performance: Has a solid cast structure and high quality optical components, a high degree of stability. High-contrast marking on all types of surfaces (smooth, rough or coated). Produce different effects, shades can be controlled.
Packing and shipping
Professional packaging logistics system, fiber laser marking machine after assembly, testing, shipping after the test, through the protection of each vulnerable parts to ensure that the packaging error-free and reduce damage during transport and other cases.
Aftersale service
After-sales service, after-sales service is guaranteed.
