Name: | Metal Industrial Laser Marking Machine | Color: | Blue |
---|---|---|---|
Applicable Material: | Silver,gold | Laser Brand: | Raycus |
Laser Power: | 20wat | Application: | Hardware Accessories |
Software: | EZ-CAD | Service: | 24 Hours Online Service |
Support Graphics Formates: | Shift Codes | ||
High Light: | laser marking device,metal marking equipment |

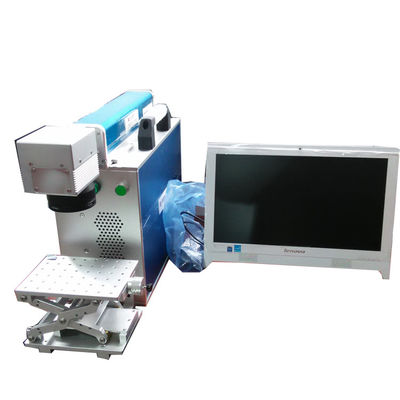

Marking Alphanumeric Info On Metal Industrial Laser Marking Machine
Principle
Fiber laser marking is the use of laser beams on a variety of different material surfaces marked. The marking effect is due to evaporation of the surface material to reveal the deep material or causes chemical and physical changes of the surface material through the light and "marks" or burns the light portion of the material, Pattern, text showing etching.
Appliance
Metal Marking Machine samples
Widely used in IC chips, computer accessories, industrial bearings, watches and clocks, electronic and communications products, aerospace components, all kinds of auto parts, household appliances, hardware tools, molds, wire and cable, food packaging, jewelry, tobacco and military affairs and many other Field graphics and text markup, as well as high volume production line assignments.
Metal Fiber Laser Marking Machine parameter
type | Metal marking machine |
Size | 75*55*83cm |
Gross Weight | 75kg |
Laser power | 10/20/30/50 w |
Laser wavelength | 1064nm |
Power supply | 220V±10%/50Hz/4A |
Repeating precision | ±0.002 |
Repeating frequency | ±0.002 |
Marking range | 110x110mm(customize) |
Marking depth | 0.01~1mm |
Marking speed | 7000mm/s |
Minimum character | 0.15mm |
Minimum line width | 0.01mm |
Marking content |
Graphics, text, bar codes, two-dimensional code, date, batch number, serial number |
Usage method
1, check the marking machine's power cord, so that it is connected correctly and reliably;
2, connected to the total power supply. Power indicator light
3, confirm the laser head mushroom button (red emergency stop switch) is in the pressed state;
4, open the computer monitor, the host computer power switch;
5, Rotate the red mushroom button in the direction of arrow to make it bounce, then turn on the power of the laser head. After about 1 minute, the laser head starts to finish;
6, At this point, the laser marking machine is turned on, you can accept the operator's command to mark the operation
Product features
1, can be a variety of metal, non-metallic materials for processing. Especially for high hardness, high melting point, brittle material marking even more advantages.
2, belong to non-contact processing, does not damage the product, no tool wear, marking quality is good.
3, thin laser beam, processing material consumption is small, processing heat-affected zone small.
4, high processing efficiency, the use of computer control, easy to automate.
FAQ
laser marking machine how to adjust the marking depth? The most direct way to adjust: to enhance the laser power, the laser marking machine field mirror into a small range of field mirror, transformed, the marking depth will be deeper and improve the beam quality: you want to improve the quality of the beam , You need to adjust the laser cavity inside, replace the light guide material or replace the pump source, etc., the laser marking machine speed slowing down, the same power, the same other parameters, just modify the marking Of course, the depth of marking will certainly be a bit deeper
Design feature
Fiber laser, the latest in the world, the most reliable structure, small size, small power consumption, high voltage without large water cooling system (only about 300W), high beam quality, close to the ideal beam, USB interface, output control, optical scanning Mirror, high laser repetition rate, high speed without distortion.
After service
After-sale service
1.3 year guarantee,providing free technical support.
2.During the warranty period, Warranty period, the required parts after the non-human damage free replacement,the freight is borne by us.
3.Machine has been adjusted before delivery, operation instructions is included in the delivery. If there is any other questions, pls kindly tell us.
Packing and shipping
Packing in wooden case,75x55x83cm The machine gross is 1-188KG, you can use express delivery. If more than 75KG, you can choose sea transportation.
Delviery time | 7-15 working days |
Type of shipping | Express,air or sea |
Terms of payment | T/T,credit card,,paypal |
package size | 75x55x83cm |
Gross weight | 75KG |
Chuke Factory
Founded in 2006, Chongqing Chuke is a professional manufacturer that provides marking solutions, marking equipment and accessories, and is currently the largest mainstream accessory supplier in China marking industry. Companies to "make the world no marking problems" as the core goal, I hope all the people through the efforts of the purple aspirations, so that all customers have the most suitable marking program. Lay a solid foundation for the customer's brand building!
The quality of the company as the soul of our business! 10 years of insistence, let us get excellent reputation in the industry. Intentions of the service to our customers more trust. Professional design, thoughtful after-sales, let our products are exported to all corners of the country, won the praise of customers at home and abroad! We firmly believe that through the joint efforts of Zixu people, we will surely make all enterprises have their own identification system and successfully create a business anti-counterfeiting and traceability system.
