Home ProductsPortable Dot Peen Marking Machine

Metal Portable Dot Peen Marking Machine PMK-G01 For Dot Matrix 2D Codes

Good quality Fiber Laser Marking Machine for sales
Good quality Fiber Laser Marking Machine for sales
We bought the laser marking machine.it is good quality. Hope CHUKE have the good bussiness all the time

—— Alfanar Electrical System

We bought the laser marking machine.it is goog quality. Hope CHUKE have the good bussiness all the time

—— Alfanar Electrical System

Chuke have been working with us for over 10 years. They provide us with accessories for marking machines, so that our machines sell well in India.

—— EtchON Marks Control

We have already bought second laser marking machines at the beginning, which is compatible with our assembly line operation, fully automated marking, fast, safe and efficient marking.

—— Ford Company

I'm Online Chat Now

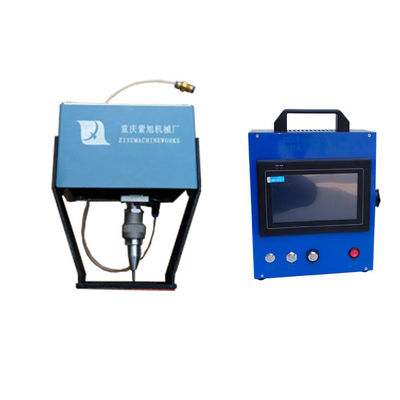

Metal Portable Dot Peen Marking Machine PMK-G01 For Dot Matrix 2D Codes

China Metal Portable Dot Peen Marking Machine PMK-G01 For Dot Matrix 2D Codes supplier

Large Image :  Metal Portable Dot Peen Marking Machine PMK-G01 For Dot Matrix 2D Codes

Product Details:

Place of Origin: China(mainland)
Brand Name: CHUKE
Certification: FDA,ISO,CE
Model Number: PMK-G01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1300-1600 per set
Packaging Details: Packing in carton,45*45*55cm
Delivery Time: after payment 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 600 sets per month
Contact Now
Detailed Product Description
Applcation: Steel, All Kinds Of Metal Materials Industrial: Automotive Chassis
Shipping: Express And By Sea Controller: :7"LCD Touch Screen Controller/window 7 Windows XP
Marking Materials: Above HRC60 Need Special Stylus Product Name: Portable Pc Controller Vibro Peen Marking Machine For Stainless Steel
Marking Area: 40x80mm Parts Supplier: MicroEmbedde,Leadshine,Hengfu,Meanwell,Liyang,Mac
Repeat Accuracy: 0.02-0.04mm
High Light:

dot peen marking systems

,

dot peen engraving machine

Metal Portable Dot Peen Marking Machine For Dot Matrix 2D Codes


Principle:



control steel needle in two dimensional plane by software by computer
The stroke movement and the high frequency shock movement of the steel needle with the compressed gas.
To form a standard, beautiful character pattern on the tagged object


Application:

The pneumatic portable marking machine is mainly applied to valves, machinery, automobiles, motorcycles, aerospace, electronics, military industry, light industry and other fields, and can print parts and components of steel, iron, copper, aluminum and plastic products.Metal Portable Dot Peen Marking Machine PMK-G01 For Dot Matrix 2D Codes
Portable Dot Peen Marking Machine parameter

model Pneumatic marking machine
weight 20kg
Machinpower <300w
Power supply 220v/110v
Strokefre quency 300times/s
Marking speed 2-5 characters(2x2mm)/s
Marking depth 0.01 to 1mm (Vary to the material)
Standard marking area 80x40mm,130x30mm,140x80mm,200x200mm



Usage method



When entering the system, the motor does not move.
When it is confirmed that the power indicator light of the control box is bright and the motor does not move when entering the system, it can be checked from several aspects at this time.
1, confirm the control box to the marking head between the 19 core cable is properly connected, without damage phenomenon and extrusion, and the aviation plug has tightened;
2, confirm the computer to 25 pin data cable connection between the control right, and tighten the;
4, open label head shell, check the motor line is connected firmly, if broken, without damage phenomenon and extrusion;
5, check the gear shaft and the motor is stuck, unable to move
6, open the control box, observe whether the power indicator on the motor driver is bright, and which lamp on the drive is not bright, which drive is damaged. After replacement, the trouble can be eliminated. "


Product features


Light weight and beautiful appearance. For the manufacturers of printing large items, this machine and cheap and flexible is the first choice to improve the quality of your products.



FAQ

Do you have a material report and a qualification certificate
Our company has made international certification, such as ISO9001, TUV, CE, and so on last year. Our quality is absolutely in line with international standards. Welcome to our company to visit and visit.


Design feature


 Marking style diversity: fixed characters, serial number, date, time, VIN, arbitrary rotation angle, fan-shaped and print barcode scanning.
The typeface of the print is optional, the word direction, the word width, the word interval, can be adjusted arbitrarily.


Function

The print position is adjustable, and the print content can be moved to the corresponding position quickly and accurately through the software preview and position alignment.

After service

Free training for Machine daily maintnce and cleaning

Packing and shipping

Packing by corrugated board boxes, Light weight, freight is lower,shipping by air.

Delviery time 7-15 working days
Type of shipping Express,air or sea
Terms of payment T/T,credit card,,paypal
package size 45*45*55cm
Gross weight 22KG



Chuke Factory

Chongqing CHUKE Intelligent Machinery Equipment Co., Ltd. is a famous brand of Chinese marking machine. The purple Xu Machinery Factory is one of the largest marking production bases in China. The company is located in Beibei District of Chongqing, founded in 2006. In addition to the production of pneumatic marking needle, the company also independently developed the laser marking machine, pneumatic marking machine, electric marking machine, and its accessories.
The purple Xu Machinery Factory is a company which integrates technology, industry and trade. The company has more than 60 production and sales personnel, 10 professional and technical workers, the company occupies 3000 square meters, has large production equipment, marking machine design, manufacturing, quality inspection, performance testing has strong technical strength and production capacity.
All kinds of professional and technical elites, with the leading technology force of the marking machine, make every marking machine achieve fine, fine and new standard. In the past 10 years, we only do one thing, focusing on the production of marking machine and its accessories. is a famous brand of Chinese marking machine. The purple Xu Machinery Factory is one of the largest marking production bases in China. The company is located in Beibei District of Chongqing, founded in 2006. In addition to the production of pneumatic marking needle, the company also independently developed the laser marking machine, pneumatic marking machine, electric marking machine, and its accessories.
The purple Xu Machinery Factory is a company which integrates technology, industry and trade. The company has more than 60 production and sales personnel, 10 professional and technical workers, the company occupies 3000 square meters, has large production equipment, marking machine design, manufacturing, quality inspection, performance testing has strong technical strength and production capacity.
All kinds of professional and technical elites, with the leading technology force of the marking machine, make every marking machine achieve fine, fine and new standard. In the past 10 years, we only do one thing, focusing on the production of marking machine and its accessories.
