Product Details:
Payment & Shipping Terms:
|
Name: | Mini Metal Laser Engraving Machine | Color: | Blue |
---|---|---|---|
Service: | Free For Users To Debug And Open | Language: | Minimum Character:0.15mm |
Brand: | JPT | ||
High Light: | small laser marking machine,portable laser marking machine |

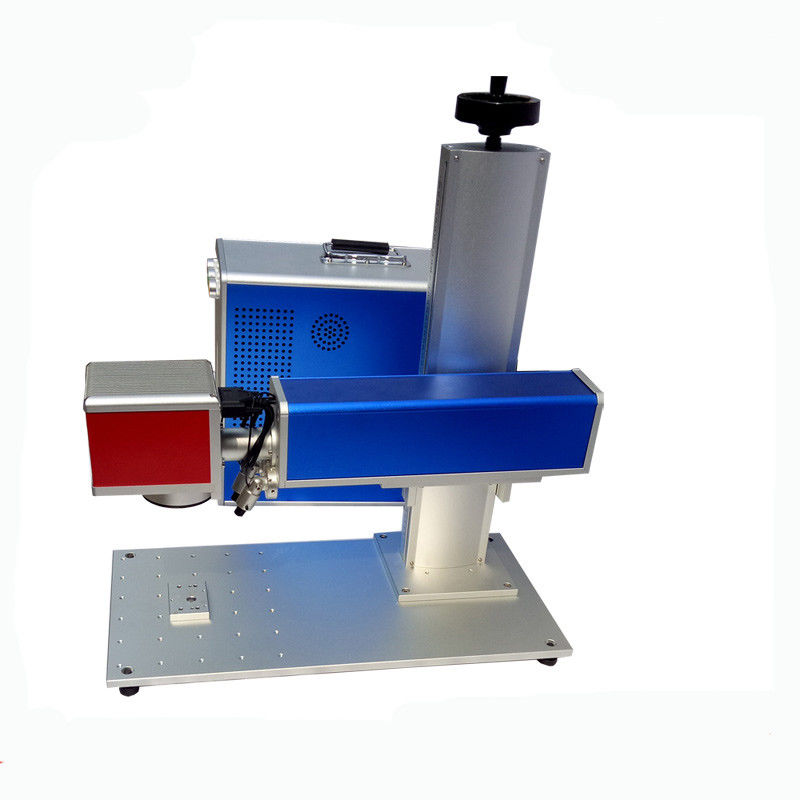

Low Cost Fast Speed Marking Mini Metal Laser Engraving Machine
Principle
Fiber laser marking machine is the use of laser beam in a variety of material surface marked with a permanent mark, through the light can burn some of the material, showing the desired etching patterns, text, bar codes and other graphics
Application:
Hardware industry, wrenches, measuring tools, sanitary ware, stainless steel tableware, medical equipment, luggage, purses, gifts industry, there are many, such as metal gifts, wooden boxes, U disk, notebook, , Instrumentation and panel
Parameter
type | Fiber laser marking machine |
Size | 75*55*83cm |
Gross Weight | 75kg |
Laser power | 10/20/30/50 w |
Laser wavelength | 1064nm |
Power supply | 220V±10%/50Hz/4A |
Repeating precision | ±0.002 |
Repeating frequency | ±0.002 |
Marking range | 110x110mm(customize) |
Marking depth | 0.01~1mm |
Marking speed | 7000mm/s |
Minimum character | 0.15mm |
Minimum line width | 0.01mm |
Marking content |
Graphics, text, bar codes, two-dimensional code, date, batch number, serial number |
Usage method
Fiber laser marking machine operation is very simple to use, turn on all the power, open the software on the computer, enter the required marking content, adjust the various parameters, transferred to satisfaction, you can start marking.
Product features
The use of laser processing means, there is no processing force between the role of the workpiece, with no contact, no cutting force, the advantages of small thermal effects, to ensure the original accuracy of the workpiece. At the same time, the material has a wide range of adaptability, can be made in a variety of materials, the surface of a very fine mark and durability is very good
FAQ
1. Laser marking machine why there is no laser output? The first step: check whether the operation laser marking machine error, if so, after the shutdown, re-boot try.
The second step: a serious look at the laser marking equipment What are the exceptions. Abnormal content mainly includes the following: the work of the sound, such as the vibration of the camera sound, control box sound, the device itself, the alarm sounds, and semiconductor laser marking machine chiller alarm sounds; voltage anomalies, simple The use of multimeter to measure the general low voltage, but also can lead to no laser; computer software and computer whether there is poisoning phenomenon, boot slow, and stopped in an interface for a long time after the move.
The third step: in the confirmation of the first two kinds of problems without the premise, open the laser cavity, the use of dimming film, the laser in the open question, look at the laser output laser output. If you have a laser, then the problem is nothing more than the following accessories: galvanometer, beam expander, red beam mirror, field mirror out of the question. If there is no laser then go to the next step.
The fourth step: If the last step is the absence of laser then there are two possibilities, the first is the laser may have problems, and the second is to control the laser signal problems, then this step is to determine the above two possibilities to detect the laser input signal. If the signal is a problem with the laser, if there is no signal then go to the next step.
The fifth step: the last step signal may be the following two problems are possible, first, marking no signal output, the second is the signal output lines have problems, such as broken or bad welding resistance. Then this step is marking the signal output on the lead two lines appear, the use of multimeter test leads two lines have no signal output.
Design feature
The use of high-speed galvanometer scanning system, greatly reducing the delay, to ensure accuracy while improving the marking speed, maintenance-free operation
Function
Portable marking machine, compact structure, small size, easy to carry, air-cooled, no supplies, maintenance-free, low cost, this series uses the most advanced software and hardware, marking speed, high precision, long working performance stable
After service
1.3 year guarantee,providing free technical support.
2.During the warranty period, Warranty period, the required parts after the non-human damage free replacement,the freight is borne by us.
3.Machine has been adjusted before delivery, operation instructions is included in the delivery. If there is any other questions, pls kindly tell us.
Packing and shipping
Packing in wooden case,5*55*83cm The machine gross is 1-188KG, you can use express delivery. If more than 75KG, you can choose sea transportation.
Delviery time | 7-15 working days |
Type of shipping | Express,air or sea |
Terms of payment | T/T,credit card,,paypal |
package size | 75x55x83cm |
Gross weight | 75KG |
Chuke Factory
Chongqing Chuke Intelligent Machinery &Equipment Co.,Ltd
, Chongqing chuke is the subsidiary of Zixu Machinery Plant, the company is a design, development, manufacture and sale of machinery and equipment and spare parts import and export enterprises, the company has the right to import and export, professional Engaged in the research and development of marking machine products production and sales, the company has introduced foreign mark the industry's advanced manufacturing technology combined with the actual domestic marking, is committed to providing a broad range of industrial manufacturing and processing of marking solutions, while independent research and development and Manufacture of various fiber laser marking machine, laser inkjet printer, CO2 laser marking machine, laser engraving machine, laser welding machine, laser cutting machine, pneumatic marking machine, electric marking machine, portable marking machine, automobile and motorcycle parts Dedicated marking machine, Kezi Ji, manual nameplate imprinting machine, electro-corrosion marking machine, inkjet machine and marking machine spare parts. It is a comprehensive large-scale company marking a one-stop solution for equipment. The company's own brand - ZIXu, has a large number of laser marking series of products, marking the scale industry reputation. Beibei District of Chongqing export enterprises. In order to better do a good job of products and services, the company's products through the EU CE certification and exports to the United States FDA certification. Products have passed ISO9001 international quality system certification, this year by Alibaba British Rhine depth audits
