Serial Number Industrial Dot Peen Machine For Marking Mechanical Parts


Principle:

Through the Chinese characters to be printed, the contents of the graphics input to the computer, computer marking software to change the content of digital control signals transmitted to the controller to drive the print on the workpiece made of a continuous dot matrix characters and graphics; needle in the X -Y Two-dimensional plane according to the trajectory of the set movement, while the print pin under the action of compressed air in the workpiece surface to print a dense lattice composed of concave marks.

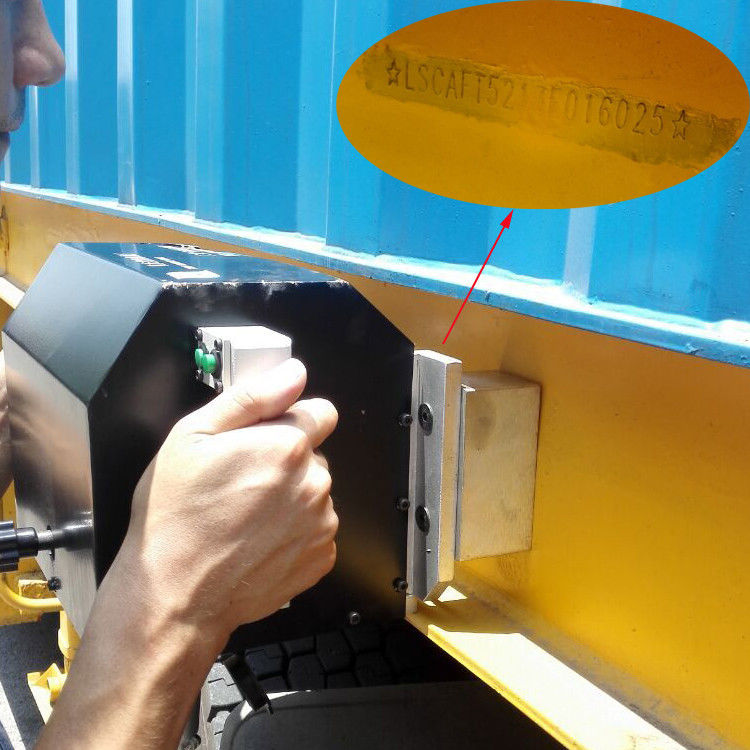

Portable pneumatic marking machine
Portable pneumatic marking machine (4 photos)
Pneumatic marking machine is the advantage of high-hardness metal through dot matrix to achieve online printing

Application:

Automobiles, motorcycles and other engines, pistons, body, frame, chassis, connecting rod, engine, cylinder and other parts number, name, trademark, date of production printing;
Portable Dot Peen Marking Machine parameter



Usage method

⑴ connected to air;
⑵ adjust the pneumatic duplex, the pressure is 0.2-0.4Mpa; ⑶ open the total power supply;
⑷ start the computer, in accordance with the computer prompted to enter the working state of marking; ⑸ open the control box power, the manual / automatic key placed in the "automatic" state;
Edit the marking file contents according to the software manual. Shut down: ⑴ off the computer; ⑵ off control box power; ⑶ cut off the total power supply; ⑷ cut off the gas source. "
Product features

Reserved I / O interface, according to customer needs to install automatic clamping device to improve work efficiency, improve the drawing editor, the needle and data checking function, fully meet the IS09001-9002 quality system certification of product labeling, traceability Claim.

FAQ

1. How to choose a suitable marking machine? Identify the product material, general metal pneumatic marking machine, fiber laser marking machine, individual rigid plastic can also be used pneumatic marking machine, but to take into account the thickness of the product. Non-metallic (such as ceramics, synthetic materials, rubber leather, paper, vernier caliper) CO2 laser marking machine.

Design feature

The basic configuration consists of computer, display, control box, marking machine host. 2,1 host: the host includes two-dimensional, Z axis, marking head, air pressure regulator.

a two-dimensional is step-driven X, Y movement mechanism, under the control of the computer and controller by character and graphics trajectory;

b, Z axis is a manual lifting mechanism for adjusting the distance between the needle and the workpiece; c, the marking head is a needle vibration mechanism, including the needle, spring, seal;

d, air pressure regulator is used to supply pressure to make the needle vibrate, and can adjust the impact of the needle. "

Function

Pneumatic marking machine has the advantage of markings can be deep, shallow, whether it is graphics, text, product serial numbers, trademarks, marking a permanent permanent mark, in general, marking the workpiece less than about 1600 (10 A 5mm high character calculation), can choose pneumatic marking machine.

After service

A: How to install and run the machine?
Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
B:How can I do if the machine goes wrong?
If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

Packing and shipping

Packing in carton case,45*45*55cm The machine gross is 1-75KG, you can use express delivery. If more than 75KG, you can choose sea transportation.
