Label High Efficiency Industrial Laser Marking Systems FLMM-B01 FDA Certification

China Label High Efficiency Industrial Laser Marking Systems FLMM-B01 FDA Certification supplier

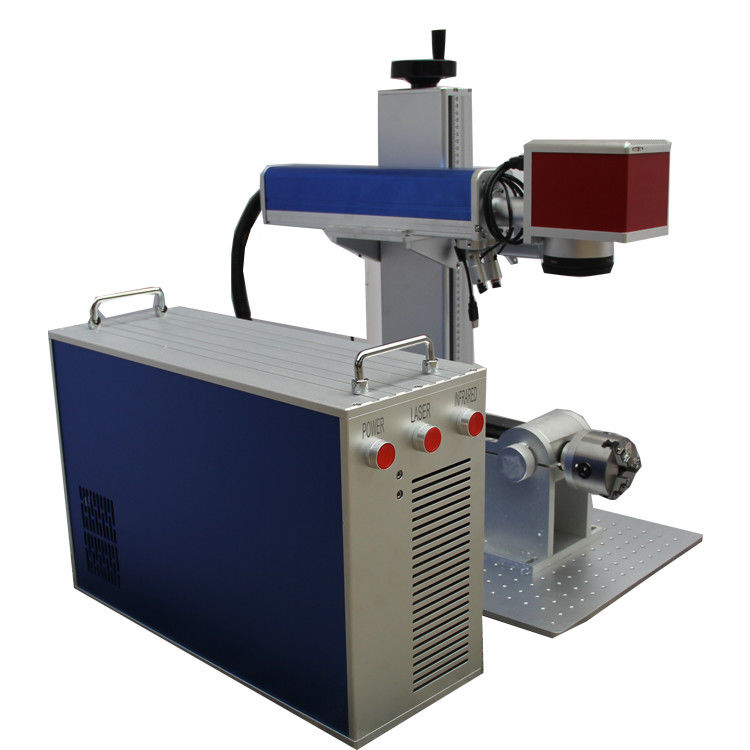

Large Image :  Label High Efficiency Industrial Laser Marking Systems FLMM-B01 FDA Certification

Product Details:

Place of Origin: China(mainland)
Brand Name: Chuke
Certification: ISO,CE,FDA
Model Number: FLMM-B01

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD 4000-6500 per sets
Packaging Details: Packing in wooden case,75*55*83cm
Delivery Time: after payment 7-15 working days
Payment Terms: L/C,D/A,D/P,T/T,,MoneyGram,Paypal
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Name: Metal Fiber Laser Marking Machine Color: Blue
Applicable Material: Metal Repeating Precision: ±0.002
Marking Depth: 0.01~1mm Minimum Character: 0.15mm
Laser Source: Raycus Laser Source Laser Power: 20wat
Marking Speed: 0-7000mm/s Control Interface: Standard USB Port
High Light:

industrial laser marking equipment

,

metal marking equipment



Label High Efficiency Marking Industrial Laser Marking Systems

Metal Marking Machine Application:



Principle



Fiber laser marking machine is the use of laser beam on a variety of different material surface marked with a permanent mark. Marking effect is through the evaporation of surface material to reveal the deep material, or through the light can lead to physical changes in the surface material and "engraved" out of traces, or by burning some of the material to show the desired etching pattern , Text, bar codes and other graphics.



Appliance



Metal Marking Machine samples

Fiber laser marking machine has been widely used in electronics, plastics, packaging, building materials, lighting, trinkets, cosmetics and other industries, no supplies, no pollution.



Metal Fiber Laser Marking Machine parameter



type  Metal marking machine
Size 75*55*83cm
Gross Weight 75kg
Laser power 10/20/30/50 w
Laser wavelength 1064nm
Power supply 220V±10%/50Hz/4A
Repeating precision ±0.002
Repeating frequency ±0.002
Marking range 110x110mm(customize)
Marking depth 0.01~1mm
Marking speed 7000mm/s
Minimum character 0.15mm
Minimum line width 0.01mm
Marking content

Graphics, text, bar codes, two-dimensional code,

date, batch number, serial number





Usage method



Fiber laser marking machine operation is very simple to use, turn on all the power, open the software on the computer, enter the required marking content, adjust the various parameters, transferred to satisfaction, you can start marking.



Product features



Laser processing and the traditional processing methods are different, laser processing need to process the surface of the material itself to be able to absorb the laser wavelength, in order to carry out processing, while the traditional processing is no such requirements. However, laser processing does not require consumables, it will not cause distortion of the product deformation, processing time using a computer to control the operation of flexible.





FAQ



1. The scope of application? For non-metallic materials such as metal 2. Focusing is like? Support red positioning, focusing 3. Lens range 100x100mm / 150x150mm / 300x300mm optional



Design feature



Support automatic encoding, printing serial number, batch number, date, bar code, two-dimensional code, automatic jump number, supports a variety of commonly used graphic file formats such as PLT, DXF, AI, DST, BMP, JPG, etc.



After service



After-sale service
1.3 year guarantee,providing free technical support.
2.During the warranty period, Warranty period, the required parts after the non-human damage free replacement,the freight is borne by us.

Label High Efficiency Industrial Laser Marking Systems FLMM-B01 FDA Certification
3.Machine has been adjusted before delivery, operation instructions is included in the delivery. If there is any other questions, pls kindly tell us.





Packing and shipping



Packing in wooden case,75*55*83cm The machine gross is 1-188KG, you can use express delivery. If more than 75KG, you can choose sea transportation.



Delviery time 7-15 working days
Type of shipping Express,air or sea
Terms of payment T/T,credit card,,paypal
package size 75x55x83cm
Gross weight 75KG





Chuke Factory



Chuke Intelligent Machinery & Equipment Co., Ltd specializes in the development and production of pneumatic marking machine, pneumatic marking machine parts, pneumatic marking needle. R & D and production of marking needle sales 11 years, is the earliest production marking needle manufacturers. Marking needle production from the ordinary lathe equipment to fully automatic CNC equipment, marking needle technology is the beginning of several processes, and now has a fully automated equipment, a process is completed, fully guaranteed product quality, accuracy, concentricity and yield issues. So purple Asahi marking needle has been fully able to meet the various types of marking machine needs. Has been throughout the country and the world. Market share of 70%. Chuke is the real marking needle experts.
