Product Details:
Payment & Shipping Terms:
|
| Marking Frequency: | 300times/s | Marking Material: | Normal Below HRC60,Hard Material Below HRC90. |
|---|---|---|---|
| Controller: | 7"LCD Touch Screen Controller/window 7 Windows XP | Marking Directions: | Horizontal,gradient,flat,circular Arc Surface |
| Service: | Shipping：express And By Sea | Product Name: | Serial Number Industrial Peening Machine For Marking Mechanical Parts |
| Machine Tech Supply: | Free For Users To Debug And Open | Advantage: | OEM |
| Marking Deepth: | 0.01-1mm(vary To Material) | Voltage: | 110V/220V |
| High Light: | dot peen engraving machine,portable dot peen marker |
||

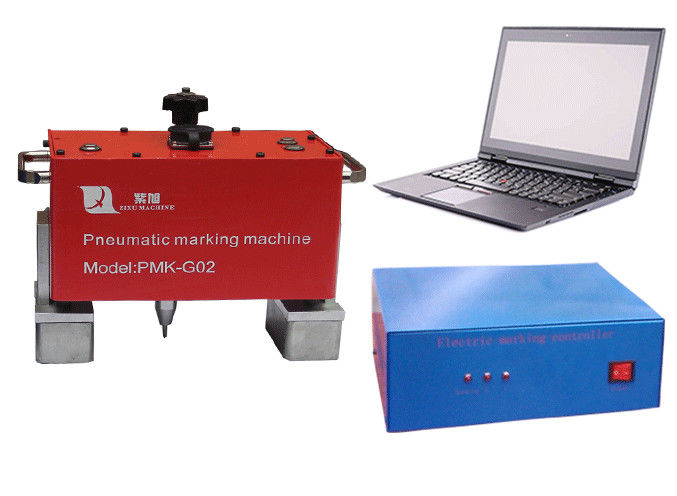

Peen Marking Machine Double Handheld Model Marking Motorcycle Parts
Principle:
software technology can be used to send network data to the marking machine
WINDOWS software technology can be used to generate common software files through the computer and a variety of computer peripherals sent to the marking machine
Use dedicated software on the computer equipped with marking machine to arrange the graphic and text symbols that need to be marked on the part
The computer will edit the marking files generated digital signal sent to the marking machine
Marking machine control system sends the control signal sent by the computer to the stepper motor or servo motor
Steel needle in the workpiece surface according to a predetermined trajectory processing scored graphics and characters
Application:
Electric cars, bicycles, motorcycles and other plus frame printing, printing of various products, vehicles, equipment, products, signs.
Portable Dot Peen Marking Machine parameter
| model | Pneumatic marking machine |
| weight | 20kg |
| Machinpower | <300w |
| Power supply | 220v/110v |
| Strokefre quency | 300times/s |
| Marking speed | 2-5 characters(2x2mm)/s |
| Marking depth | 0.01 to 1mm (Vary to the material) |
| Standard marking area | 80x40mm,130x30mm,140x80mm,200x200mm |
Usage method
Check the power, cable, trachea connection, after confirmation of correct power, gas source, according to the software manual editing marking the contents of the file.
Product features
⑴, print content: Chinese and English characters, Arabic numerals, special characters, graphics and so on.
⑵, can be fixed characters, serial number, VIN, time, date and two-dimensional code mark. ⑶, print automatically stored, you can query, statistics, print the report.
⑷, the hardness of not more than HRC63 mark a variety of materials for printing.
FAQ
1 electric marking machine print speed and depth can reach how much?
Print speed is 3-8 characters mm / s, depth can reach 0.01-1mm
2. Reset function how?
Set the number of reset function, each marking without zero-return detection, and can be positive and negative sequential marking greatly save time and improve efficiency
Design feature
The three switches (X + / X - switch, Y + / Y - switch, needle / stop switch) can only work when the manual / automatic switch is switched to manual mode; manual mode is used to test whether the system is normal; b. / X-switch control marking head in the X-axis movement in both directions; c, Y + / Y- switch control marking head in the Y-axis movement in both directions; d, needle / stop switch manual control needle vibration.
Function
Pneumatic marking can also be easily integrated in the industrial production line, our marking head is designed to be small, strong, easy to install.
After service
A: How to install and run the machine?
Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
B:How can I do if the machine goes wrong?
If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Packing and shipping
Packing in carton case,45*45*55cm The machine gross is 1-75KG, you can use express delivery. If more than 75KG, you can choose sea transportation.
| Delviery time | 7-15 working days |
| Type of shipping | Express,air or sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 45*45*55cm |
| Gross weight | 22KG |
Chuke Factory
Chuke is a famous brand of marking machine in China. Zixu Machinery Factory is one of the largest production bases for marking needles in China. The company is located in Beibei District, Chongqing City and was established in 2006. In addition to producing pneumatic marking needles, the company also autonomously R & D laser marking machine, pneumatic marking machine, marking machine, and its accessories.
Purple Asahi Machinery Factory is a technology, industry and trade companies, enterprises contract and keeping promises. The company's existing production and sales of more than 60 people, 10 were in professional and technical workers, the company occupies 3,000 square meters, with large-scale production of complete sets of equipment, marking machine design, manufacture, quality inspection, performance testing with strong technical force and production capacity.
Set all kinds of professional and technical elite, with the marking machine industry-leading technical force, purple Xu so that each marking machine to do fine, fine, new standards, only one thing to do 10 years, focusing on marking machines and The production of its accessories. "
