0.5MM Metal Marking Machine Depth Model Numberlaser Engraving Equipment

China 0.5MM Metal Marking Machine Depth Model Numberlaser Engraving Equipment supplier

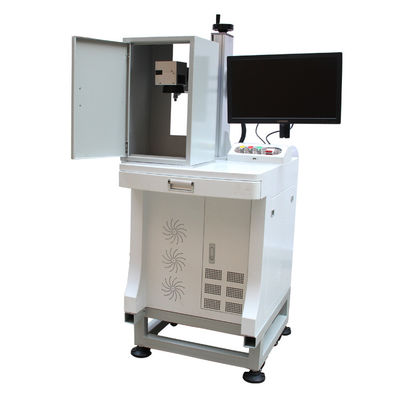

Large Image :  0.5MM Metal Marking Machine Depth Model Numberlaser Engraving Equipment

Product Details:

Place of Origin: China,Chongqing
Brand Name: Chuke
Certification: CE,FDA,ISO9001
Model Number: FIMM-A01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 3500-9500/Set
Packaging Details: 95x81x122cm wooden case
Delivery Time: 3-8 days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Laser Power: 50W Laser Brand: IPG
Application: Auto Parts Application Material: A Variety Of Steel Materials
Marking Speed: 7000mm/s Service: Free For Users To Debug And Open
Support Graphics Formates: Shift Codes
High Light:

industrial laser marking equipment

,

laser marking device

Marking 0.5Mm Depth Model Numberlaser Engraving Machine For Metal



Working principle



Laser marking is based on the interaction between the focused beam output from the laser and the target object, so as to form high quality markers on the target object. The schematic diagram of a typical laser marking machine is given. The beam output from the laser is controlled by two mirrors mounted on a high speed precision motor to achieve the beam's motion marking. Each mirror moves along a single axis. The motion of the motor is very fast, and the inertia is very small, so that the target can be marked. The beam guided by the mirror is focused by the F- theta lens and the focus is on the marked plane. When the focused beam interacts with the labeled object, the object is "marked". The other surfaces of the object remain unchanged except for the position of the marking.



Fiber laser marking machine parameter

Laser power

10W/20/30/50W
Laser Wavelength 1064nm
Light beam quality <2
Repeating precision ±0.002
Marking range 110x110mm(customize)
Marking depth 0.01~1mm
Marking speed 7000mm/s
Minimum character 0.15mm
Minimum line width 0.01mm
Repeating frequency 20KHz~30KHz
Marking content

Graphics, text, bar codes, two-dimensional code,

date, batch number, serial number

Graphic format supported bmp,png,ai,dxf,dst,plt



220V±10%/50Hz/4A
Size 570mmx270mmx200mm
Gross Weight 135kg
Control interface standard USB port
Laser module life 100000~200000 hours





Application

Fiber laser marking machine marking sample

laser marking machines handle nearly every industrial marking and DPM (Direct Part Marking) task. Metals, plastics, etc. are processed efficiently and contact-free. All desired contents are applied repeatedly accurate and reliably: 2D and alphanumeric codes, simple serial numbers, complex logos, graphics, structures. Depending on the material and application task, the process is laser marking, engraving or deep engraving.

Usage method

First, turn on the total power, open the computer, laser, red light, import the pictures into the software, machine supports JPG, BMP, GIF, tga.png, TIF, TIIF and other pictures. Click the red light, adjust the size of the picture on the workpiece, adjust the power, and then mark it.



Product features

Fiber laser marking machine with marking accuracy, do not need to touch the surface of the object, the marking is not easy to friction, processing efficiency, but also has the characteristics of security, and its unique form of processing is more for the present processing Creative. These features are traditional silk screen and Pen Maji can not be achieved. Mini laser marking, ultra-small size, light weight, easy to carry, is your best choice



.

FAQ



not in the complete set of laser machine:
1) Computer system unit with a monitor (specify the computer settings)
We can use the laptop.Or you need the desktop computer?The desktop computer have the
Monitor.
2)Laser control unit
The machine is 20w Raycus laser source
3)Power supply
Have power supply
4)Laser head
Have the laser head
5)Control panel
JCZ card
6)Desktop with a level
Yes.It is have
7)Working lifting and lowering platform
It is have

8)Port for rotary device



Design feature



The desktop fiber laser marking machine is designed by desktop integrated structure. It is a new generation of laser produced by our advanced laser technology in the world.
Marking machine system. The optical fiber laser is used to output the laser, and then the marking function is realized by the high-speed scanning mirror system. High efficiency of electro-optic conversion in optical fiber laser marking machine
The mode is cool, the whole machine is small, the output beam quality is good, and the reliability is high. Engraving metal materials and some nonmetallic materials. Optical fiber laser is integrated with integral whole junction
Structure, no optical pollution and power coupling and loss, air cooling, high efficiency, long life and less maintenance.





Packing and shipping



How long is the delivery time?
For the fiber laser marking machine, the delivery time will be 3-5 days .The normal package is wooden box(Size: L*W*H),It also changes from the size of machine ,We can delivery the machine by express,air or by sea



Aftersale service



We will send you the English manual and CD video for machine using and maintaining with machine.
If you still have some doubts, we can talk by telephone or skype.
Our engineer can also be sent to your country to install or adjust machine if necessary.
