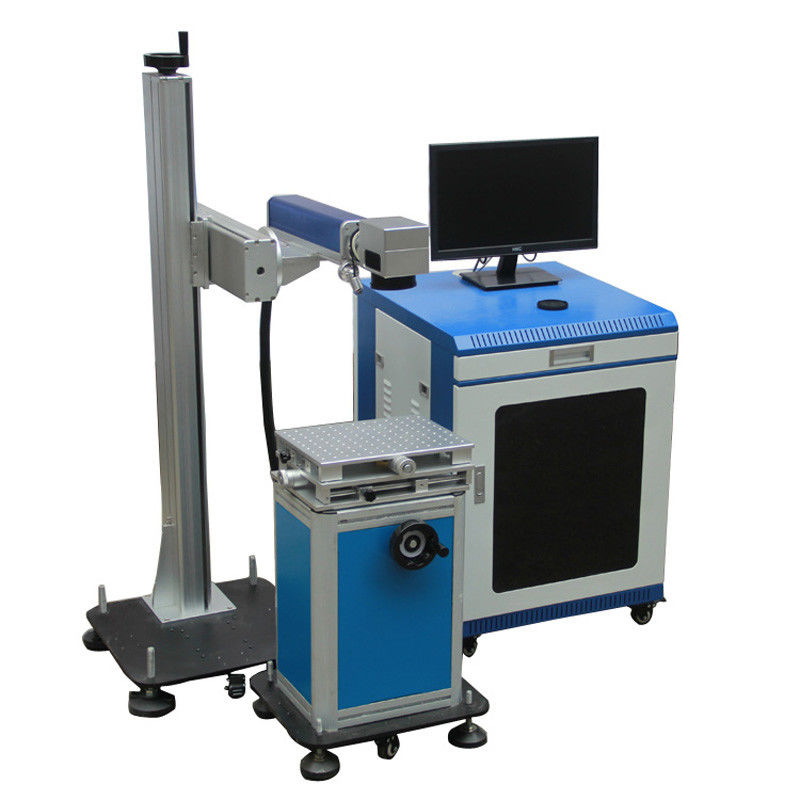

Acrylic Laser Engraving Machine Lpg Laser Source Guarantee ISO9001 Certification

Three Years Ipg Laser Source Guarantee Acrylic Laser Engraving Machine

Working principle

Laser is generated by high-intensity emission electron ionization of rare earth elements to produce a laser beam, laser conduction through the fiber optic transmission line refers to the laser galvanometer, galvanometer is like a pendulum needle, the beam in the X and Y directions, through the laser in the metal Surface to form a certain pattern of walking.

Fiber laser marking machine parameter

Application

Fiber laser marking machine marking sample

The current laser marking machine is mainly used in some applications require more sophisticated, higher accuracy of the occasion. Used in electronic components, integrated circuits (IC), electrical appliances, mobile communications, metal products, tool accessories, precision instruments, glasses watches and clocks, jewelry accessories, auto parts, plastic buttons, building materials, PVC pipe.

Usage method

Marking test and print location
1, on the workbench or production line, place a test piece with the same height as the marking work piece (it is better to choose the marked work piece as the test piece), and confirm that the test piece is indeed stable;
2, through the operation of marking control software for marking.

Product features

Laser wavelength: 1064nm
Beam quality M2: <1.4
Laser repetition frequency: ≤100kHz
Standard engraving range: 110mm × 110mm
Optional carving range: 70mm × 70mm / 110mm × 110mm / 175mm × 175mm / 220mm × 220mm
Carving depth: ≤ 0.3mm (depending on the material)
Engraving speed: ≤ 8000mm / s
Line width: 0.01mm
Character: 0.2mm
Repeatability: ± 0.001mm
Machine power: ≤ 300W
Power demand: 220V / single phase / 50Hz
Ambient temperature requirements between 5-35 ℃, requiring air conditioning.
Humidity requirements of 40% -80%. No condensation, dehumidifier should be installed. "

.

FAQ

Laser marking laser output power is normal, but the laser beam can not play the role of marking:

① optical system adjustment is accurate;

② whether the acousto-optic switch can play the role of switch;

③ D / A card control sound and light output signal reaches 5V

Design feature

Laser marking effect according to the power and marking speed can vary from silver to light black to black. Want to play a silver effect, the case of 20W fiber, marking speed should be set to 1000-2000mm / s, marking power is set to 30-60%. As the power increases and the marking speed decreases, the marking effect will slowly turn gray and finally to black. If you want to play a black effect marking speed needs to be adjusted to 100-200mm / s, marking power needs to be adjusted to 85-95%. Want to know more about other material marking effects and parameters? Quickly contact purple Xu machinery! 10 years of supporting the marking industry experience, we have a wealth of data for you!

Product features

Laser marking effect according to the power and marking speed can vary from silver to light black to black. Want to play a silver effect, the case of 20W fiber, marking speed should be set to 1000-2000mm / s, marking power is set to 30-60%. As the power increases and the marking speed decreases, the marking effect will slowly turn gray and finally to black. If you want to play a black effect marking speed needs to be adjusted to 100-200mm / s, marking power needs to be adjusted to 85-95%. Want to know more about other material marking effects and parameters? Quickly contact purple Xu machinery! 10 years of supporting the marking industry experience, we have a wealth of data for you!

Packing and shipping

the technical department responsible for the development of standard packaging specifications according to customer requirements. 2, the production department responsible for the circulation of products in the packaging method of the specific implementation. 3, Management Department responsible for the transport of products.

Aftersale service

Purple Asahi laser adhere to customer-centric, for your company to provide a sound installation, commissioning, training, maintenance and other pre-sales and after-sales service.

Pre-sale services: Before signing the contract, the company provides customers with a variety of production processes, technical advice to provide marking machines, sample samples, equipment selection and pricing services.After-sales training: The company provides free technical training, you can buy on-site training, video training can also be carried out. "
