Home ProductsMini Laser Marking Machine

7000MM Speed Portable Mini Laser Marking Machine For Aluminum Model Number

Good quality Fiber Laser Marking Machine for sales
Good quality Fiber Laser Marking Machine for sales
We bought the laser marking machine.it is good quality. Hope CHUKE have the good bussiness all the time

—— Alfanar Electrical System

We bought the laser marking machine.it is goog quality. Hope CHUKE have the good bussiness all the time

—— Alfanar Electrical System

Chuke have been working with us for over 10 years. They provide us with accessories for marking machines, so that our machines sell well in India.

—— EtchON Marks Control

We have already bought second laser marking machines at the beginning, which is compatible with our assembly line operation, fully automated marking, fast, safe and efficient marking.

—— Ford Company

I'm Online Chat Now

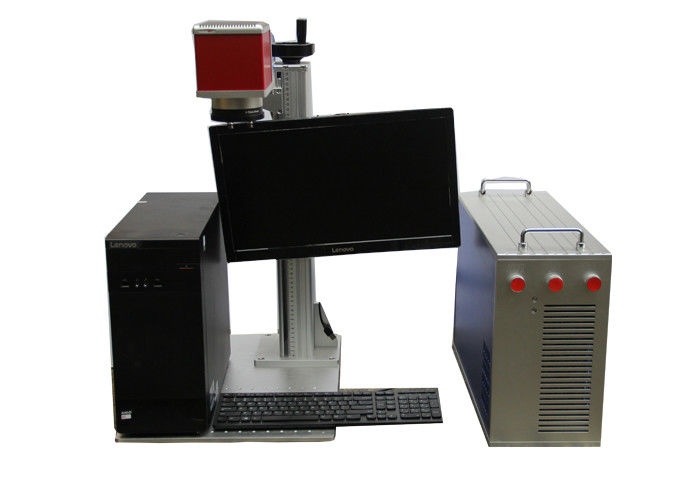

7000MM Speed Portable Mini Laser Marking Machine For Aluminum Model Number

China 7000MM Speed Portable Mini Laser Marking Machine For Aluminum Model Number supplier

Large Image :  7000MM Speed Portable Mini Laser Marking Machine For Aluminum Model Number

Product Details:

Place of Origin: China(mainland)
Brand Name: ZIXU
Certification: ISO,CE,FDA
Model Number: FLMM-B01

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD 4000-6500 per sets
Packaging Details: Packing in wooden case,75*55*83cm
Delivery Time: after payment 7-15 working days
Payment Terms: L/C,D/A,D/P,T/T,,MoneyGram,Paypal
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Name: Mini Fiber Laser Marking Machine Color: Red
Laser Source: Super Laser Used Industry: Metal Gift
Applied Materials: Stainless Steel, Copper Packing Size: 75*55*83cm
High Light:

portable laser marking machine

,

small laser engraving machine



7000Mm Marking Speed Portable Laser Marker For Aluminum Model Number





Principle



Laser marking is based on the interaction between the focused beam output from the laser and the target object, so as to form high quality markers on the target object. The schematic diagram of a typical laser marking machine is given. The beam output from the laser is controlled by two mirrors mounted on a high speed precision motor to achieve the beam's motion marking. Each mirror moves along a single axis. The motion of the motor is very fast, and the inertia is very small, so that the target can be marked. The beam guided by the mirror is focused by the F- theta lens and the focus is on the marked plane. When the focused beam interacts with the labeled object, the object is "marked". The other surfaces of the object remain unchanged except for the position of the marking.





Application:



laser marking machines handle nearly every industrial marking and DPM (Direct Part Marking) task. Metals, plastics, etc. are processed efficiently and contact-free. All desired contents are applied repeatedly accurate and reliably: 2D and alphanumeric codes, simple serial numbers, complex logos, graphics, structures. Depending on the material and application task, the process is laser marking, engraving or deep engraving



7000MM Speed Portable Mini Laser Marking Machine For Aluminum Model Number



Parameter



type Fiber laser marking machine
Size 75*55*83cm
Gross Weight 75kg
Laser power 10/20/30/50 w
Laser wavelength 1064nm
Power supply 220V±10%/50Hz/4A
Repeating precision ±0.002
Repeating frequency ±0.002
Marking range 110x110mm(customize)
Marking depth 0.01~1mm
Marking speed 7000mm/s
Minimum character 0.15mm
Minimum line width 0.01mm
Marking content

Graphics, text, bar codes, two-dimensional code,

date, batch number, serial number





Usage method



First, turn on the total power, open the computer, laser, red light, import the pictures into the software, machine supports JPG, BMP, GIF, tga.png, TIF, TIIF and other pictures. Click the red light, adjust the size of the picture on the workpiece, adjust the power, and then mark it..





Product features



A part of the logo brand or brand is registered by the relevant government departments in accordance with the law, which is called "trademark". The trademark is protected by the law, and the registered person has the special right. The famous trademarks in the international market are often registered in many countries. The registered trademark is a trademark protected by the law after the registration of the relevant government departments, and the unregistered trademark is not protected by the trademark law. With a trademark, you can shape the image. The laser marking machine can mark the product on the product, expand the reputation of the enterprise and increase the enterprise's type of property.





FAQ



As a person who has just known or exposed to laser equipment, laser equipment is difficult to start with, and these are only your initial impressions. Laser marking machines, all automatic machines, do not need too complex operations to carry out, laser equipment only need systematic operation and simple mouse click.



Packing and shipping



How about the packaging?
Firstly, Packed the fiber laser machine with plastic sheet for clearing and damp proofing.
Secondly, Then put the fiber laser machine in the plywood case for safety and clashing.
Thirdly, Transport the plywood case into the container. We can delivery the machine by express,air or by sea



Delviery time 7-15 working days
Type of shipping Express,air or sea
Terms of payment T/T,credit card,,paypal
package size 75x55x83cm
Gross weight 75KG



After service



if some problems happened to this machine during warranty period, what should i do?
We will supply free parts for this machine during the warranty period if machine have any problems.
We also supply free afterservice forever.
So any doubts, just let us know, we will give you solutions within 30 min.



Chuke Factory



hongqing Chuke Intelligent Machinery &Equipment Co.,Ltd is a professional engaged in marking machine design and industrial enterprises. Founded in 2006, covers an area of 2000 square meters. In annual production of 500 sets of laser marking machine, pneumatic and electric marking machine more than 1000 units, marking needle (pneumatic marking needle species of up to more than 100 species) annual output of more than 100 thousand sets.

Since the establishment of our company, the products are loved by countries around the world. Such as the United Kingdom, Spain, France, Germany, the United States, Dubai and Brazil, South Korea and other more than and 30 countries and regions. After we continue to improve and perfect the product quality has been achieved CE, ISO9001, FDA, TUV certificate, won the domestic and foreign large number of customers favor and approval.

More than and 10 years of development, our company has always adhered to the "integrity, quality, innovation, service" concept. Absorb new ideas, strict quality control, a full range of service tracking, adhere to make high-quality products. Now has a group of elite management and a team of high-quality professional and technical team. We take the quality as the life, the time is the prestige, the price is the competitive power management belief, based on the domestic and foreign market.
