FIMM-A01 50W Metal Marking Machine Stainless Steel Material EZCAD Software

China FIMM-A01 50W Metal Marking Machine Stainless Steel Material EZCAD Software supplier

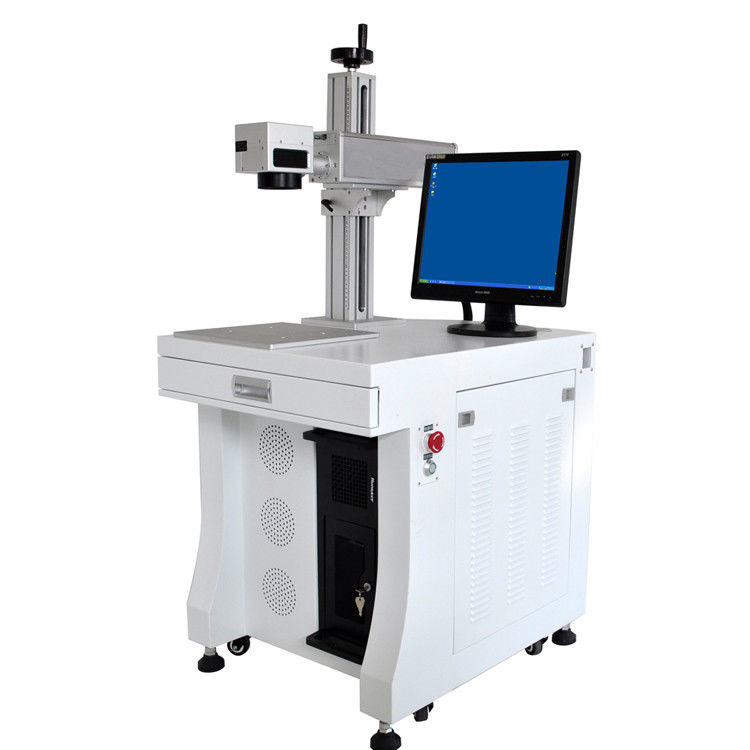

Large Image :  FIMM-A01 50W Metal Marking Machine Stainless Steel Material EZCAD Software

Product Details:

Place of Origin: China,Chongqing
Brand Name: Chuke
Certification: CE,FDA,ISO9001
Model Number: FIMM-A01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 3500-9500/Set
Packaging Details: 95x81x122cm wooden case
Delivery Time: 3-8 days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Application: Household Appliance Industry, Appliance Equipment Application Material: Aluminum, Stainless Steel
Gross Weight: 135kg Service: Thick Wooden Box Packing, Safe And Solid
Support Graphics Formates: Graphics Laser Power: 50W
Software: EZCAD Product Name: Metal Nameplate Laser Marking Aluminum
High Light:

industrial laser marking equipment

,

metal marking equipment

Marking 0.5Mm Depth On Metal Nameplate Laser Marking Aluminum



Working principle



10W, 20W, 30W, 50W optical fiber laser marking machine, using a galvanometer scanner to make the laser offset and movement. The laser beams emitted by lasers are projected onto the first and second galvanometer scanners. They scan the laser beam in two directions of X and Y in the plane. Under the control of the computer, the laser beam will focus on the focusing lens and scan the required content in the plane.



Fiber laser marking machine parameter

Laser power

10W/20/30/50W
Laser Wavelength 1064nm
Light beam quality <2
Repeating precision ±0.002
Marking range 110x110mm(customize)
Marking depth 0.01~1mm
Marking speed 7000mm/s
Minimum character 0.15mm
Minimum line width 0.01mm
Repeating frequency 20KHz~30KHz
Marking content

Graphics, text, bar codes, two-dimensional code,

date, batch number, serial number

Graphic format supported bmp,png,ai,dxf,dst,plt



220V±10%/50Hz/4A
Size 570mmx270mmx200mm
Gross Weight 135kg
Control interface standard USB port
Laser module life 100000~200000 hours





Application

Fiber laser marking machine marking sample

Animals ear is designed specifically for animal husbandry animal identification, which can be a physical ear, but also with the application of electronic earrings can be widely used in animal husbandry management, improve the management of farms, but also for the relevant meat Food tracing, etc. With a metal head, the perfect structure is widely used in animal husbandry. Material composition: ear brand mainly by a non-toxic, environmentally friendly, special materials through injection molding. Usage: The surface of the product can be laser engraved bar code, numbers, figures and so on to livestock numbers and markings, with the use of earrings, ear plugs earnails into the ear tag, make it cast in animal ear.

FIMM-A01 50W Metal Marking Machine Stainless Steel Material EZCAD Software

Usage method

First, turn on the power, turn on the computer, laser, red light, the picture into the software, the machine supports JPG, bmp, gif, tga.png, tif, tiif and other pictures, click the red light, adjust the size of the picture above the workpiece, adjust the power , You can mark.



Product features

The laser engraving machine is the latest laser marking machine with less thermal impact during the process, perfect laser marking effect, fine lines and high processing efficiency.It has more than 2000 laser marking machines and more than 2000 customers all over the world.

.

FAQ



Laser marking machine speed is how much?                                                                                   Laser marking machine speed is very fast, 7000mm / s. Marking 5 characters only 1 second. Many manufacturers are the best choice for efficient marking



Design feature



Imported components from Germany, crafted, first-class quality, global service laser marking machine, solution experts.





Packing and shipping



What’s package?
A: We have 3 layers package. For the outside, we adopt plywood case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic bag. Laser marking machine would be shipped by ocean transportation, air transportation or by express



Aftersale service



1. iGolden provides 12 months warranty for the machine. Warranty starts from receipt of the machine or parts.
2. All extra parts for the machine can be purchased with agent price.
3. Email/ Skype/ Trade manager online to support.
4. Life-long technical support and free after-sale service.
5. Professional technical team and salesperson help you with troubleshooting procedures via Internet and Phone any time when needed.
6. Free and professional training at our factory.
7. Door-to-door service if necessary.





Chuke Factory



Chongqing Chuke Intelligent Machinery &Equipment Co.,Ltd was established in 2006, before I company staff have many years of machining experience, so initially my company is based on the production of marking the needle business , With the customer's demand, our company has gradually realized business expansion. So far the company's technical strength has been in the forefront of domestic counterparts, customized business reached a new level, both the pneumatic marking machine or laser marking machine customers have been Accreditation, marking needle is occupied the vast majority of the domestic market. Our products have been certified by world famous quality system, including: ISO, CE, PDA, TUV and so on. Recently, the company is capturing new technical problems and providing brand new services to customers with higher requirements. Our products are completely free within the warranty period of repair and replacement, the warranty period only charge a cost, at any time to solve the urgent needs of customers, in order to solve customer needs for the purpose. No matter where you are, we can serve you.
