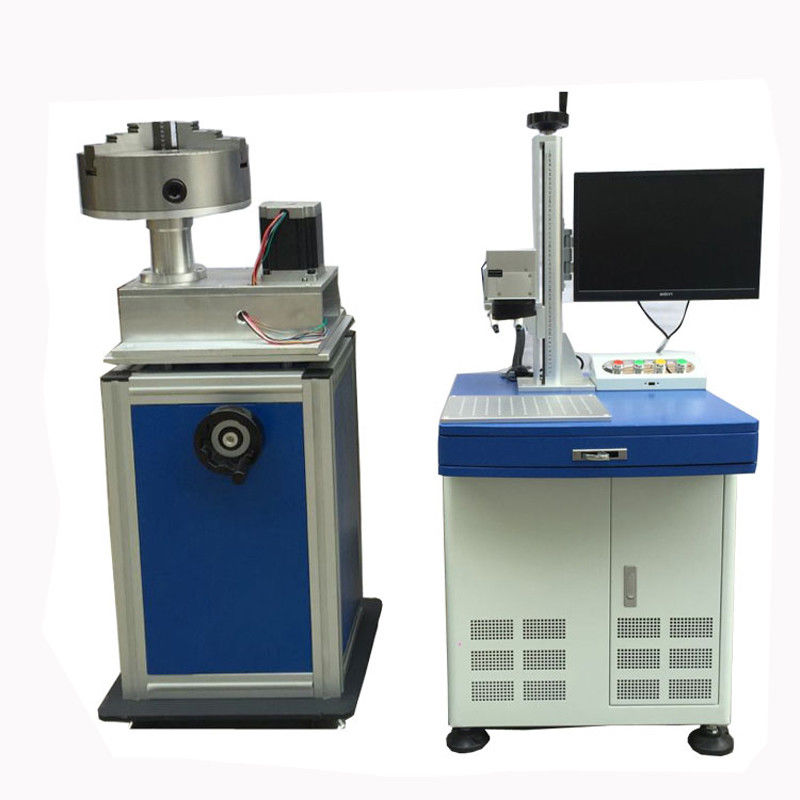

Aluminum Fiber Laser Marking Machine Marking Area 200X200MM Letter

Marking Area 200X200Mm Letter aluminum Laser Engraving Machine

Working principle

Laser is generated by high-intensity emission electron ionization of rare earth elements to produce a laser beam, laser conduction through the fiber optic transmission line refers to the laser galvanometer, galvanometer is like a pendulum needle, the beam in the X and Y directions, through the laser in the metal Surface to form a certain pattern of walking.

Fiber laser marking machine parameter

Application

Fiber laser marking machine marking sample

The current laser marking machine is mainly used in some applications require more sophisticated, higher accuracy of the occasion. Used in electronic components, integrated circuits (IC), electrical appliances, mobile communications, metal products, tool accessories, precision instruments, glasses watches and clocks, jewelry accessories, auto parts, plastic buttons, building materials, PVC pipe.

Usage method

Marking test and print location
1, on the workbench or production line, place a test piece with the same height as the marking work piece (it is better to choose the marked work piece as the test piece), and confirm that the test piece is indeed stable;
2, through the operation of marking control software for marking. "

Product features

Fiber laser marking machine is different from other marking machine Fiber laser marking machine core is the use of fiber lasers, which use a number of small-power air-cooled laser diode as a pump source, after several branches and then coupled to a single input The root laser fiber can be pulsed and connected in series by using rare earth (Nd, Yb, Er) fibers as the laser medium, and reflecting mirrors and fiber gratings as the resonator. The novel fiber laser has single mode output, good heat dissipation characteristics, high power , Compact layout and other characteristics, especially suitable for high-precision laser marking industry.
Fiber laser marking machine working frequency is generally 10-100KHz high repetition rate operation, 10W-20W average power output of fiber laser products is very small volume, and no water cooling system, the volume is greatly reduced. As the laser diode inside the fiber laser marking machine is a low-voltage operation, the optical power of the fiber laser marking machine fiber laser is as high as 70%. The magnitude of the driving power is very small compared with the lamp Nd-YAG laser. "

.

FAQ

Laser marking laser output power is normal, but the laser beam can not play the role of marking:

① optical system adjustment is accurate;

② whether the acousto-optic switch can play the role of switch;

③ D / A card control sound and light output signal reaches 5V.

Design feature

Laser marking effect according to the power and marking speed can vary from silver to light black to black. Want to play a silver effect, the case of 20W fiber, marking speed should be set to 1000-2000mm / s, marking power is set to 30-60%. As the power increases and the marking speed decreases, the marking effect will slowly turn gray and finally to black. If you want to play a black effect marking speed needs to be adjusted to 100-200mm / s, marking power needs to be adjusted to 85-95%. Want to know more about other material marking effects and parameters? Quickly contact purple Xu machinery! 10 years of supporting the marking industry experience, we have a wealth of data for you!

Product features

Fiber Laser Marking Machine Advantages: Fiber Laser Marking Machine is the most advanced laser marking equipment in the world. It has the characteristics of good beam quality, small size, fast speed, long working life, flexible and convenient installation, and maintenance-free.

Packing and shipping

the production department in accordance with the formulation of the packaging method. 2, materials in accordance with the packaging of products produced by the Ministry of Production and through quality control staff to confirm the receipt of qualified labels; ensure that the product packaging during storage intact. 3, have finished the processing of the finished product (finished product) out of the packaging by the quality of the product quality control for the final judge after the library. 4, product handling

Aftersale service

The main training content is:
Switch machine operation flow
"The meaning of the panel and software control parameters, training of parameter selection range.
"Machine maintenance and cleaning.
Common hardware troubleshooting.
"Operation should pay attention to matters.

Chuke Factory

Purple Asahi Machinery Factory is the earliest development of marking one of the high-tech enterprises. Our company is currently able to produce a full set of marking machine suppliers, "Zixu card" all kinds of marking machine has a better market visibility, the main products include: laser marking machine, marking metal stamping machine, Pneumatic marking machine, portable pneumatic marking machine, laser code printer, laser inkjet printer, laser marking machine, laser marking machine, marking machine, marking machine, marking machine and so on. After years of research and development, our company has become the leading enterprises in the domestic marking industry. And a number of domestic and international companies marking the company marking production marking machine.
