Product Details:
Payment & Shipping Terms:
|
Colour: | White | Laser Brand: | Raycus |
---|---|---|---|
Application: | Medical Industry | Application Material: | Metal,steel,aluminm |
Galvanometer: | Sunny | Service: | Shipping:express And By Sea |
Support Graphics Formates: | Special Charameter | ||
High Light: | industrial laser marking equipment,metal marking equipment |
Working principle
A laser marking machine is a permanent mark on the surface of a variety of materials with a laser beam. The effect of marking is to expose the deep material through the evaporation of the surface material, thereby engraving fine patterns, trademarks and words.
Laser power |
10W/20/30/50W |
Laser Wavelength | 1064nm |
Light beam quality | <2 |
Repeating precision | ±0.002 |
Marking range | 110x110mm(customize) |
Marking depth | 0.01~1mm |
Marking speed | 7000mm/s |
Minimum character | 0.15mm |
Minimum line width | 0.01mm |
Repeating frequency | 20KHz~30KHz |
Marking content |
Graphics, text, bar codes, two-dimensional code, date, batch number, serial number |
Graphic format supported | bmp,png,ai,dxf,dst,plt |
|
220V±10%/50Hz/4A |
Size | 570mmx270mmx200mm |
Gross Weight | 135kg |
Control interface | standard USB port |
Laser module life | 100000~200000 hours |
Application

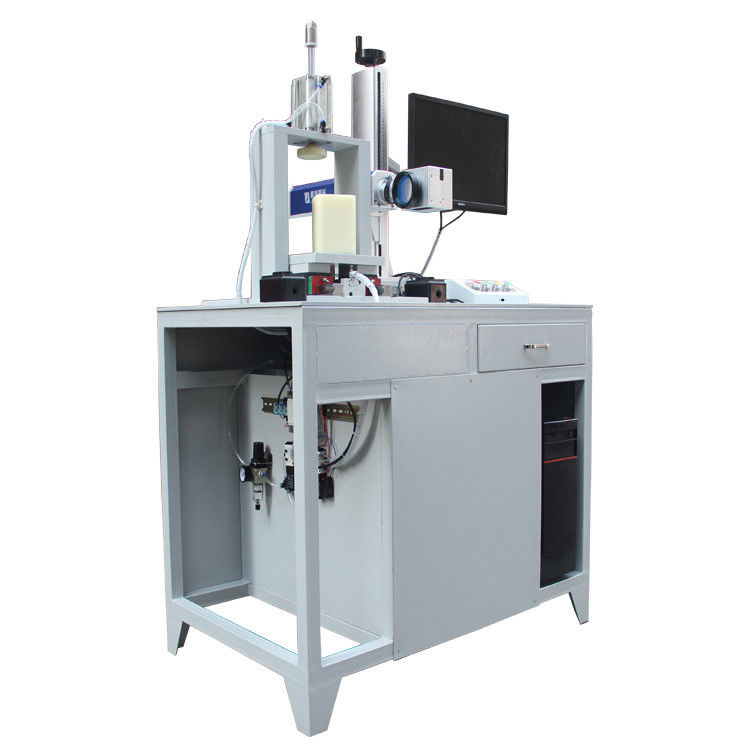

Pipe laser marking machine can cooperate with rotating jig to mark the pipe above all kinds of dimensions without worrying about the different diameter of the metal pipe. The laser pipe marking machine can mark the pipe diameter of 80-200mm in the first moment. If it is larger than this Tube radius, optional portable laser marking machine.
First, plug in the power of the machine, turn on the computer, laser, red. Make the machine in a usable state, insert the wire of the rotating clamp, and clamp the pipe on the rotating clamp. Set the diameter of the workpiece in the software, select the laser, input the content that needs to be marked finally, and select the rotating text to mark it.
Laser marking machine Marking marks are very clear and will not go bad marking the surface of the object, the product marked with a permanent mark to illustrate the ownership of the product maker. Security can be your best choice.
FAQ
Laser marking machine marking range is how much? Marking range of 100x100mm, 200x200mm, 300x300mm optional
Design feature
Fiber laser marking machine is my company using the world's advanced laser technology developed from a new generation of laser marking machine system. Using laser output fiber laser, high-speed scanning galvanometer system to achieve marking function.
Packing and shipping
Packaging Details
Strong veneer case
Delivery Time
Shipped in 15 days after payment
Aftersale service
1. 24 hours Technical support by Email or Calling .
2. English manual and CD video for machine using and maintaining.
3. Hardware: three years for machine
Software: Whole life on update for free.
Maintenance and technological support: Whole life.
Chuke Factory
Chongqing Chuke Intelligent Machinery &Equipment Co.,Ltd was established in 2006, before I company staff have many years of machining experience, so initially my company is based on the production of marking the needle business , With the customer's demand, our company has gradually realized business expansion. So far the company's technical strength has been in the forefront of domestic counterparts, customized business reached a new level, both the pneumatic marking machine or laser marking machine customers have been Accreditation, marking needle is occupied the vast majority of the domestic market. Our products have been certified by world famous quality system, including: ISO, CE, PDA, TUV and so on. Recently, the company is capturing new technical problems and providing brand new services to customers with higher requirements. Our products are completely free within the warranty period of repair and replacement, the warranty period only charge a cost, at any time to solve the urgent needs of customers, in order to solve customer needs for the purpose. No matter where you are, we can serve you.
