FDA Portable Dot Peen Marking Machine , Handheld Dot Peen Marker For Marking Metal Pipe

China FDA Portable Dot Peen Marking Machine , Handheld Dot Peen Marker For Marking Metal Pipe supplier

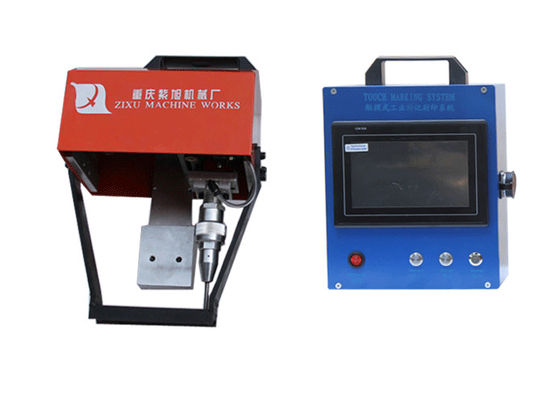

Large Image :  FDA Portable Dot Peen Marking Machine , Handheld Dot Peen Marker For Marking Metal Pipe

Product Details:

Place of Origin: China(mainland)
Brand Name: CHUKE
Certification: FDA,ISO,CE
Model Number: PMK-G01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1300-1600 per set
Packaging Details: Packing in carton,45*45*55cm
Delivery Time: after payment 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 600 sets per month
Contact Now
Detailed Product Description
Needle Material: Aluminum Alloy Application Industrial: Automotive Chassis Industrial
Controller: 7"LCD Touch Screen Controller/window 7 Windows XP Power Type: Pneumatic
Marking Material: Normal Below HRC60,Hard Material Below HRC90. Service: Providing Technology Service
Repeat Accuracy: 0.02-0.04mm Marking Materials: Above HRC60 Need Special Stylus
Advantage: Business To Business Voltage: 110/220V
High Light:

dot peen engraving machine

,

portable dot peen marker

Handheld Dot Peen Marker Free Shipping For Marking Metal Pipe


Principle:



The contents of the input to computer English character and graphics printing, computer marking software convert the content of digital control signal transmitted to the controller, drive and print on the workpiece play consisting of a continuous lattice character and graphics; the needle in the X Y two dimensional plane trajectory according to the set, and print needle under the effect of compressed air on the surface of the work piece to print out the concave marks composed of dense lattice.


Application:


Markings of motorcycle frames, large pipes, special-shaped pieces, nameplates, and various workpieces that are not moved easily.FDA Portable Dot Peen Marking Machine , Handheld Dot Peen Marker For Marking Metal Pipe
Portable Dot Peen Marking Machine parameter

model Pneumatic marking machine
weight 20kg
Machinpower <300w
Power supply 220v/110v
Strokefre quency 300times/s
Marking speed 2-5 characters(2x2mm)/s
Marking depth 0.01 to 1mm (Vary to the material)
Standard marking area 80x40mm,130x30mm,140x80mm,200x200mm



Usage method



Take out the trachea, put the machine and the controller in good condition, connect the letter inserting line, plug in the power supply, and install the marking needle on the machine. The marking needle only needs to be marked away from the marking object 5mm.


Product features



For not easy to move to the workpiece on the bench marking, marking machine head to move the workpiece marking, it inherits the advantages of desktop pneumatic marking machine original, made a great improvement in the applicability of the products, to make up for the lack of bench marking machine, widely used in automobile beam easy to use, simple operation, easy to carry, can be matched with a notebook computer or machine.


FAQ

Can the scale of the pneumatic marking machine be customized? The marking stroke can be set reasonably, the marking machine is enlarged, the marking machine with increasing scope, the portable marking machine, the special marking machine for cylinder, the automobile engine marking machine and the frame marking machine. Each one is tailored for you.


Design feature



The high hardness metal is printed online by dot matrix.


After service


1> All of our machine will be full-checked by our quality control department before the shipment. We make sure that customers
will be get good products from us. and all of our machine with a 12 months quality guarantee period.
2> We will enclose an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the
customer.
3> We will offer plenty of online supports, by email, video, telephone and fax.
4> Our engineer can make a door-to-door instruction training service.


Packing and shipping

Packaging Details
wooden box
Delivery Time
5-7 working days

Delviery time 7-15 working days
Type of shipping Express,air or sea
Terms of payment T/T,credit card,,paypal
package size 45*45*55cm
Gross weight 22KG



Chuke Factory

Chongqing Chuke Intelligent Machinery &Equipment Co.,Ltd
,is located in chongqing,china.since we founded in 2006s,we are always devoted to provide reliable product and service to our customer to build a great enterprise.after years of efforts,now our bussiness involved fiber laser marking machine,co2 laser marking machine,UV laser marking machine,Green laser marking machine,and so on.
