White ODM 30W Marking Metal Marking Equipment ISO9001 Certification

Good quality Fiber Laser Marking Machine for sales
Good quality Fiber Laser Marking Machine for sales
We bought the laser marking machine.it is good quality. Hope CHUKE have the good bussiness all the time

—— Alfanar Electrical System

We bought the laser marking machine.it is goog quality. Hope CHUKE have the good bussiness all the time

—— Alfanar Electrical System

Chuke have been working with us for over 10 years. They provide us with accessories for marking machines, so that our machines sell well in India.

—— EtchON Marks Control

We have already bought second laser marking machines at the beginning, which is compatible with our assembly line operation, fully automated marking, fast, safe and efficient marking.

—— Ford Company

I'm Online Chat Now

White ODM 30W Marking Metal Marking Equipment ISO9001 Certification

China White ODM 30W Marking Metal Marking Equipment ISO9001 Certification supplier

Large Image :  White ODM 30W Marking Metal Marking Equipment ISO9001 Certification

Product Details:

Place of Origin: China,Chongqing
Brand Name: Chuke
Certification: CE,FDA,ISO9001
Model Number: FIMM-A01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 3500-9500/Set
Packaging Details: 95x81x122cm wooden case
Delivery Time: 3-8 days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Laser Brand: HF Application: Hardware Accessories
Application Material: Metal,steel,aluminm Laser Power: 10w
Service: Providing Samples Support Graphics Formates: Batch Number
High Light:

industrial laser marking equipment

,

metal marking equipment

Fast Speed Marking Odm 30W Marking Area 175X175Mm Metal Marking Equipment



Working principle



Worktable surface can move up and down to adapt to different thickness of the workpiece, the workpiece surface is in the laser focal plane, the computer through a dedicated marking control software, you need to mark the text and graphics, set the size of text and drawings, the total Of the marking area, the laser beam walking speed and the need to repeat the number of scanning system can move under the control of the computer, the control laser beam marking the workpiece set the text and drawings, the software now has automatic image distortion Correction function, to achieve precision image marking.



Metal fiber laser marking machine parameter

Laser power

10W/20/30/50W
Laser Wavelength 1064nm
Light beam quality <2
Repeating precision ±0.002
Marking range 110x110mm(customize)
Marking depth 0.01~1mm
Marking speed 7000mm/s
Minimum character 0.15mm
Minimum line width 0.01mm
Repeating frequency 20KHz~30KHz
Marking content

Graphics, text, bar codes, two-dimensional code,

date, batch number, serial number

Graphic format supported bmp,png,ai,dxf,dst,plt



220V±10%/50Hz/4A
Size 570mmx270mmx200mm
Gross Weight 135kg
Control interface standard USB port
Laser module life 100000~200000 hours

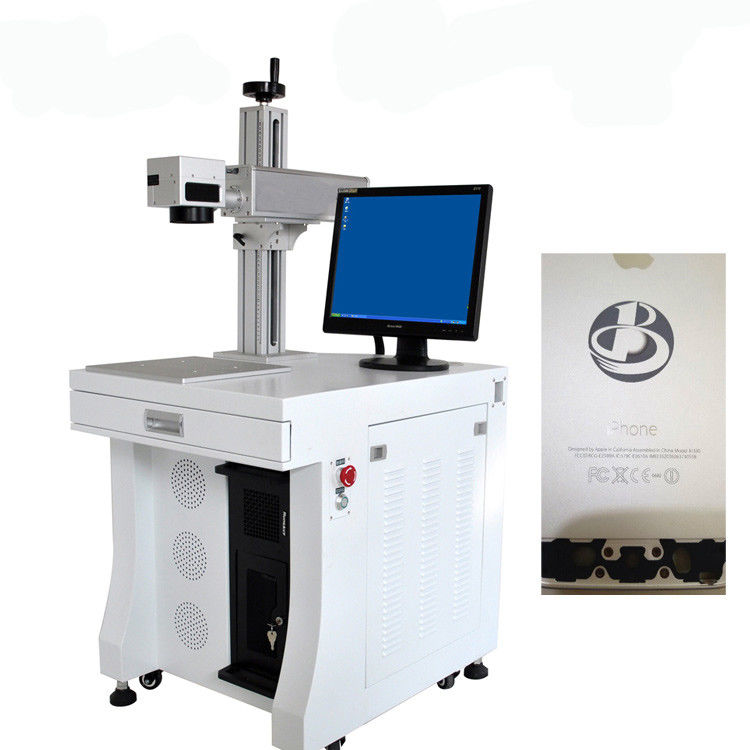

White ODM 30W Marking Metal Marking Equipment ISO9001 Certification





Application

Fiber laser marking machine marking sample

Hardware equipment industry: tools, measuring tools, cutting tools, sanitary ware, tableware, locks, Daojian, medical equipment, fitness equipment, stainless steel products, etc.



Usage method

marking operation
1, double-click marking program icon, enter the program;
2, select the marking file, double-click the contents of the date, time to modify, click confirm, modify completed



Product features

Fine laser engraving, lines can reach millimeters and microns, the use of laser marking technology forged labels and make changes are very difficult, the product is important for security.



FAQ



How to extend the service life? Prevent dust pollution.The power supply and the optical fiber access port of the laser head must be installed with the protective cover provided with the system in the state of not being connected with the optical fiber to prevent the external dust from polluting the internal optical components.



Design feature



Handheld portable fiber laser marking machine with maintenance-free features. Maintenance of the machine is one of the ways to make the machine work very well. The maintenance-free feature eliminates many unnecessary tasks for the customer, saves time and indirectly increases work efficiency.





Packing and shipping



Packaging Details

1.Standard export wooden case packing
Delivery Time
1~5 working days



Aftersale service



The equipment package is guaranteed to meet the requirements of moistureproof, rain proof, antirust, anticorrosion and shock proof, and the identification is clear and unmistakable, so that the articles are safely and promptly shipped to the site.



Chuke Factory



Chongqing Chuke Intelligent Machinery Equipment Co., Ltd. is a famous brand of Chinese marking machine. The Chuke Machinery Factory is one of the largest marking production bases in China. The company is located in Beibei District of Chongqing, founded in 2006. In addition to the production of pneumatic marking needle, the company also independently developed the laser marking machine, pneumatic marking machine, electric marking machine, and its accessories.
The Chuke Machinery Factory is a company which integrates technology, industry and trade. The company has more than 60 production and sales personnel, 10 professional and technical workers, the company occupies 3000 square meters, has large production equipment, marking machine design, manufacturing, quality inspection, performance testing has strong technical strength and production capacity.
All kinds of professional and technical elites, with the leading technology force of the marking machine, make every marking machine achieve fine, fine and new standard. In the past 10 years, we only do one thing, focusing on the production of marking machine and its accessories. is a famous brand of Chinese marking machine. The Chuke Machinery Factory is one of the largest marking production bases in China. The company is located in Beibei District of Chongqing, founded in 2006. In addition to the production of pneumatic marking needle, the company also independently developed the laser marking machine, pneumatic marking machine, electric marking machine, and its accessories.
The Chuke Machinery Factory is a company which integrates technology, industry and trade. The company has more than 60 production and sales personnel, 10 professional and technical workers, the company occupies 3000 square meters, has large production equipment, marking machine design, manufacturing, quality inspection, performance testing has strong technical strength and production capacity.
All kinds of professional and technical elites, with the leading technology force of the marking machine, make every marking machine achieve fine, fine and new standard. In the past 10 years, we only do one thing, focusing on the production of marking machine and its accessories.
