Product Details:
Payment & Shipping Terms:
|
Marking Content: | Alphanumeric | Marking Product: | Jewelry |
---|---|---|---|
Machine Structure: | Desktop | Service: | Free Shipping |

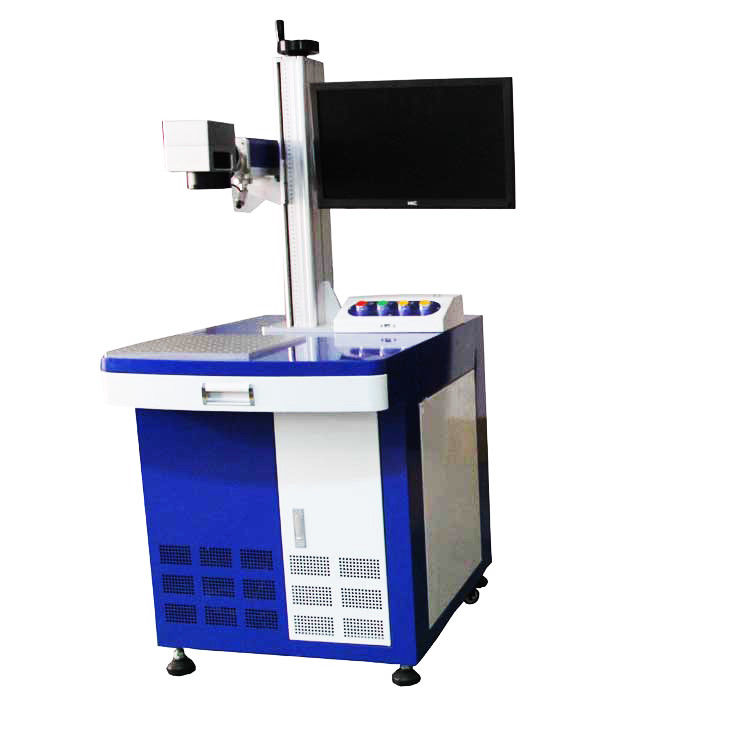

Feature: | Small Processing Material Consumption | Product Name: | Desktop Fiber Laser Engraver |
High Light: | fiber laser marking system,fiber laser engraving machine |
Working principle
Fiber laser marking - the use of laser beams on various fields of materials. The effect of marking is the evaporation of the surface material in order to reveal a deep material or cause chemical and physical changes of the surface material through light and "marks" or burn a light part of the material, a picture, a text showing etching.
Laser power |
10W/20/30/50W |
Laser Wavelength | 1064nm |
Light beam quality | <2 |
Repeating precision | ±0.002 |
Marking range | 110x110mm(customize) |
Marking depth | 0.01~1mm |
Marking speed | 7000mm/s |
Minimum character | 0.15mm |
Minimum line width | 0.01mm |
Repeating frequency | 20KHz~30KHz |
Marking content |
Graphics, text, bar codes, two-dimensional code, date, batch number, serial number |
Graphic format supported | bmp,png,ai,dxf,dst,plt |
|
220V±10%/50Hz/4A |
Size | 570mmx270mmx200mm |
Gross Weight | 135kg |
Control interface | standard USB port |
Laser module life | 100000~200000 hours |
Application
Laser marking machine series is suitable for mobile phone keys, plastic transparent keys, electronic components, integrated circuits (IC), electrical appliances, communications products, sanitary ware, tool accessories, knives, glasses, watches and clocks, jewelry, auto parts, bags Trimmings, cooking utensils, stainless steel products and other industries
1.Turn on the computer 2.open the galvanometer power 3.open the laser power 4.open the software
Fiber laser marking machine working frequency is generally 10-100KHz high repetition rate operation, 10W-20W average power output of fiber laser products is very small volume, and no water cooling system, the volume is greatly reduced. As the laser diode inside the fiber laser marking machine is a low-voltage operation, the optical power of the fiber laser marking machine fiber laser is as high as 70%. The magnitude of the driving power is very small compared with the lamp Nd-YAG laser.
.
FAQ
1.laser marking machine can print what font or picture? Support for common one-dimensional bar code and two-dimensional code marking, such as Code39, EAN, PDF417, DATAMATRIX and so on;
Design feature
Portable fiber laser marking machine integrated modular design, the biggest feature of the device is very small size, can be in the trunk, easy to carry, or even work in a small workshop. Fiber laser marking machine with high speed, high quality, high Cost-effective features.
Product features
Fiber laser marking machine is the most advanced laser marking equipment in the world. It has the characteristics of good beam quality, small size, fast speed, long working life, flexible and convenient installation, and maintenance-free. Fiber laser, the latest in the world, the most reliable structure, small size, small power consumption, high voltage without large water cooling system (only about 300W), high beam quality, close to the ideal beam, USB interface, output control, optical scanning Mirror, high laser repetition rate, high speed without distortion.
Packing and shipping
Packing in wooden case,95*81*122cm The machine gross is 1-188KG, you can use express delivery. If more than 75KG, you can choose sea transportation.
Aftersale service
1.3 year guarantee,providing free technical support.
2.During the warranty period, Warranty period, the required parts after the non-human damage free replacement,the freight is borne by us.
3.Machine has been adjusted before delivery, operation instructions is included in the delivery. If there is any other questions, pls kindly tell us
Chuke Factory
Chuke Machinery Factory was established in 2006, before my company staff have many years of machining experience, so initially I was established in the production of marking the needle business, with the customer's needs, our company has gradually achieved business expansion , So far the company's technology has been in the forefront of domestic counterparts, customized business reached a new level, both pneumatic marking machine or laser marking machine have been recognized by customers, marking needle is occupied the vast domestic market Part of the market. Our products have been certified by world famous quality system, including: ISO, CE, PDA, TUV and so on. Recently, the company is capturing new technical problems and providing brand new services to customers with higher requirements. Our products are completely free within the warranty period of repair and replacement, the warranty period only charge a cost, at any time to solve the urgent needs of customers, in order to solve customer needs for the purpose. No matter where you are, we can serve you.
