Product Details:
Payment & Shipping Terms:
|
| Advantage: | OEM | Apply: | Portable |
|---|---|---|---|
| Drive Type: | Electric | Controller: | USB Connect |
| Software: | Insert ThorX7 | Product Name: | Small China Zixu Factory Electric Pinmark Machine Without Air Pressure |
| Marking Area: | 40x80mm | Marking Materials: | Above HRC60 Need Diameter Stylus |
| Repeat Accuracy: | 0.02-0.04mm | Power: | 300w |
| High Light: | electric engraving machine,raycus laser source |
||

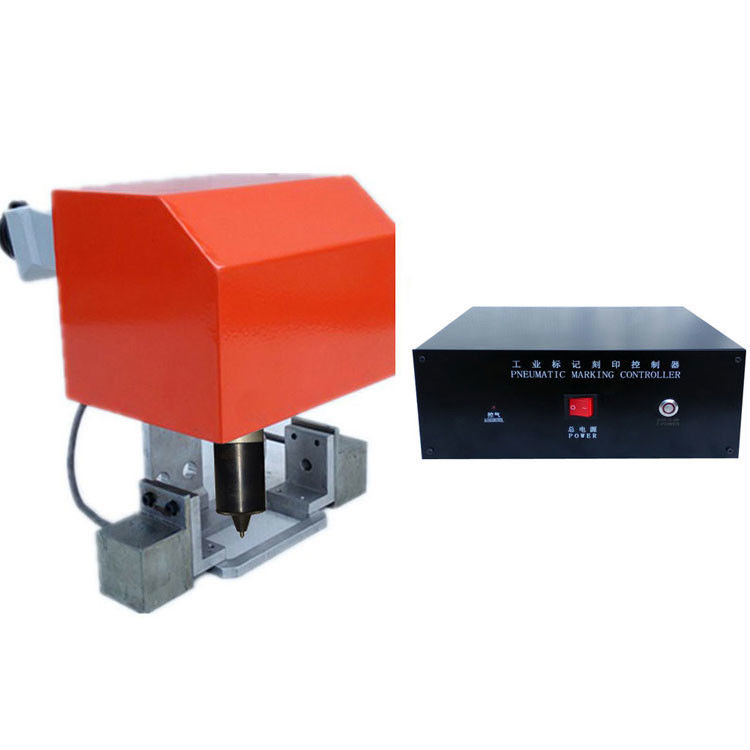

Small China Zixu Factory Electric Pinmark Machine Without Air Pressure
Working Principle
Electromagnetic marking machine adopts the method of electromagnetism as kinetic energy instead of aerodynamic high frequency micro impact dot matrix printing, which saves the gas source revolutionarily and at the same time greatly reduces the printing noise during work. No spattering of metallic dust when printing.
Application Range

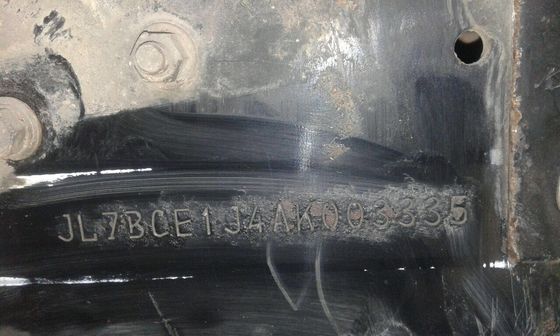

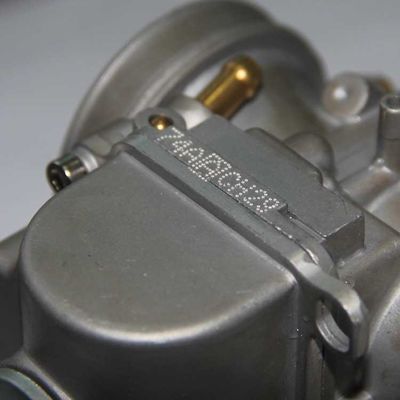

It can be widely used in automotive body, sheet metal parts, nameplates and other effects that require good results, without gas, low noise work, especially for aluminum, copper, plating parts, anodized parts and other high-end products exquisite marking.
Instructions
1 Press the back panel shown above, the computer system cable, the power connection;
2 one end of the control cable that is 19-core aviation plug with the back of the electric control box 19 core connector, the other end with the host 19 core connector;
3 Φ8 trachea will be pneumatic marking machine linked with the factory gas source connection;
4 start the computer;
5 Open the control box power;
6 according to the software instructions (or press the software interface prompts) enter the correct print content;
7 workpiece positioning, marking
Product Features
| Marking area: | 40X80mm(or customized) |
| Marking speed: | 3-5 characters / second (2X2) |
| Software application system: | windows98windowsXP |
| Marking depth: | 0.01-1.2mm Adjustable (depending on the material) |
| Accuracy Assurance: | ≤ 0.01 |
| Height adjustment Range: | 1-330mm |
| Automatic storage: | can automatically store files and print content, 3L / S |
| analog display: | you can directly observe the marking on the screen |
| Print pin impact frequency: | 300 beats / second |
| Marking content: | Chinese and English characters, numbers, graphics (By marking software editing) Graphic |
| Editing: | Serial number (serial number) Automatic printing, storage, weight automatic detection, can identify the bar code |
| Marking material: | all kinds of metal (HRC85 hardness below), all kinds of hard materials Plastic bakelite, etc.) |
| Power: | 300W |
| Working voltage: | 110VAC / 220VAC |
| Delviery time: | 3-15 working days |
| Type of shipping: | Express,air or sea |
| Terms of payment: | T/T,credit card, |
| package size: | 45X45X55cm |
| Gross weight: | 23KG |
| Warranty time: | one year |
Service Content
Maintenance costs can be controlled:
Did not purchase extended warranty service, maintenance costs will be charged according to the fault equipment and fault conditions, equipment maintenance costs uncontrollable business; purchase extended warranty service, maintenance costs can be controlled, into a budget system, can significantly reduce equipment maintenance The risk of increased costs.
Professional maintenance services: Let our service team to provide you with more professional support, to join hands in creating a better future!
More than ten branches nationwide, no matter which city you use our equipment, we will solve your after-sales problems.
FAQ
Mechanical maintenance and care:
1.X, Y-axis linear guide should be kept clean, do not allow dust or iron to stay on the top, so as not to affect the slide accuracy.
2.X, Y-axis linear guide plus 20 # above a little oil to keep the linear guide lubrication.
3. Regularly check the X, Y-axis timing belt tension.
4. Keep the marking head liner clean, do not allow dust, iron filings into the cylinder or copper sleeve.
5. Pressure regulator valve should be free of water, no impurities.
6. Limit switch does not allow oil and iron filings and so on.
7. Compressed air should meet: clean, anhydrous, no impurities.
Design Features

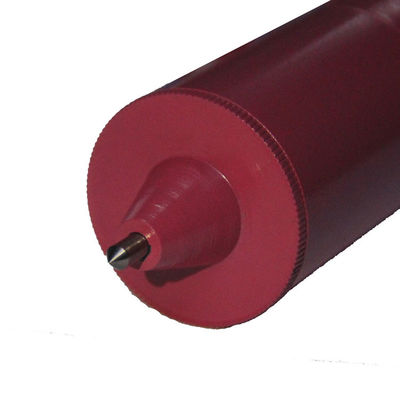

Designed for portable marking design, imported electromagnetic needle design, no gas source, built-in Panasonic lithium battery, charging 6 hours of continuous work 18 hours, embedded system, small and lightweight head.
Factory Introduction
Chongqing Chuke intelligent machinery equipment Co.,ltd is a subsidiary of Chongqing ZiXu Machine works, is a professional engaged in marking machine design and industrial enterprises. Founded in 2006, covers an area of 2000 square meters. In annual production of 500 sets of laser marking machine,500 sets dot peen marking machine and electric marking machine,more over 100000 pieces marking stylus.Products are exported to all countries in the world,Such as the India, Spain, France, Germany, the United States, Brazil, South Korea and other more than and 30 countries . After we continue to improve and perfect the product quality has been achieved CE, ISO9001, FDA, TUV certificate, won the domestic and foreign large.
In the service process should be positive, enthusiastic and patiently answer all kinds of questions raised by users, imparting maintenance knowledge. User questions can not be answered, should be patiently explained and promptly report the after-sales service department to coordinate the solution. After receiving the service request information, there should be echo within 2 hours, within 24 hours should be a clear answer, under normal circumstances should catch the user within 48 hours of the scene. Effective implementation of the user's commitment.
