Application:
Pneumatic marking machine's advantage is that the mark can be darker and deeper, whether it is graphics, text, product serial numbers, trademarks, etc., pneumatic stamping machine code, marking permanent permanent mark, in general, marking the workpiece on the low volume About 2000 (10pcs 5mm high character calculation), can choose pneumatic marking machine.

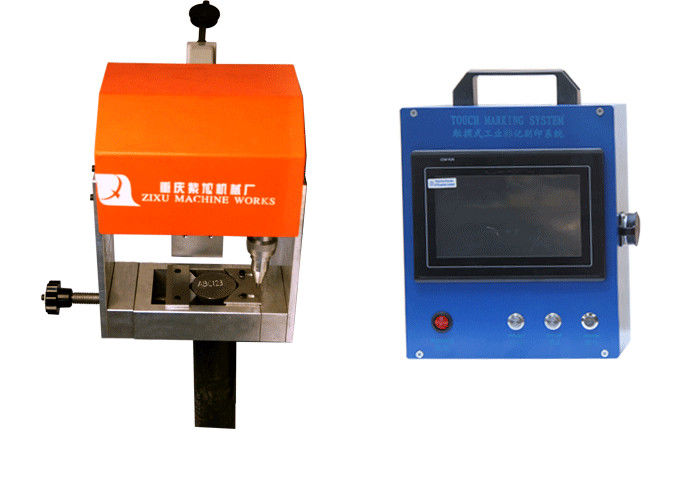

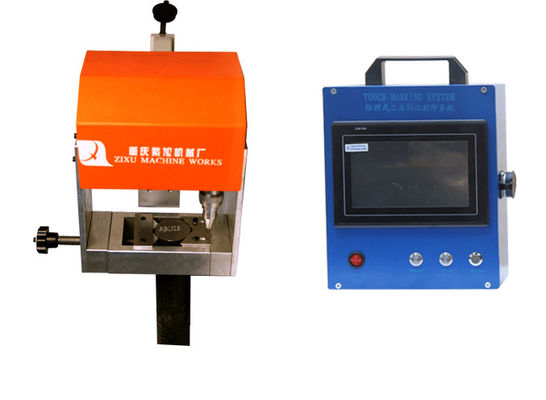

Portable Dot Peen Marking Machine parameter
| model | Pneumatic marking machine |
| weight | 20kg |
| Machinpower | <300w |
| Power supply | 220v/110v |
| Strokefre quency | 300times/s |
| Marking speed | 2-5 characters(2x2mm)/s |
| Marking depth | 0.01 to 1mm (Vary to the material) |
| Standard marking area | 80x40mm,130x30mm,140x80mm,200x200mm |
Usage method
The use of pneumatic marking machine, connecting the computer software, control the needle dot matrix marking, the formation of fonts and patterns in the mold, metal parts industry widely used, then the use of pneumatic marking machine in the production What are the precautions?
1. Needle safety: At the practice stage to remind myself that the gas source switch is off, the needle height is higher than the table blanker; familiar with, to remind myself, the next step will be how to get the needle, will not come across what. At the same time, to avoid the needles directly hit the table, playing more, table uneven, affecting the quality of the engraving.
2. File Security: Only copy can not be cut, otherwise it may fail. In order to prevent computer crashes or broken, please edit a good copy of the file, on the other computer's disk, usually do not download the Internet U disk or removable hard disk.
3. Accuracy issues: Reset hundreds of times each time to eliminate systematic errors.
Product features
1.Computer (computer) (self-made manufacturers, we can also buy one of our machines)
2, the controller
Drive: Import stepper motor drive
3, marking head configuration
Rail: South Korea imported double-row ball linear guide
Motor: Domestic famous brand motor Leisai.
High-frequency valve: the United States imports mac
Air filter: pressure Artic
FAQ
Marking needle does not work
cause of issue
The needle does not vibrate or vibrate very weakly.
Check if the 'Ventilation' switch is on.
Note: You must also open the 'air valve switch' on the software and the 'air switch' on the marking machine head at the same time.
Check the pressure of the size.
Normal working pressure is: 0.4 ~ 0.6MPa pressure
Note: When using gas station or air compressor to supply air to marking machine, the output pressure of gas station or air compressor must be greater than the air pressure of pressure regulating valve for marking machine. Such as: gas station or air compressor output pressure 0.8 MPa, pressure regulator for marking machine pressure 0.4 MPa-0.6 MPa)
Note: If the use of air compressor air supply, air compressor is best used 3 MPa above.
Design feature
Pneumatic marking machine on the market now in accordance with the marking machine installation is divided into desktop pneumatic marking machine and portable pneumatic marking machine, according to the configuration range with the computer pneumatic marking machine and a computer with a display marking machine.
After service
Lifetime free software upgrade service
Free installation of domestic training equipment
Genius, 2 years warranty, life-long free maintenance.
Long-term guarantee of equipment supplies and supplies.
Timely and effective after-sales service, 7X24 hours a day service.
Packing and shipping
The user calls, letters, come, and in the "Customer Satisfaction Questionnaire" rating of good (not included) below the response to the performance of the service staff in poor performance or dissatisfaction with the service is a complaint. Serious misconduct caused the user complaints, once verified will performance depending on the circumstances, fines, warning until dismissed.
| Delviery time | 7-15 working days |
| Type of shipping | Express,air or sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 45*45*55cm |
| Gross weight | 22KG |
