Electric Benchtop Pin Stamping Equipment For Stainless Steel Engraving Tool
Working Principle
Print positioning accurate, fast; imported linear bearings and belt drive mode to enhance print stability and improve printing accuracy; innovative design and manufacture of titanium alloy needle, print smooth and beautiful appearance.
Application Range

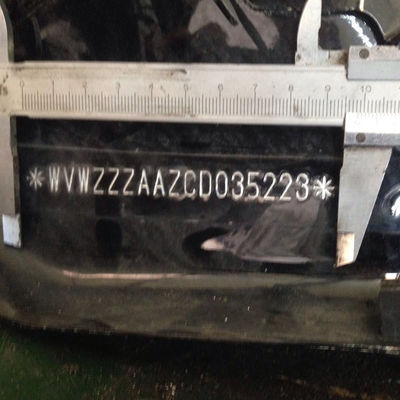

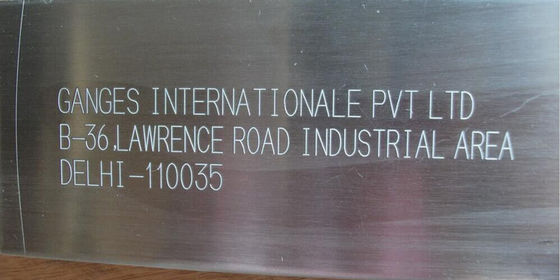

Applied to the car beam. Motorcycle frame, large pipe, shaped parts, nameplates and a variety of hard-moving parts of the mark, the use of light, simple operation, easy to carry, can be used in conjunction with a laptop or microcontroller.
Instructions

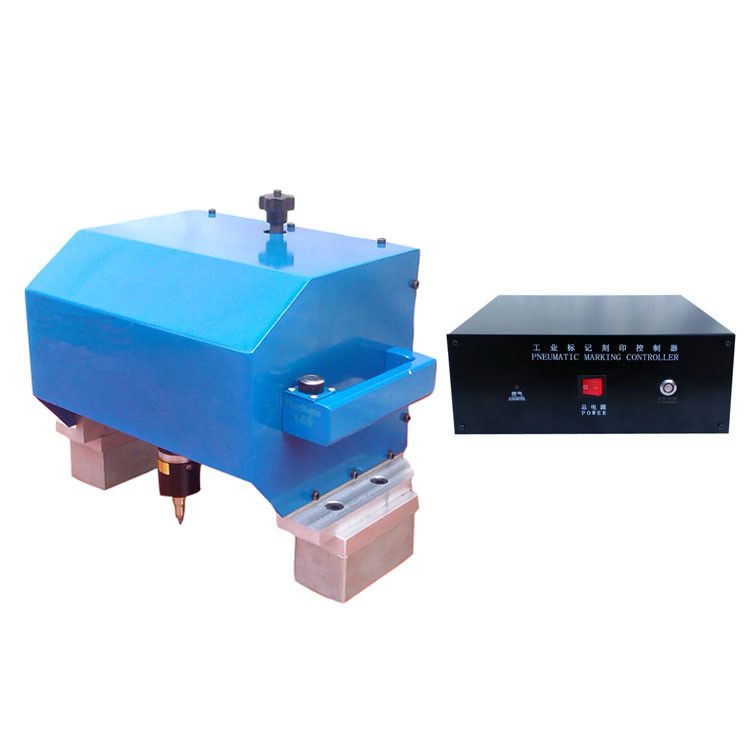

The basic configuration consists of computer, display, control box, marking machine host.
1 host: host includes two-dimensional, Z-axis, marking head.
a two-dimensional is step-driven X, Y movement mechanism, under the control of the computer and controller by character and graphics trajectory;
b, Z-axis is a manual lifting mechanism for adjusting the distance between the needle and the workpiece;
c, marking the first needle vibration mechanism, including the needle, spring, ring.
Product Features
1, font (special characters, etc.) rich, and can call windows font;
2, graphics can call PLT graphics;
3, typesetting strong, such as alignment, center, equal and so on;
4, with continuous with drawal and recovery functions, do not have to worry about misuse;
5, USB interface transmission, plug and play, subvert the old product must use the history of parallel port transmission;
6, the interface lock function, marking process without having to worry about other people to change.
| Marking area: |
140X80mm(or customized) |
| Marking speed: |
3-5 characters / second (2X2) |
| Software application system: |
windows98windowsXP |
| Marking depth: |
0.01-1.2mm Adjustable (depending on the material) |
| Accuracy Assurance: |
≤ 0.01 |
| Height adjustment Range: |
1-330mm |
| Automatic storage: |
can automatically store files and print content, 3L / S |
| analog display: |
you can directly observe the marking on the screen |
| Print pin impact frequency: |
300 beats / second |
| Marking content: |
Chinese and English characters, numbers, graphics (By marking software editing) Graphic |
| Editing: |
Serial number (serial number) Automatic printing, storage, weight automatic detection, can identify the bar code |
| Marking material: |
all kinds of metal (HRC85 hardness below), all kinds of hard materials Plastic bakelite, etc.) |
| Power: |
300W |
| Working voltage: |
110VAC / 220VAC |
| Delviery time: |
3-15 working days |
| Type of shipping: |
Express,air or sea |
| Terms of payment: |
T/T,credit card, |
| package size: |
45X45X55cm |
| Gross weight: |
23KG |
| Warranty time: |
one year |
Service Content
1) After the extended warranty service is purchased, you do not need to pay any additional fee (except consumable items) for repairing the equipment;
2) free value-added services, timely replacement of parts you do not pay attention to repair, eliminate hidden dangers, to ensure that equipment has been in good condition;
3) more favorable hardware upgrade to meet your higher demand for equipment;
4) more favorable to buy supplies.
FAQ
In the marking process, marking the needle marking the track normal, hitting the shell back to zero.
Fault reason: X or Y axis proximity switch loose or burn out.
Troubleshooting: Check the proximity switch position or replace the proximity switch.
Design Features
Can print numbers, Chinese characters, English letters, graphics, support for automatic coding, serial number, batch number, date, bar code, two-dimensional code, automatic jump number.
