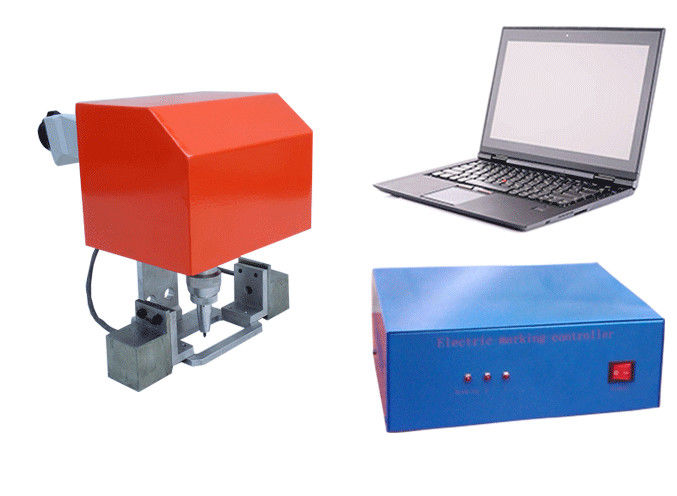

Orange Portable Dot Peen Marking Machine Head With 7" Lcd Controller


Principle:

 Computer-controlled stepper motor to print the needle in accordance with the predetermined characters or graphics track, while compressed air so that the print needle at a frequency of 200 times per second up and down vibration, hit the workpiece by a continuous dot matrix composed of characters and graphics.

Application:

For a variety of metal or non-metallic signs, parts of the plane marking, and cylindrical workpiece radial marking. Especially for a variety of nameplates, signs marking, easy to use and economical.

Portable Dot Peen Marking Machine parameter



Usage method

For pneumatic marking machine, can be used in some machinery, instrumentation and other industries, it is also an easy maintenance equipment, but when maintaining the pneumatic marking machine, or need to pay attention to some points.
1, pneumatic marking needle more oil, the general use of light sewing machine oil. The location of the oil to pay attention to: mainly in the pneumatic marking machine outside the head of the needle oil, but also to rotate the needle regularly to ensure that the internal can touch. This avoids wear and tear.
2, when the oil to avoid stained oil on the belt, otherwise it will cause the belt skid, resulting in marking the results of mistakes.
3, regular use of blowing dust gun, blow off the pneumatic marking machine controller's internal dust.

Product features

Marking range: 125x85 (150 × 130 / <200 × 150/300 × 200 (mm) custom.>
Marking depth: 0.01 ~ 2mm (depending on the material hardness)
Marking speed: 30 ~ 40mm / s
Lifting range: 300mm
Machine power: 500W
Pressure requirements: 0.3 ~ 0.6Mpa (industrial gas or compressor gas source)
Power Requirements: 220V ± 10% 50HZ ± 1%
Material hardness: ≤ HRC60
Wooden box packaging: 560 * 380 * 720 (L * W * H) mm
Weight: 50KG (excluding computer);

FAQ

Marking process every time the marking position changes?
cause of issue
When marking the same workpiece, the print position will change.
Check the marking software set the number of head reset is how many times.
Note: marking software set the maximum number of head reset can not exceed 100 times.
The head must be reset after each boot.
This will ensure the consistency of the print position.

Design feature

Marking speed does not produce position deviation.
Tooling, the workpiece is not fixed firmly.

After service

For products that have been finalized (ie have been proof approved) and have been produced in volume, they fail to meet the requirements of the customers in appearance, function, quantity, delivery, packaging and services during the inspection or assembly of the customers Lead to customer complaints require replenishment, returns, replacement maintenance, chargeback and other phenomena for tracking.

Packing and shipping

Only one mantissa box is allowed after each batch of product is packed. That is, the number of packages per batch only allows one decimal.



Chuke Factory

Chongqing CHUKE is a professional R & D, production and sales of marking machines and accessories products of the flagship industry leader, but also marking the professional production base supporting, steel cylinder marking machine quote, has reached the marking machine, pneumatic marking machine, electric Marking machines, laser marking machine with an annual output of more than 500, marking needle (including pneumatic and electric) more than 100,000 sets of annual output.
