Application:
Application range
1) Automobiles, motorcycles and other engines, pistons, body, frame, chassis, connecting rod, engine, cylinder and other parts number, name, trademark, date of production printing;
2), electric cars, bicycles, motorcycles and other plus frame printing;
3), a variety of products, vehicles, equipment, product label printing;
4) All kinds of mechanical parts, machine tools, metal products, metal pipes, gears, pumps, valves, fasteners, steel, instrumentation, mechanical and electrical equipment, and other metal marking; plastic products.

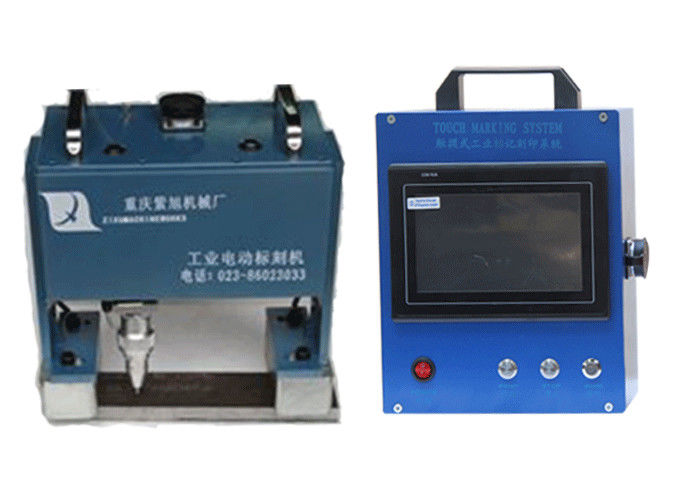

Portable Dot Peen Marking Machine parameter
| model | Pneumatic marking machine |
| weight | 20kg |
| Machinpower | <300w |
| Power supply | 220v/110v |
| Strokefre quency | 300times/s |
| Marking speed | 2-5 characters(2x2mm)/s |
| Marking depth | 0.01 to 1mm (Vary to the material) |
| Standard marking area | 80x40mm,130x30mm,140x80mm,200x200mm |
Usage method
(1)Power conditions: AC voltage 220 ± 10%, 50Hz ± 1%, power ≤ 1Kw;
⑵ gas source conditions: 0.3-0.8Mpa compressed air, dry and pure, can be an industrial gas source, air compressor can also be used for gas supply;
⑶ Relative Humidity: <85% at 25 ℃;
⑷ relative temperature: 6 ℃ - 38 ℃;
⑸ area: 1 square;
Product features
Worktable using precision mold casting, 64 subdivision drive, imported linear guide, high-precision stepper motor high reliability. Applications: Suitable for all kinds of metal and non-metallic plane direction automatic marking.
FAQ
Marking head can not be normal 'reset'?
cause of issue
When resetting, the print head emits a large amount of impact noise. After the reset, the stepper motor can not stop working.
The reset work indicator will be on when the reset is normal. ('X-axis' and 'Y-axis' LED work lights on the controller panel)
Inspection steps:
One. 'X axis' 'Y axis' LED work light is damaged.
Two limit switch damage or limit switch shift.
Three .25 pin data cable, 19-core print line is damaged. (X axis 'Y axis' LED work light will be on but the computer does not receive the reset signal)
Fourth, there is a problem with the computer or printing software. (X axis 'Y axis' LED work light will be on but the computer does not receive the reset signal)
Design feature
Can have a good mode of operation, the implementation of the relevant print instructions immediately, making the entire pneumatic marking machine in operation, do not take long to complete the relevant tasks, but also does not produce any quality problems, printing The effect and quality are clearly guaranteed.
After service
Maintain customer acceptance after the end of the product after-sales maintenance services, product quality status follow-up work; and is responsible for product quality problems raised by the customer arrangements for the corresponding follow-up treatment of customers, customer feedback problems promptly to the company leadership and Engineering, quality department feedback processing.
Packing and shipping
Crates placed on the pallet tidy, high not too high, generally four or five (minimum number of boxes) is appropriate, the package can not exceed the size of the pallet.
| Delviery time | 7-15 working days |
| Type of shipping | Express,air or sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 45*45*55cm |
| Gross weight | 22KG |
Chuke Factory
CHUKE company advanced technology, strengthen management, with the domestic advanced processing technology and production equipment, can provide all kinds of marking on the market need to mark the company. Own brand -CHUKE, the cylinder stamp Marking Factory, with a large number of electric standard Carved series of products, marking the scale industry reputation. The company has the right to operate import and export, steel cylinder marking machine, Beibei District of Chongqing export enterprises. In order to better do a good job of products and services, the company's products through the EU certification and exports to the United States FDA certification, the products have passed ISO9001 international quality system certification.
