Pin Stamp Electric Marking Machine For Aluminum Plate , USB Connect Controller

Good quality Fiber Laser Marking Machine for sales
Good quality Fiber Laser Marking Machine for sales
We bought the laser marking machine.it is good quality. Hope CHUKE have the good bussiness all the time

—— Alfanar Electrical System

We bought the laser marking machine.it is goog quality. Hope CHUKE have the good bussiness all the time

—— Alfanar Electrical System

Chuke have been working with us for over 10 years. They provide us with accessories for marking machines, so that our machines sell well in India.

—— EtchON Marks Control

We have already bought second laser marking machines at the beginning, which is compatible with our assembly line operation, fully automated marking, fast, safe and efficient marking.

—— Ford Company

I'm Online Chat Now

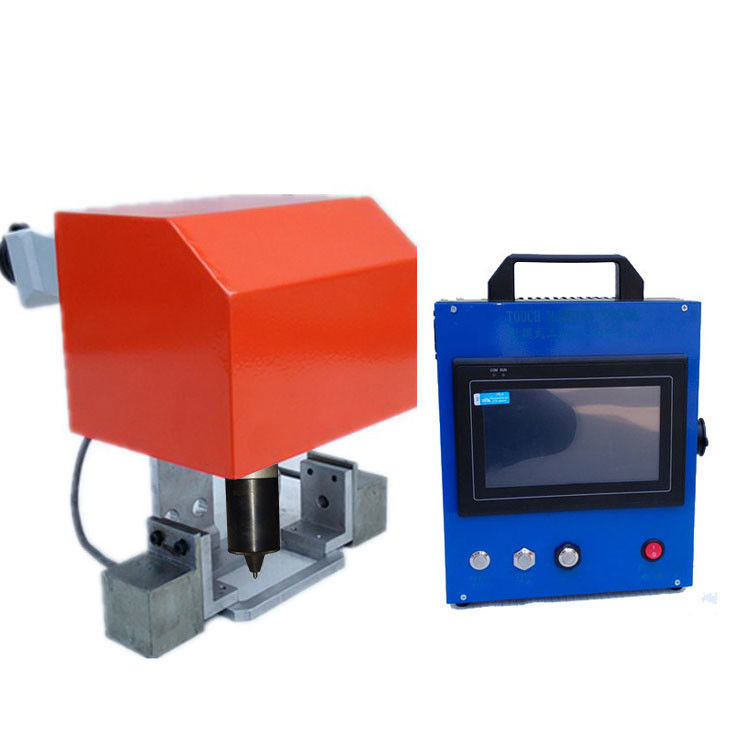

Pin Stamp Electric Marking Machine For Aluminum Plate , USB Connect Controller

China Pin Stamp Electric Marking Machine For Aluminum Plate , USB Connect Controller supplier
Pin Stamp Electric Marking Machine For Aluminum Plate , USB Connect Controller supplier Pin Stamp Electric Marking Machine For Aluminum Plate , USB Connect Controller supplier Pin Stamp Electric Marking Machine For Aluminum Plate , USB Connect Controller supplier

Large Image :  Pin Stamp Electric Marking Machine For Aluminum Plate , USB Connect Controller

Product Details:

Place of Origin: China(mainland)
Brand Name: ZIXU
Certification: FDA,ISO,CE
Model Number: EMK-D01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1300-1600 per set
Packaging Details: Packing in carton,45*45*55cm
Delivery Time: after payment 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 600 sets per month
Contact Now
Detailed Product Description

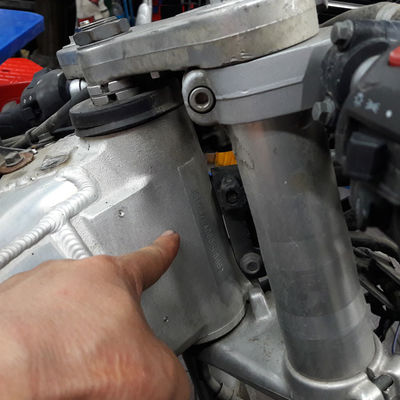

Needle Material: Aluminum Application: Motorcycle Frame
Drive Type: Electric Controller: USB Connect
Software: Insert ThorX7 Product Name: Small China Zixu Factory Electric Pinmark Machine Without Air Pressure
Marking Area: 40x80mm Marking Materials: Above HRC60 Need Special Stylus
Repeat Accuracy: 0.02-0.04mm Power: 300w
High Light:

electric engraving machine

,

pin stamping machine

 Free Shipping China Pin Stamp Marking Machine For Aluminum Plate

Working Principle
No gas supply, hand-held for outdoor operations, large workpieces, frequent mobile operations and other occasions. Integrated on-line for the production line fixed installation site.
Application Range
Characterized by the font specifications, neatly arranged, accurate, beautiful appearance, regular, elegant grade. No distortion of the entire sign printing, is conducive to installation, writing corrosion-resistant, wear-resistant ability, long lasting and reliable writing.

Instructions

Plug in the power, open the software controller, edit the content we want to print, and adjust the text size so that we can print and print what we want to print on our product without the need for a gas source.




Product Features
Electric marking machine for my company's latest development of products, new software design powerful, the main features are:
1 using electric marking, no gas source,
2. Fonts sleek, beautiful and upscale
3. Electric lifting bracket, easy to adjust
4 noise, easy to operate.

Marking area: 40X80mm(or customized)
Marking speed: 3-5 characters / second (2X2)
Software application system: windows98windowsXP
Marking depth: 0.01-1.2mm Adjustable (depending on the material)
Accuracy Assurance:  ≤ 0.01
Height adjustment Range:  10mm
Automatic storage: can automatically store files and print content, 3L / S
analog display: you can directly observe the marking on the screen
Print pin impact frequency: 300 beats / second
Marking content: Chinese and English characters, numbers, graphics (By marking software editing) Graphic
Editing: Serial number (serial number) Automatic printing, storage, weight automatic detection, can identify the bar code
Marking material: all kinds of metal (HRC85 hardness below), all kinds of hard materials Plastic bakelite, etc.)
Power: 300W
Working voltage: 110VAC / 220VAC
Delviery time: 3-15 working days
Type of shipping: Express,air or sea
Terms of payment: T/T,credit card,
package size: 45X45X55cm
Gross weight: 23KG
Warranty time: one year


Service Content
More peace of mind:
Free shipping, free installation and commissioning, free operation and maintenance personnel training.

FAQ
Marking font distortion, wrong character in the lower part of the string, string bits
Fault reason: Loose belt or Y axis electrode, the driver is damaged; The current software version does not meet the marking requirements
Troubleshooting: replace the belt or Y-axis electrode, drive; software upgrade

Design Features
Support graphics conversion, according to production needs set serial number record marking history data, you can directly read the text data through the serial port, through the test software, machine performance testing and fault testing, marking content can be flexibly edited and store.
Factory Introduction
Chongqing Chuke intelligent machinery equipment Co.,ltd is a subsidiary of Chongqing ZiXu Machine works, is a professional engaged in marking machine design and industrial enterprises. Founded in 2006, covers an area of 2000 square meters. In annual production of 500 sets of laser marking machine,500 sets dot peen marking machine and electric marking machine,more over 100000 pieces marking stylus.Products are exported to all countries in the world,Such as the India, Spain, France, Germany, the United States, Brazil, South Korea and other more than and 30 countries . After we continue to improve and perfect the product quality has been achieved CE, ISO9001, FDA, TUV certificate, won the domestic and foreign large.

Pin Stamp Electric Marking Machine For Aluminum Plate , USB Connect Controller

Packing And Shipping

1 surface of the workpiece to be done inside and outside the cleaning work, so dust-free, no stains.

2 need to add between the pieces of pearl cotton or foam protection.

3 Pack with wooden case if necessary.

Pin Stamp Electric Marking Machine For Aluminum Plate , USB Connect Controller
After-Sales Service

In the after-sales service, such as the discovery of major product quality problems, should make detailed records to retain technical data, timely feedback company. High frequency of product failure point should be summarized, statistics, analysis and report to the company for technical assessment. The establishment of after-sales calls, to Han, registration of visits, the establishment of a sound accounting service account, and the cost of statements and accounts.
