| Product Name: | Co2 Laser Engraving Machine Price For Bar Codes | Laser Wavelength: | 1064nm |
|---|---|---|---|
| Marking Range: | 210*210mm | Marking Speed: | 7000mm/s |
| Control Interface: | Standard USB Port | Application Material: | Leather |
| Laser Power: | 15w | Application: | Garment Industry |
| Profit Model: | Agents | Service: | Accept Customize |
| High Light: | co2 laser marker,laser marking equipment |
||

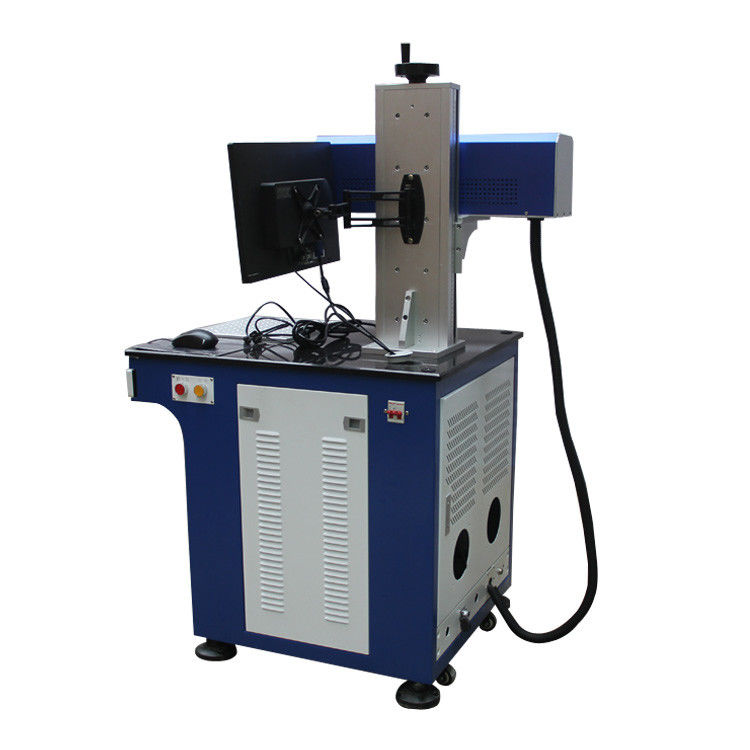

Free Shiping Co2 Laser Engraving Machine Price For Bar Codes
Working principle
CHUKE CO2 laser marking machine using CO2 gas as the working medium, the CO2 and other auxiliary gas filled into the discharge tube in the electrode plus high pressure, the discharge tube glow discharge, the gas released a wavelength of 10.64um laser, the laser energy After magnification, the galvanometer scan and F-Theta mirror focus, in the computer and laser marking control card under the control of the workpiece in accordance with the requirements of users of images, text, numbers, line marking.
co2 laser marking machine parameter
| Model number | CO2 laser marking machine | |
| Laser power | 15w/30w | |
| Maximum speed | 7000mm/s | |
| Graphics formats | PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO.DXF | |
| Quality of light plate | M2<2 | |
| Power stability | (8h)<+-1% rms | |
| Pulse repetition frequency | 20KHZ-60KHZ | |
| Power | <800w | |
| Minimum line width | 0.1mm | |
| Minimum character | 0.4mm | |
| Laser wavelength | 10.6um/10.2um | |
| Marking size | 100x100/175x175/300x300mm | |
| Cooling method | Air cooling | |
| Working voltage | 110/220v+-10%,50/60HZ |
Application
Packaging caps industry: tobacco, food, medicine, cosmetics and other packaging, metal caps, furniture decoration, decorative deduction signs, plastic products.
Usage method
Tail outlet air outlet is the air outlet, and the inlet to form a loop, so that air circulation.
Product features
beam structure to adapt to different lines of different positions and different shapes of the code; WINDOWS operating system, the entire Chinese language interface, the standard keyboard, mouse operation, the device is equipped with a standard expansion interface for easy hardware expansion; carton laser Marking machine for professional fiber optic probe, marking can be achieved without gaps, no missed hit; optional smoking device, the marking can be generated quickly discharged smoke to protect the marking area environment. Lens laser marking system, one of the key optical components, where the use of Singapore's F-θ lens, the role of the laser beam emitted parallel laser focus, to achieve the purpose of energy concentration.
FAQ
Q:If I purchase a machine, how can you make it safe while shipping?
A:We have a professional package suitable for oversea transpotation. Machine will be fixed well in the wooden case
Design feature
Fine workbench for fine micromachining. You can use the prism, mirror system (for Nd: YAG lasers can also use fiber optic light guide system) to focus the beam to the workpiece on the inner surface or inclined surface for processing.
Packing and shipping
We have 3 layers package. For the outside, we adopt wood craft case.
| Delviery time | 7-15 working days |
| Type of shipping | Express,air or sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 95x55x83cm |
| Gross weight | 188KG |
