ODM Professional Portable Dot Peen Marking Machine For Steel Sheet

Good quality Fiber Laser Marking Machine for sales
Good quality Fiber Laser Marking Machine for sales
We bought the laser marking machine.it is good quality. Hope CHUKE have the good bussiness all the time

—— Alfanar Electrical System

We bought the laser marking machine.it is goog quality. Hope CHUKE have the good bussiness all the time

—— Alfanar Electrical System

Chuke have been working with us for over 10 years. They provide us with accessories for marking machines, so that our machines sell well in India.

—— EtchON Marks Control

We have already bought second laser marking machines at the beginning, which is compatible with our assembly line operation, fully automated marking, fast, safe and efficient marking.

—— Ford Company

I'm Online Chat Now

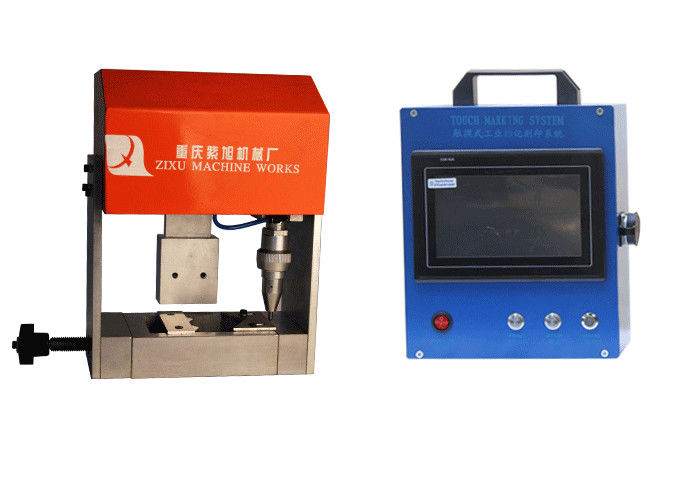

ODM Professional Portable Dot Peen Marking Machine For Steel Sheet

China ODM Professional Portable Dot Peen Marking Machine For Steel Sheet supplier

Large Image :  ODM Professional Portable Dot Peen Marking Machine For Steel Sheet

Product Details:

Place of Origin: China(mainland)
Brand Name: CHUKE
Certification: FDA,ISO,CE
Model Number: PMK-G01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1300-1600 per set
Packaging Details: Packing in carton,45*45*55cm
Delivery Time: after payment 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 600 sets per month
Contact Now
Detailed Product Description
Application Material: Steel, All Kinds Of Metal Materials Apply Industry: Automotive Chassis
Drive Type: Pneumatic Character: Stylus Pin Hardness:HRA93
Service: Establish User Files Product Name: ODM Free Sample Certificate Professional Supplier Dot Peen Machine For Steel Sheet
Marking Area: 40x80mm Marking Materials: Above HRC60 Need Special Stylus
Power: 300w
High Light:

dot peen marking systems

,

dot peen engraving machine

Odm Free Sample Certificate Dot Peen Machine For Steel Sheet


Principle:



Computer-controlled print pin in the X, Y two-dimensional plane by a certain trajectory to move at the same time, the print pin under the action of compressed air to do high-frequency impact movement to print a certain depth on the workpiece mark


Application:



Automobiles, motorcycles and other engines, pistons, body, frame, chassis, connecting rod, engine, cylinder and other parts number, name, trademark, date of production printing.
ODM Professional Portable Dot Peen Marking Machine For Steel Sheet
Portable Dot Peen Marking Machine parameter

model Pneumatic marking machine
weight 20kg
Machinpower <300w
Power supply 220v/110v
Strokefre quency 300times/s
Marking speed 2-5 characters(2x2mm)/s
Marking depth 0.01 to 1mm (Vary to the material)
Standard marking area 80x40mm,130x30mm,140x80mm,200x200mm



Usage method


The operator turns on the computer, connects the controller, ensures that each line is connected correctly and is stable.


Product features


 Pneumatic marking machine has the advantage of markings can be deep, shallow, whether it is graphics, text, product serial numbers, trademarks, marking a permanent permanent mark, in general, marking the workpiece less than about 1600 (10 A 5mm high character calculation), can choose pneumatic marking machine.


FAQ


Q: How do your factory do regarding quality control?

A: Quality is priority. Each GS laser machine will be tested by 24 items.After all the 24 items passed, then our QA do 48~72 hours reliability test.


Design feature

Double column linear bearing structure, no horizontal gap, positioning more accurate and more freedom.


After service


 We can provide picture / videos / marking sample for your checking.


Packing and shipping

Only one mantissa box is allowed after each batch of product is packed. That is, the number of packages per batch only allows one decimal.

Delviery time 7-15 working days
Type of shipping Express,air or sea
Terms of payment T/T,credit card,,paypal
package size 45*45*55cm
Gross weight 22KG



Chuke Factory

Chongqing CHUKE is a professional R & D, production and sales of marking machines and accessories products of the flagship industry leader, but also marking the professional production base supporting, steel cylinder marking machine quote, has reached the marking machine, pneumatic marking machine, electric Marking machines, laser marking machine with an annual output of more than 500, marking needle (including pneumatic and electric) more than 100,000 sets of annual output.
