Product Details:
Payment & Shipping Terms:
|
| Advantage: | Free Shipping | Application: | Flange |
|---|---|---|---|
| Drive Type: | Electric | Controller: | Touch Screen |
| Software: | Insert ThorX6 | Product Name: | Small China Zixu Factory Electric Pinmark Machine Without Air Pressure |
| Marking Area: | 140x80mm | Marking Materials: | Above HRC60 Need Special Stylus |
| Repeat Accuracy: | 0.02-0.04mm | Power: | 300w |
| High Light: | electric engraving machine,pin stamping machine |
||

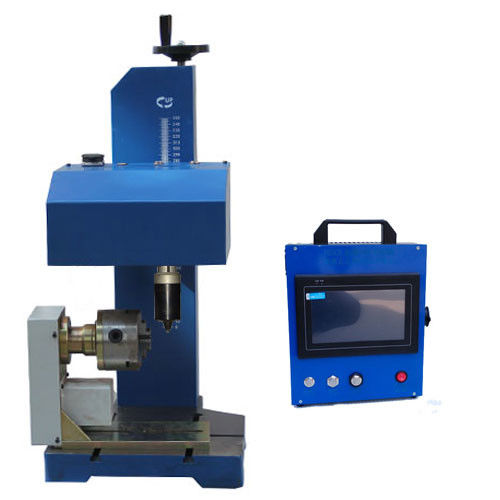

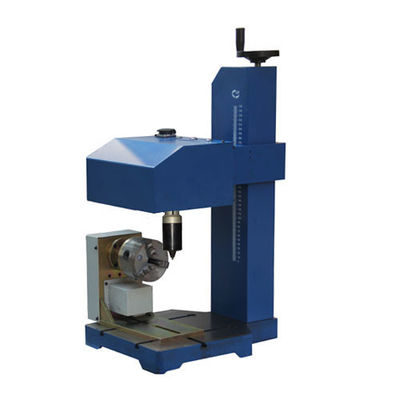

Big Flange Electric Pin Marking Systems Be Provided By Marking Manufacturer
Working Principle
Electric marking machine using electromagnetic energy instead of pneumatic high-frequency micro-impact dot matrix printing.
Application Range
It is suitable for printing trademarks, technical parameters, numbers, dates, names and other contents on various product signs. Special signs such as stainless steel, copper, aluminum and other metal signs, PVC plastic, stickers and leather,
Instructions
Adjust the controller to check whether the controller can effectively control the machine. And reset the nose.
Product Features
Fluent in font, sleek and upscale, with strong outline of the needle, corners of the needle, set the needle position (X, Y coordinates) function, which greatly improves the work efficiency and reduce labor intensity.
| Marking area: | 140X80mm(or customized) |
| Marking speed: | 3-5 characters / second (2X2) |
| Software application system: | windows98windowsXP |
| Marking depth: | 0.01-1.2mm Adjustable (depending on the material) |
| Accuracy Assurance: | ≤ 0.01 |
| Height adjustment Range: | 330mm |
| Automatic storage: | can automatically store files and print content, 3L / S |
| analog display: | you can directly observe the marking on the screen |
| Print pin impact frequency: | 300 beats / second |
| Marking content: | Chinese and English characters, numbers, graphics (By marking software editing) Graphic |
| Editing: | Serial number (serial number) Automatic printing, storage, weight automatic detection, can identify the bar code |
| Marking material: | all kinds of metal (HRC85 hardness below), all kinds of hard materials Plastic bakelite, etc.) |
| Power: | 300W |
| Working voltage: | 110VAC / 220VAC |
| Delviery time: | 3-15 working days |
| Type of shipping: | Express,air or sea |
| Terms of payment: | T/T,credit card, |
| package size: | 45X54X90cm |
| Gross weight: | 70KG |
| Warranty time: | one year |
Service Content
More peace of mind:
Free shipping, free installation and commissioning, free operation and maintenance personnel training.
FAQ
Where is your marking machine applied to?

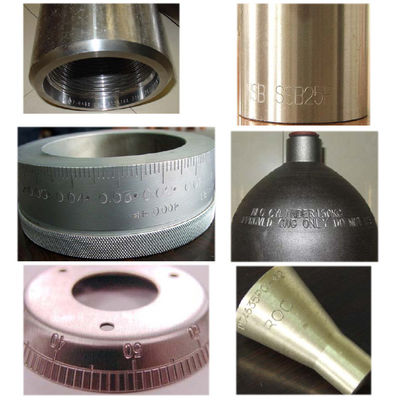

To be applied in Automobile, bodywork of motorcycle, car frame, automotive chassis, engine, mechanical part, machine tool, metal pipe, gear, pump body, valve and various hardness plastic products.
Design Features
Set the number of reset function, each time without marking the need for zero detection, and can be positive and negative sequence marking greatly saves time and improve efficiency;
Software and automatic control fixture seamlessly connected, you can set the delay clamping, delay printing.
Automation program high: serial number of the printer can be automatically postponed, do not have to manually input, thereby reducing manual misuse,
At the same time can also improve product labeling efficiency
Factory Introduction
Chongqing Chuke intelligent machinery equipment Co.,ltd is a subsidiary of Chongqing ZiXu Machine works, is a professional engaged in marking machine design and industrial enterprises. Founded in 2006, covers an area of 2000 square meters. In annual production of 500 sets of laser marking machine,500 sets dot peen marking machine and electric marking machine,more over 100000 pieces marking stylus.Products are exported to all countries in the world,Such as the India, Spain, France, Germany, the United States, Brazil, South Korea and other more than and 30 countries . After we continue to improve and perfect the product quality has been achieved CE, ISO9001, FDA, TUV certificate, won the domestic and foreign large.
Robust paper box with wood tray or as per required.
The delivery lead time would be 5 days against down payment.
Packing by corrugated board boxes, Light weight, freight is lower
Lifelong maintenance and spare parts supply.
