Product Details:
Payment & Shipping Terms:
|
| Colour: | Orange | Application: | Metal,steel,aluminm |
|---|---|---|---|
| Compressed Air: | 0.2-0.6Mpa | Connection: | USB And RS-232 |
| Marking Directions: | Horizontal,gradient,flat,circular Arc Surface | Gross Weight: | 20KG |
| Marking Area: | 40x80mm | Service: | 24 Hours Online Service |
| Advantage: | Distributor | Power: | 300w |
| High Light: | dot peen marking systems,portable dot peen marker |
||

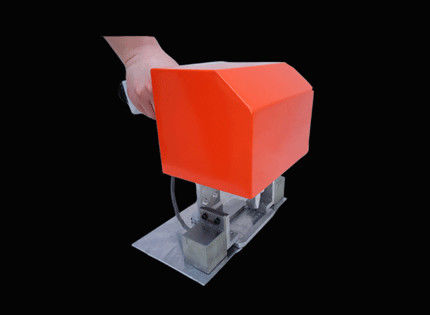

Customized Dot Peen Engraving Machine For Marking Metal Sheet Qr Code
Principle:
Through ergonomic design, combined with practical experience, so that staff better operation marking.
Application:
Automobiles, motorcycles and other engines, pistons, body, frame, chassis, connecting rod, engine, cylinder and other parts number, name, trademark, date of production printing.
Portable Dot Peen Marking Machine parameter
| model | Pneumatic marking machine |
| weight | 20kg |
| Machinpower | <300w |
| Power supply | 220v/110v |
| Strokefre quency | 300times/s |
| Marking speed | 2-5 characters(2x2mm)/s |
| Marking depth | 0.01 to 1mm (Vary to the material) |
| Standard marking area | 80x40mm,130x30mm,140x80mm,200x200mm |
Usage method
Open the software, marking machine basic testing. Including the electromagnet test, empty walk speed test, needle stability test.
Product features
Pneumatic marking can also be easily integrated in the industrial production line, our marking head is designed to be small, strong, easy to install. From plastic to the hardest steel (max. 65HRC) they mark needles at very high speeds on all materials.
FAQ
Q:factory certicify? Our laser machines has gained CE, FDA authentication.
Our GM said, producing unqualified products is producing rubbish. GS people always keep quality in mind.
Design feature
Double column linear bearing structure, no horizontal gap, positioning more accurate and more freedom.
After service
We can provide picture / videos / marking sample for your checking.
Packing and shipping
Only one mantissa box is allowed after each batch of product is packed. That is, the number of packages per batch only allows one decimal.
| Delviery time | 7-15 working days |
| Type of shipping | Express,air or sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 45*45*55cm |
| Gross weight | 22KG |
Chuke Factory
Chuke Machinery Factory was established in 2006, before my company staff have many years of machining experience, so initially I was established in the production of marking the needle business, with the customer's needs, our company has gradually achieved business expansion , So far the company's technology has been in the forefront of domestic counterparts, customized business reached a new level, both pneumatic marking machine or laser marking machine have been recognized by customers, marking needle is occupied the vast domestic market Part of the market. Our products have been certified by world famous quality system, including: ISO, CE, PDA, TUV and so on. Recently, the company is capturing new technical problems and providing brand new services to customers with higher requirements. Our products are completely free within the warranty period of repair and replacement, the warranty period only charge a cost, at any time to solve the urgent needs of customers, in order to solve customer needs for the purpose. No matter where you are, we can serve you.
