| Needle Material: | Aluminum | Colour: | Purple |
|---|---|---|---|
| Marking Characteristic: | Marking Shallow | Apply For: | VIN Code |
| Advantage: | European Standard | Product Name: | Engraving Service Dot Peen Pneumatic Marking Machine For Metal |
| Marking Area: | 140*80mm | Marking Materials: | Above HRC60 Need Special Stylus |
| Compressed Air: | 0.2-0.6Mpa | Power: | 300w |
| High Light: | dot peen marking systems,portable dot peen marker |
||

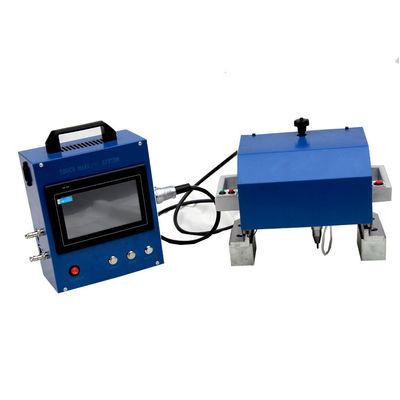

Engraving Service Dot Peen Pneumatic Marking Machine For Metal
Principle:
Marking machine control system will send the computer control signals sent to the pneumatic or implementation of the system,
Marking machine control system sends the control signal sent by the computer to the stepper motor or servo motor
The computer will edit the marking files generated digital signal sent to the marking machine
Application:
Automobiles, motorcycles and other engines, pistons, body, frame, chassis, connecting rod, engine, cylinder and other parts number, name, trademark, date of production printing.
Portable Dot Peen Marking Machine parameter
| model | Pneumatic marking machine |
| weight | 20kg |
| Machinpower | <300w |
| Power supply | 220v/110v |
| Strokefre quency | 300times/s |
| Marking speed | 2-5 characters(2x2mm)/s |
| Marking depth | 0.01 to 1mm (Vary to the material) |
| Standard marking area | 80x40mm,130x30mm,140x80mm,200x200mm |
Usage method
Shutdown:
⑴ off the computer;
⑵ off control box power;
⑶ cut off the total power supply;
⑷ cut off gas source.
Product features
Pneumatic marking can also be easily integrated in the industrial production line, our marking head is designed to be small, strong, easy to install. From plastic to the hardest steel (max. 65HRC) they mark needles at very high speeds on all materials.
FAQ
Can make any desired graphic pattern through AutoCAD; use marking software to edit Chinese and English characters, numbers, trademark dates, serial numbers, etc., the word height, word width, font can be set by the user, and can be edited.
Design feature
Marking head is a needle vibration mechanism, including the needle, spring, seal;
Air pressure regulator is used to supply air pressure to vibrate the needle and adjust the impact of the needle.
After service
Free training for machines installation and operation of the staffs.
Packing and shipping
Only one mantissa box is allowed after each batch of product is packed. That is, the number of packages per batch only allows one decimal.
| Delviery time | 7-15 working days |
| Type of shipping | Express,air or sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 45*45*55cm |
| Gross weight | 22KG |
Chuke Factory
Chuke Intelligent Machinery & Equipment Co., Ltd specializes in the development and production of pneumatic marking machine, pneumatic marking machine parts, pneumatic marking needle. R & D and production of marking needle sales 11 years, is the earliest production marking needle manufacturers. Marking needle production from the ordinary lathe equipment to fully automatic CNC equipment, marking needle technology is the beginning of several processes, and now has a fully automated equipment, a process is completed, fully guaranteed product quality, accuracy, concentricity and yield issues. So purple Asahi marking needle has been fully able to meet the various types of marking machine needs. Has been throughout the country and the world. Market share of 70%. Purple Asahi is the real marking needle experts.
