Product Details:
Payment & Shipping Terms:
|
| Feature: | Fast Speed | Marking Product: | Ear Tag |
|---|---|---|---|
| Marking Material: | Plastic | Service: | Customized |
| Software: | EZCAD | Product Name: | Desktop Mini Laser Engraving Machine |
| High Light: | fiber laser marker,fiber laser engraving machine |
||
Working principle
A laser marking machine is a permanent mark on the surface of a variety of materials with a laser beam. The effect of marking is to expose the deep material through the evaporation of the surface material, thereby engraving fine patterns, trademarks and words.
|
Laser power |
10W/20/30/50W |
| Laser Wavelength | 1064nm |
| Light beam quality | <2 |
| Repeating precision | ±0.002 |
| Marking range | 110x110mm(customize) |
| Marking depth | 0.01~1mm |
| Marking speed | 7000mm/s |
| Minimum character | 0.15mm |
| Minimum line width | 0.01mm |
| Repeating frequency | 20KHz~30KHz |
| Marking content |
Graphics, text, bar codes, two-dimensional code, |
| Graphic format supported | bmp,png,ai,dxf,dst,plt |
|
|
220V±10%/50Hz/4A |
| Size | 570mmx270mmx200mm |
| Gross Weight | 135kg |
| Control interface | standard USB port |
| Laser module life | 100000~200000 hours |
Application
Pipe laser marking machine can cooperate with rotating jig to mark the pipe above all kinds of dimensions without worrying about the different diameter of the metal pipe. The laser pipe marking machine can mark the pipe diameter of 80-200mm in the first moment. If it is larger than this Tube radius, optional portable laser marking machine.
First, plug in the power of the machine, turn on the computer, laser, red. Make the machine in a usable state, insert the wire of the rotating clamp, and clamp the pipe on the rotating clamp. Set the diameter of the workpiece in the software, select the laser, input the content that needs to be marked finally, and select the rotating text to mark it.
FAQ
Laser marking machine marking range is how much? Marking range of 100x100mm, 200x200mm, 300x300mm optional
Design feature

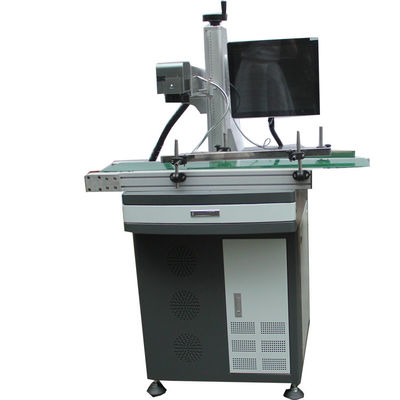

Fiber laser marking machine is my company using the world's advanced laser technology developed from a new generation of laser marking machine system. Using laser output fiber laser, high-speed scanning galvanometer system to achieve marking function.
Product features
Fiber laser marking machine is my company using the world's advanced laser technology developed from a new generation of laser marking machine system. Using laser output fiber laser, high-speed scanning galvanometer system to achieve marking function.
Packing and shipping
Packaging Details
Strong veneer case
Delivery Time
Shipped in 15 days after payment
Aftersale service
Packaging Details
Strong veneer case
Delivery Time
Shipped in 15 days after payment
Chuke Factory
1. 24 hours Technical support by Email or Calling .
2. English manual and CD video for machine using and maintaining.
3. Hardware: three years for machine
Software: Whole life on update for free.
Maintenance and technological support: Whole life.
Contact Person: zoya zhou
