Product Details:
Payment & Shipping Terms:
|
| Service: | Shipping：express And By Sea | Support Graphics Formates: | Shift Codes Exquisite Pattern Production Date |
|---|---|---|---|
| Drive Type: | Pneumatic | Controller: | PC Controller |
| Application Material: | Stainless Steel Material | Product Name: | More Than 10 Years OEM Experience Expiry Date Metal Vin Punching Machine |
| Marking Area: | 40x80mm | Marking Materials: | Above HRC60 Need Special Stylus |
| Working Environment: | Clean And Dust Free Or Dust Less | Voltage: | 110V/220V |
| High Light: | laser printing machine,pneumatic metal stamping machine |
||

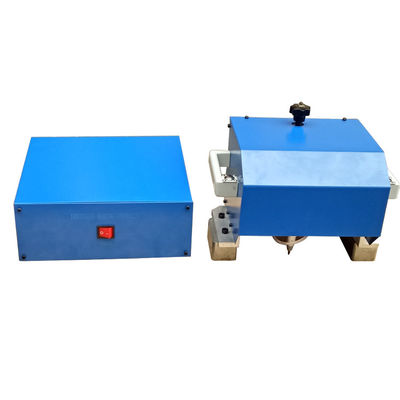

More Than 10 Years Oem Experienceexpiry Date Metal Vin Punching Machine
Principle:
Pneumatic marking machine is controlled by the solenoid valve compressed air (0.2-0 .8 Mpa) drive high-hardness marker needle to a higher frequency (300 / s or so) up and down vibration marking.
Application:
A variety of products, vehicles, equipment, product label marking.
Portable Dot Peen Marking Machine parameter
| model | Pneumatic marking machine |
| weight | 20kg |
| Machinpower | <300w |
| Power supply | 220v/110v |
| Strokefre quency | 300times/s |
| Marking speed | 2-5 characters(2x2mm)/s |
| Marking depth | 0.01 to 1mm (Vary to the material) |
| Standard marking area | 80x40mm,130x30mm,140x80mm,200x200mm |
Usage method
Operators press certain rules, the marking machine to print the characters and graphics input to the computer.
Make the computer control to print the needle character, the trace of the figure moves.
Product features
Pneumatic marking machine using pneumatic printing, as long as there is power and gas source to work.
FAQ
Mechanical maintenance and care:
1.X, Y-axis linear guide should be kept clean, do not allow dust or iron to stay on the top, so as not to affect the slide accuracy.
2.X, Y-axis linear guide plus 20 # above a little oil to keep the linear guide lubrication.
3. Regularly check the X, Y-axis timing belt tension.
4. Keep the marking head liner clean, do not allow dust, iron filings into the cylinder or copper sleeve.
5. Pressure regulator valve should be free of water, no impurities.
6. Limit switch does not allow oil and iron filings and so on.
7. Compressed air should meet: clean, anhydrous, no impurities.
Design feature
Pneumatic marking machine marking Chinese characters, English characters, numbers, etc., at any time change, without curing chip.
After service
Free training for machines installation and operation of the staffs.
Free samples marking of customer provided.
Packing and shipping
Woodencase with waterproofing felt in side airplane transportation & ocean transport.
| Delviery time | 7-15 working days |
| Type of shipping | Express,air or sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 45*45*55cm |
| Gross weight | 22KG |
Chuke Factory
Chuke Intelligent Machinery & Equipment Co., Ltd specializes in the development and production of pneumatic marking machine, pneumatic marking machine parts, pneumatic marking needle. R & D and production of marking needle sales 11 years, is the earliest production marking needle manufacturers. Marking needle production from the ordinary lathe equipment to fully automatic CNC equipment, marking needle technology is the beginning of several processes, and now has a fully automated equipment, a process is completed, fully guaranteed product quality, accuracy, concentricity and yield issues. So purple Asahi marking needle has been fully able to meet the various types of marking machine needs. Has been throughout the country and the world. Market share of 70%. Purple Asahi is the real marking needle experts.
