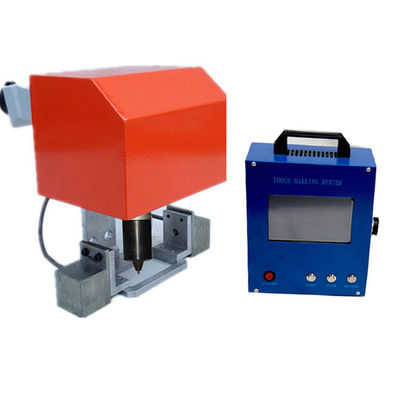

High Precision Electric Marking Machine Desktop Serial Number Dot System For Cast Iron

Good quality Fiber Laser Marking Machine for sales
Good quality Fiber Laser Marking Machine for sales
We bought the laser marking machine.it is good quality. Hope CHUKE have the good bussiness all the time

—— Alfanar Electrical System

We bought the laser marking machine.it is goog quality. Hope CHUKE have the good bussiness all the time

—— Alfanar Electrical System

Chuke have been working with us for over 10 years. They provide us with accessories for marking machines, so that our machines sell well in India.

—— EtchON Marks Control

We have already bought second laser marking machines at the beginning, which is compatible with our assembly line operation, fully automated marking, fast, safe and efficient marking.

—— Ford Company

I'm Online Chat Now

High Precision Electric Marking Machine Desktop Serial Number Dot System For Cast Iron

China High Precision Electric Marking Machine Desktop Serial Number Dot System For Cast Iron supplier
High Precision Electric Marking Machine Desktop Serial Number Dot System For Cast Iron supplier High Precision Electric Marking Machine Desktop Serial Number Dot System For Cast Iron supplier High Precision Electric Marking Machine Desktop Serial Number Dot System For Cast Iron supplier

Large Image :  High Precision Electric Marking Machine Desktop Serial Number Dot System For Cast Iron

Product Details:

Place of Origin: China(mainland)
Brand Name: ZIXU
Certification: FDA,ISO,CE
Model Number: EMK-D01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1300-1600 per set
Packaging Details: Packing in carton,45*45*55cm
Delivery Time: after payment 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 600 sets per month
Contact Now
Detailed Product Description
Colour: Red Application: Engine
Drive Type: Electric Controller: Touch Screen
Software: ThorX7 Product Name: Small China Zixu Factory Electric Pinmark Machine Without Air Pressure
Marking Area: 40x80mm Marking Materials: Above HRC60 Need Special Stylus
Repeat Accuracy: 0.02-0.04mm Power: 300w
High Light:

electric engraving machine

,

pin stamping machine

High Precision Desktop Serial Number Dot System For Cast Iron Marking




Working Principle
Electric marking machine can choose desktop and handheld, through the solenoid valve attached to the marking objects, accurate marking.


Application Range
No deformation of the entire sign printing, is conducive to installation, writing corrosion-resistant, wear-resistant ability, long lasting and reliable writing.

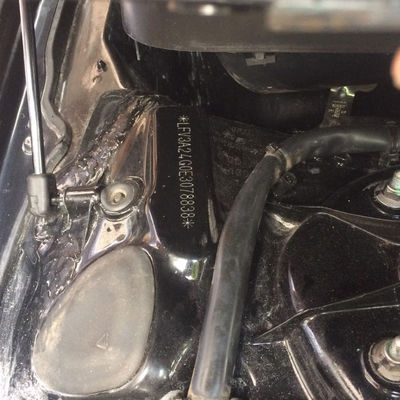

VIN marking machine


Instructions

Mark, mark the information for testing. To understand the marking is in line with the requirements, to review, modify.




Product Features

Low noise, simple operation Software and automatic control fixture seamless connection, can be set to delay clamping, delay printing, etc.

Marking area: 40X80mm(or customized)
Marking speed: 3-5 characters / second (2X2)
Software application system: LCD touch screen
Marking depth: 0.01-1.2mm Adjustable (depending on the material)
Accuracy Assurance:  ≤ 0.01
Height adjustment Range:  10mm
Automatic storage: can automatically store files and print content, 3L / S
analog display: you can directly observe the marking on the screen
Print pin impact frequency: 300 beats / second
Marking content: Chinese and English characters, numbers, graphics (By marking software editing) Graphic
Editing: Serial number (serial number) Automatic printing, storage, weight automatic detection, can identify the bar code
Marking material: all kinds of metal (HRC85 hardness below), all kinds of hard materials Plastic bakelite, etc.)
Power: 300W
Working voltage: 110VAC / 220VAC
Delviery time: 3-15 working days
Type of shipping: Express,air or sea
Terms of payment: T/T,credit card,
package size: 45X45X55cm
Gross weight: 23KG
Warranty time: one year


Service Content
More peace of mind:
Free shipping, free installation and commissioning, free operation and maintenance personnel training.
marking machine
FAQ

What are the marking contents?

Alphanumeric info, date matrix or dot matrix 2D codes, shift codes, barcode, serial number, date, VIN code, time, letter, figure, logo, graphics and etc.


Design Features

With continuous revocation and recovery capabilities, do not have to worry about misuse;
USB interface transmission, plug and play, subvert the old product must use the history of parallel port transmission;
Interface lock function, marking process without having to worry about other people change.

marking after becoming a permanent mark on long, generally marked workpiece weight of less than about 1600(10 5mm high character calculation)


Factory Introduction
Chongqing Chuke intelligent machinery equipment Co.,ltd is a subsidiary of Chongqing ZiXu Machine works, is a professional engaged in marking machine design and industrial enterprises. Founded in 2006, covers an area of 2000 square meters. In annual production of 500 sets of laser marking machine,500 sets dot peen marking machine and electric marking machine,more over 100000 pieces marking stylus.Products are exported to all countries in the world,Such as the India, Spain, France, Germany, the United States, Brazil, South Korea and other more than and 30 countries . After we continue to improve and perfect the product quality has been achieved CE, ISO9001, FDA, TUV certificate, won the domestic and foreign large.

High Precision Electric Marking Machine Desktop Serial Number Dot System For Cast Iron

Packing And Shipping

We are VIP customer for both DHL and TNT express, the end customer can enjoy fast door to door service with reasonable freight cost.

High Precision Electric Marking Machine Desktop Serial Number Dot System For Cast Iron
After-Sales Service

Free training for machines installation and operation of the staffs.
