1064nm Fiber Laser Marking Machine 7000MM Marking Speed , Metal Laser Engraving Machine

China 1064nm Fiber Laser Marking Machine 7000MM Marking Speed , Metal Laser Engraving Machine supplier

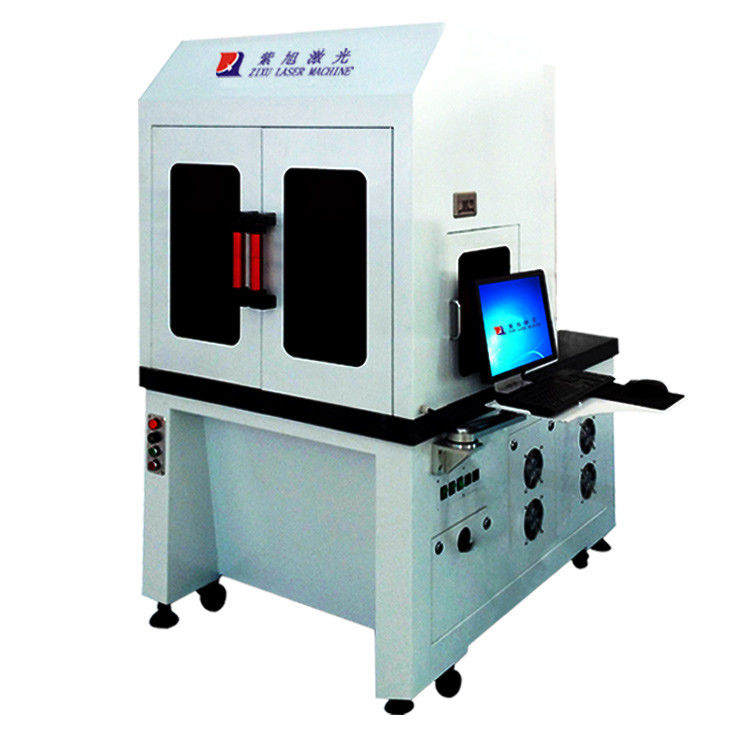

Large Image :  1064nm Fiber Laser Marking Machine 7000MM Marking Speed , Metal Laser Engraving Machine

Product Details:

Place of Origin: China,Chongqing
Brand Name: Chuke
Certification: CE,FDA,ISO9001
Model Number: FIMM-A01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 3500-9500/Set
Packaging Details: 95x81x122cm wooden case
Delivery Time: 3-8 days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Service: Technical Service Maximun Speed: 7000mm/s
Marking Material: Copper And Aluminum Alloy Model: FLMM-A01
Feature: Cutlery Wear
High Light:

fiber laser marker

,

fiber laser marking system

Marking Speed Fiber Laser Engraving Machine For Sale


Working principle

Because of the non optical lens in the resonator of the fiber laser, it has the advantages of free adjustment, maintenance free and high stability, which is incomparable to the traditional laser.



Fiber laser marking machine parameter

Laser power

10W/20/30/50W
Laser Wavelength 1064nm
Light beam quality <2
Repeating precision ±0.002
Marking range 110x110mm(customize)
Marking depth 0.01~1mm
Marking speed 7000mm/s
Minimum character 0.15mm
Minimum line width 0.01mm
Repeating frequency 20KHz~30KHz
Marking content

Graphics, text, bar codes, two-dimensional code,
date, batch number, serial number

Graphic format supported bmp,png,ai,dxf,dst,plt



220V±10%/50Hz/4A
Size 570mmx270mmx200mm
Gross Weight 135kg
Control interface standard USB port
Laser module life 100000~200000 hours



Application

Fiber laser marking machine marking sample

widely used in many fields of graphics and text of integrated circuit chip, computer accessories, industrial bearings, watches, electronic and telecommunication products, aerospace devices, auto parts, household appliances, hardware tools, moulds, wire and cable, food packaging, jewelry, tobacco and military things, and mass production line.
1064nm Fiber Laser Marking Machine 7000MM Marking Speed , Metal Laser Engraving Machine

Usage method

To prevent optical fiber breaking, the connection between pump source and laser head of laser system is connected by optical fiber. Users should ensure that the bending diameter of optical fiber is greater than 300mm when used or transported. The serious bending of the fiber will result in the optical fiber break and the laser system is not working properly.



Product features

Small volume (without water cooling device, use of air cooling), good beam quality (base die), maintenance free, etc.


FAQ

What is the difference between fiber laser marking machine and CO2 laser marking machine? The fiber laser marking machine has high electro-optical conversion efficiency, and the whole machine can not consume 500W. It is the 1/10 of the lamp pumped solid-state laser marking machine, which greatly saves energy consumption. The processing speed is 2-3 times that of the traditional marking machine. The operation life of the laser is up to 100000 hours.
(2) CO2 laser marking machine: laser power is large, it can be applied to engraving and cutting various non-metallic products, and the laser runs for 20000-30000 hours.




Design feature

It has the characteristics of good beam quality, small volume, fast speed, long working life, flexible and convenient installation, and no maintenance.



Product features

Because of the non optical lens in the resonator of the fiber laser, it has the advantages of free adjustment, maintenance free and high stability, which is incomparable to the traditional laser.



Packing and shipping

95×80×122cmpacked by wooden case,packing size,for desktop model:95*80*122cm


Aftersale service

The spirit of "to provide the most satisfactory products and services for customers" business purposes, Chongqing purple Asahi machinery factory solemn commitment: to ensure the advanced, reliability and stability of equipment at the same time, continue to improve the quality of service to customer service delivery from the sale, debugging, maintenance and management of equipment, technical services, technical training and other users in all aspects, to ensure that customers can get the best service, customer satisfaction, rest assured.
