15 Watt Affordable Co2 Laser Marking Machine For Plastic Packing Box

China 15 Watt Affordable Co2 Laser Marking Machine For Plastic Packing Box supplier

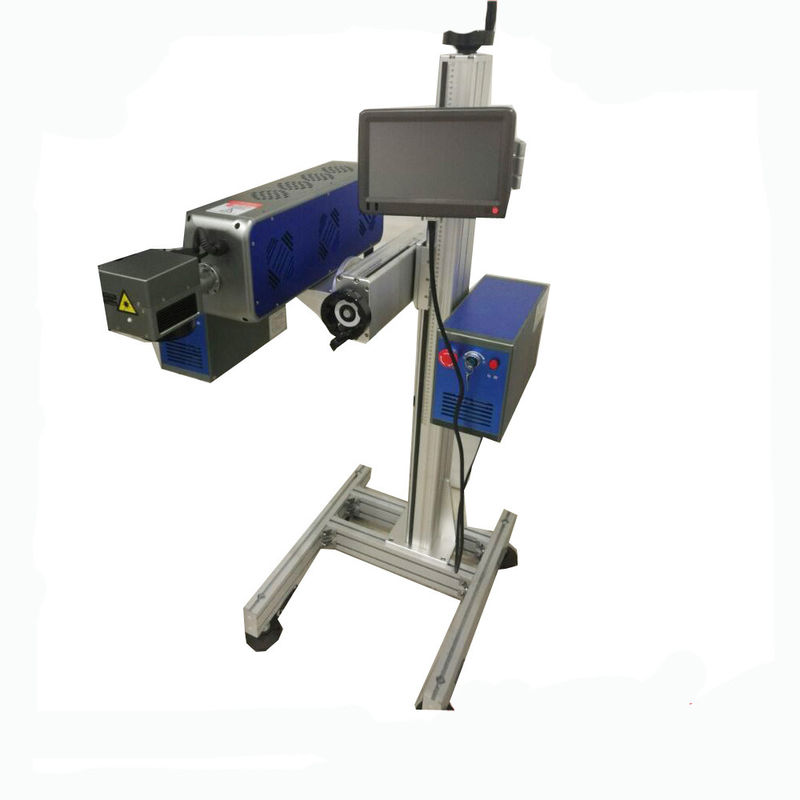

Large Image :  15 Watt Affordable Co2 Laser Marking Machine For Plastic Packing Box

Product Details:

Place of Origin: Chian(mainland)
Brand Name: Chuke
Certification: ISO,CE,FDA
Model Number: CLMM-A01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 4500-7500 per sets
Packaging Details: Packing in wooden case,95*81*122cm
Delivery Time: after payment 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram,Paypal
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Product Name: Co2 Laser Marking Machine For Plastic Packing Box Marking Speed: 7000mm/s
Application Material: Textile,denim Laser Power: 15w
Laser Source: DAVI Application: Garment Industry
Marking Area: 100*100mm Service: Satified Aftersale Service
Support Graphics Formates: Shift Codes
High Light:

co2 laser engraving machine

,

laser marking equipment

15W Affordable Laser Marking Machine For Plastic Packing Box



Working principle


CO2 laser marking machine: the use of CO2 gas into the discharge tube as a laser medium, when the electrode plus a high voltage discharge tube glow discharge, gas molecules can release the laser, the laser energy amplification A laser beam is formed on the material.


co2 laser marking machine parameter

Model number CO2 laser marking machine
Laser power 15w/30w
Maximum speed 7000mm/s
Graphics formats PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO.DXF
Quality of light plate M2<2
Power stability (8h)<+-1% rms
Pulse repetition frequency 20KHZ-60KHZ
Power <800w
Minimum line width 0.1mm
Minimum character 0.4mm
Laser wavelength 10.6um/10.2um
Marking size 100x100/175x175/300x300mm
Cooling method Air cooling
Working voltage 110/220v+-10%,50/60HZ



Application



A variety of non-metallic, such as ABS, PVC, epoxy, silicon wafers, paint (electronic components package insulation, car keys, cell phone keys, audio translucent keys) and so on.




Usage method

Enter the marking in the marking software, complete font, size, marking the location of the adjustment after the start of marking.


Product features

Chongqing Chuke Machinery Factory long-term CO2 laser marking machine research and development production and sales and marking lettering processing services, CO2 laser marking machine is widely used in various assembly line processing, following the inkjet printer is another new product, product The late use of supplies low, low cost and so on.

15 Watt Affordable Co2 Laser Marking Machine For Plastic Packing Box


FAQ



CO2 laser marking machine Laser tube light voltmeter instructions ① light is not normal Light guide joint fever is common in the light guide joint loose and the laser tube is not installed. Inspection method: the same light correction. Remedy: Replace or adjust the light guide, correct the light path. ② laser power loss is common in laser tube aging. Check: Check the voltage regulator with a multimeter voltage file, check the working voltage of the laser tube with a high pressure gauge. Remedy: Replace aged laser tubes and replace damaged components.



Design feature

Carbon dioxide integrated laser printer, all components will be integrated in a cabinet, with a compact, easy to use and so on. Low-power carbon dioxide marking machine can be made more portable. Its small size and strong mobility make it the first choice for pharmaceutical companies, cosmetic companies, food companies and tobacco labeling customers.

Packing and shipping



Product delivery or shipment loading should be handled gently, the products are neatly arranged, and the safety of the product transport should be considered.



Delviery time 7-15 working days
Type of shipping Express,air or sea
Terms of payment T/T,credit card,,paypal
package size 95x55x83cm
Gross weight 188KG




Aftersale service

Installation and commissioning:
My company based on the contract, the equipment within the required time to secure the equipment shipped to the designated installation site, and send technical service engineers to the scene to install.

Chuke Factory


Chongqing Chuke has a first-class equipment and high-quality R & D team, tailored to customers the main products: laser marking machine, laser cutting machine, laser welding machine, electric marking machine, pneumatic marking machine, pneumatic tapping Machine, electro-erosion marking machine, manual embossing machine, etc. can provide customers with integrated marking, testing, logistics tracking a set of technical solutions, eliminating the need for customer fragmented procurement and equipment matching complex procedures to minimize procurement costs .
