| Name: | Laser Part Marking Machine | Color: | Blue |
|---|---|---|---|
| Marking Content: | Batch Code | Service: | 24 Hours Online Service |
| Advantage: | Computerized | Marking Head Brand: | Scanlab |
| High Light: | deep laser engraving machine,nameplate marking machine |
||

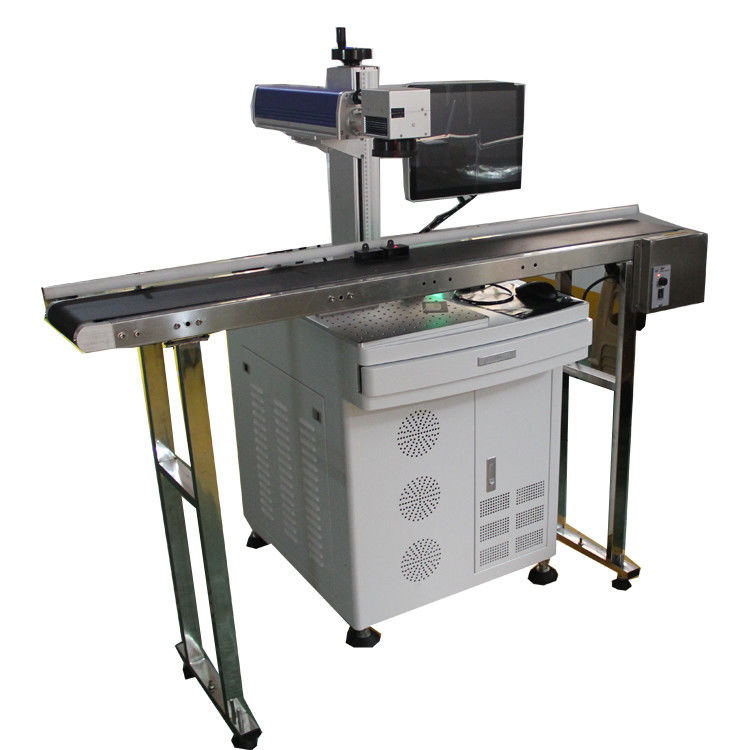

Long Life Laser Part Marking Machine For Date Time With Convery Belt
Principle
Fiber laser marking machine is using a laser beam to make a permanent mark on the surface of a variety of materials
Application:
The packaging industry and the electronic communications industry of the mobile phone shell, electronic components
Parameter
| type | Fiber laser marking machine |
| Size | 75*65*145cm |
| Gross Weight | 160kg |
| Laser power | 10/20/30/50 w |
| Laser wavelength | 1064nm |
| Power supply | 220V±10%/50Hz/4A |
| Repeating precision | ±0.002 |
| Repeating frequency | ±0.002 |
| Marking range | 110x110mm(customize) |
| Marking depth | 0.01~1mm |
| Marking speed | 7000mm/s |
| Minimum character | 0.15mm |
| Minimum line width | 0.01mm |
| Marking content |
Graphics, text, bar codes, two-dimensional code, date, batch number, serial number |
Usage method
All PLT file positions should not be fixed at random to prevent file damage
When the computer is dead or the software does not respond, the vibrating mirror switch should be shut down immediately
Product features
Unlike traditional laser marking machine that can only mark static objects, the difference is: in the process of marking, products flow continuously on the production line, which greatly improves the efficiency of production and makes the laser machine adapt to the requirements of industrial production.
FAQ
The wide application of optical fiber laser marking machine in automobile industry
With the rapid development of the social economy, many automobile industries have gradually shifted from the traditional pneumatic marking machine to the optical fiber laser marking machine. On some parts, the marking machine is permanently marked and labelling to create the perfect effect at the same time.
The cost of production is also greatly reduced, and the air has no pollution in the car. As follows, the 10W optical fiber laser marking machine is used for processing. The whole cycle takes only 5 seconds. It is conceivable that this efficiency is one point.
The clock can be processed by 12 sets. At present, the car has become an indispensable means of transportation in today's society. Therefore, the wide application of the optical fiber laser marking machine in the automobile industry is the inevitable trend, and it also plays a great role.
Packing and shipping
Packing by wooden case, more security delivery with heavier weight and higher freight
| Delviery time | 3-10days |
| Type of shipping | Express,air or sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 70x67x130cm |
| Gross weight | 160KG |
After service
In addition to developing user technical advisory services, the company's maintenance center is also responsible for receiving and collecting user complaints and consulting information, ensuring that users' questions and requests can be processed in a timely manner, and tracking and verifying the treatment. At the same time, the use of the user archives is set up to provide the basis for the quality improvement of the products in the future. We will continue to work hard to provide our customers with the most satisfactory products and services.
