Air Cooling 10.55Um-10.63Um Co2 Laser Engraving Machine For Paper Marking

China Air Cooling 10.55Um-10.63Um Co2 Laser Engraving Machine For Paper Marking supplier

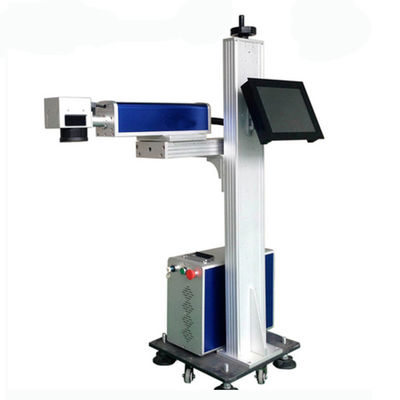

Large Image :  Air Cooling 10.55Um-10.63Um Co2 Laser Engraving Machine For Paper Marking

Product Details:

Place of Origin: Chian(mainland)
Brand Name: Chuke
Certification: ISO,CE,FDA
Model Number: CLMM-A01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 4500-7500 per sets
Packaging Details: Packing in wooden case,95*81*122cm
Delivery Time: after payment 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram,Paypal
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Product Name: Co2 Laser Marking For Paper Marking Laser Wavelength: 10.55Um-10.63Um
Marking Speed: 7000mm/s Control Interface: Standard USB Port
Application Material: Ceramics,rubber Laser Power: 30w
Application: Furniture Industry Service: Shipping Ways:by Sea,express,air
Support Graphics Formates: Production Date Profit Model: Wholesale
High Light:

co2 laser marker

,

co2 laser engraving machine

Air Cooling 10.55Um-10.63Um Co2 Laser Marking For Paper Marking

Working principle

The QR code is a tessellated 2D graphic that holds a lot of information in a very small area. Because two-dimensional code 2D graphics only require a 50% or less contrast ratio, small laser marker principle, the use of two-dimensional code graphics has greatly increased the number of laser applications.
co2 laser marking machine parameter

Model number CO2 laser marking machine
Laser power 15w/30w
Maximum speed 7000mm/s
Graphics formats PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO.DXF
Quality of light plate M2<2
Power stability (8h)<+-1% rms
Pulse repetition frequency 20KHZ-60KHZ
Power <800w
Minimum line width 0.1mm
Minimum character 0.4mm
Laser wavelength 10.6um/10.2um
Marking size 100x100/175x175/300x300mm
Cooling method Air cooling
Working voltage 110/220v+-10%,50/60HZ



Application

Bar codes and QR codes are used to trace automotive parts.
As a hot technology traceability of a variety of products nowadays, fully applicable to all types of automotive components. In the past, auto parts marking was mainly marked on the product serial number, the bar code was quickly applied to the identity of the auto parts, but the amount of information is too small, easy to travel it has not been universal. This problem until the birth of two-dimensional code technology was resolved.
The company is located in:
Two-dimensional code encoding also has built-in correction, even if for some reason part of the code is damaged, the code is still readable. Two-dimensional code can also be used in several different forms of decoding encryption, the protection of the device into the data, making this type of mark on the patent-valued components of greater value. Marking software in addition to automatically generate bar codes, but also supports DataMatrix, PDF417, QRCode and other two-dimensional code technology.

Air Cooling 10.55Um-10.63Um Co2 Laser Engraving Machine For Paper Marking
Usage method

Non-metallic marking low power requirements, unlike metal, when using CO2 marking, you need to reduce the power, CO2 laser focal length range, can achieve more high marking.


Product features

Chongqing Chuke Machinery Factory long-term CO2 laser marking machine research and development production and sales and marking lettering processing services, CO2 laser marking machine is widely used in various assembly line processing, following the inkjet printer is another new product, product The late use of supplies low, low cost and so on.

FAQ

Carbon dioxide laser marking machine laser tube is not bright ① voltmeter has an indication of a rare in the power line has an open circuit. Poor contact with the foot switch or manual switch. Check: Use a multimeter to measure. Disposal: repair or replacement. ② voltmeter indicates no rare broken fuse, or open the circuit. Check with a multimeter to measure.

Design feature

CO2 non-metallic laser marking machine, marking on all kinds of non-metallic materials, marking abrasion and corrosion resistance, permanent, pollution-free, high-speed
Powerful control software, you can automatically jump number, marking bar codes, two-dimensional code, product serial number, etc., and compatible with a variety of formats, pictures, fonts
No ink and other actual supplies, an investment, life-long use; marking fine, fast, high efficiency, low processing costs, power,
Marking a wide range of deep carving, marking large workpieces.


Packing and shipping

Regardless of sea, water, rail, and air transport, you must understand the shipping size requirements prior to shipping and, if necessary, contact your carrier.


Delviery time 7-15 working days
Type of shipping Express,air or sea
Terms of payment T/T,credit card,,paypal
package size 95x55x83cm
Gross weight 188KG




Aftersale service

The establishment of a global service information processing system.
First, lifelong enjoy software free upgrade. The company is located in:
Second, at any time to the company free to participate in a variety of technical training courses. The company is located in:
Third, feel free to call at any time. Quick reaction. 24 hours to solve the problem.

Chuke Factory


Chongqing Chuke has a first-class equipment and high-quality R & D team, tailored to customers the main products: laser marking machine, laser cutting machine, laser welding machine, electric marking machine, pneumatic marking machine, pneumatic tapping Machine, electro-erosion marking machine, manual embossing machine, etc. can provide customers with integrated marking, testing, logistics tracking a set of technical solutions, eliminating the need for customer fragmented procurement and equipment matching complex procedures to minimize procurement costs .
