Product Details:
Payment & Shipping Terms:
|
| Name: | Fiber Laser Engraver For Sale | Color: | Blue |
|---|---|---|---|
| Brand: | JCZ | Place Of Use: | Assembly Line |
| Marking Material: | Metal Plate | Marking Content: | Serial Code |
| High Light: | deep laser engraving machine,nameplate marking machine |
||

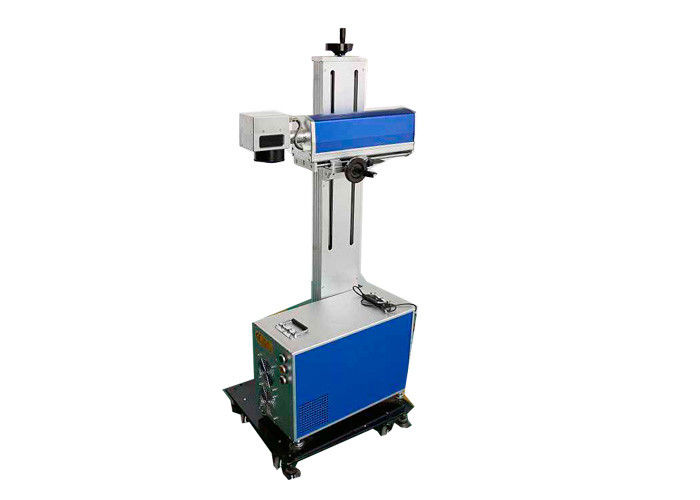

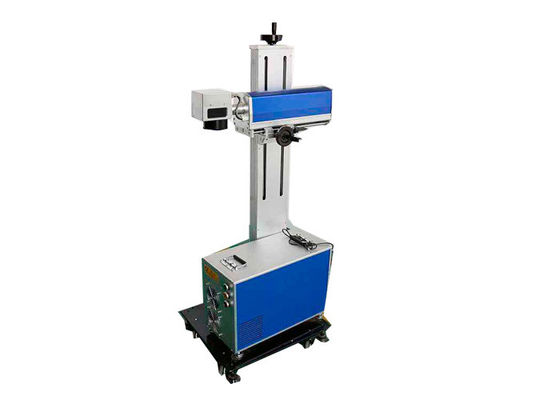

European Standard On-Line Marking Fiber Laser Engraver For Sale
Principle
A line marking machine is used to mark the surface of a variety of material with a laser beam. The effect of marking is to expose the deep material through the evaporation of the surface material, thereby engraving fine patterns, trademarks and words, numbers, etc.
Application
At the moment of online laser fiber laser marking machine equipment can perform various single dot matrix and vector font to print, print letters, numbers, symbols, icons, Chinese characters, one-dimensional bar codes, two-dimensional bar code, serial number, date and time, random number, real time variable
Parameter
| type | Fiber laser marking machine |
| Size | 75*65*145cm |
| Gross Weight | 160kg |
| Laser power | 10/20/30/50 w |
| Laser wavelength | 1064nm |
| Power supply | 220V±10%/50Hz/4A |
| Repeating precision | ±0.002 |
| Repeating frequency | ±0.002 |
| Marking range | 110x110mm(customize) |
| Marking depth | 0.01~1mm |
| Marking speed | 7000mm/s |
| Minimum character | 0.15mm |
| Minimum line width | 0.01mm |
| Marking content |
Graphics, text, bar codes, two-dimensional code, date, batch number, serial number |
Usage method
First, install the computer on the bracket, insert the power cord, open the four switches in turn, the first laser marking machine is in line with the European standard, and the voltage is 110V (220V). Put the marking object on the conveyor belt. Open the conveyor belt, open the software, set up the mark, click the red light, find the focus and print.
Product features
Reliability: maintenance free, long life, no computer operating system restrictions, no consumption of materials, users can rest easy, easy to use. Dexterity: the huge monster transformation of traditional laser machine more than a few hundred kilograms into a portable laser system is less than twenty kg, and the world's fastest production efficiency, line laser marking machine is to improve the speed of marking, PLC system and customer owned factory connection, the full realization of pipeline operation, without any manual. Saves the cost of manpower.
FAQ
What is the difference between the specific parts of the flying laser marking machine and the static laser marking machine? The 1. flying laser marking machine adopts high speed marking mirror and high speed marking software, and the speed of marking is much faster than that of static beating.
Packing and shipping
1.Standard plywood case, no need to steam, can export directly.
2. car-lift machine up and down loading. more safe for machine.
3.when importing, the plywood case is with fumigation-free, the procedure is simple.
4.Delivery Detail: within 3-5 days after received your payment
| Delviery time | 3-10days |
| Type of shipping | Express,air or sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 70x67x130cm |
| Gross weight | 160KG |
After service
1.Warranty: 24 months.
2.We can provide picture / videos / marking sample for your checking.
3.OEM service is welcome!
4.We can ship to you within two weeks for mass order. For <2 sets order, we can ship you within 5days.
5.Your requirements and complaints are highly respected.
Chuke Factory
Chongqing Chuke Intelligent Machinery &Equipment Co.,Ltd is a world famous manufacturer of industrial laser equipment. Since 2006,Chuke Laser focused on the development and production of various types of laser machinery and CNC equipments.
