Home ProductsUV Laser Marking Machine

Full Automatic Glass Laser Engraving Machine 3W / 5W Water Cooling

Good quality Fiber Laser Marking Machine for sales
Good quality Fiber Laser Marking Machine for sales
We bought the laser marking machine.it is good quality. Hope CHUKE have the good bussiness all the time

—— Alfanar Electrical System

We bought the laser marking machine.it is goog quality. Hope CHUKE have the good bussiness all the time

—— Alfanar Electrical System

Chuke have been working with us for over 10 years. They provide us with accessories for marking machines, so that our machines sell well in India.

—— EtchON Marks Control

We have already bought second laser marking machines at the beginning, which is compatible with our assembly line operation, fully automated marking, fast, safe and efficient marking.

—— Ford Company

I'm Online Chat Now

Full Automatic Glass Laser Engraving Machine 3W / 5W Water Cooling

China Full Automatic Glass Laser Engraving Machine 3W / 5W Water Cooling supplier

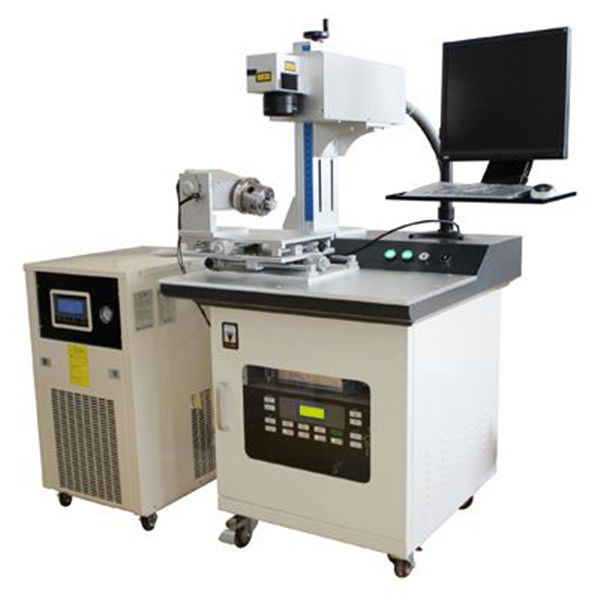

Large Image :  Full Automatic Glass Laser Engraving Machine 3W / 5W Water Cooling

Product Details:

Place of Origin: China(mainland)
Brand Name: ZIXU
Certification: CE,FDA,ISO
Model Number: ULMM-A01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 10000-15000 per set
Packaging Details: Packing in wooden case,95*81*122cm
Delivery Time: after payment 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram,Paypal
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Cooling System: Water Cooling Feature: Conceptual Design
Warranty: 1 Years Marking Material: Glass
Connection: USB Marking Content: Logo
High Light:

uv laser marker

,

uv laser engraving machine

Factory Price High precision marking 3W UV Glass laser marking machine



Product introduction



The first UV laser marking machine, "cold working" - has a very high load photon energy (UV) photons that interrupt the chemical bonding of materials (especially organic materials) or the surrounding medium to non-thermal process damage to the material.



Parameter
Parameter index
Unit
Illustration
Laser wavelength
354.7
nm
/
Average output power
3.0-5.0
W
@30kHz
pulse width
<20
ns
@30kHz
Pulse repetition frequency
10-100
KHz
/
Laser output mode
TEM00
/
/
Beam quality
<1.2
/
/
Spot diameter
0.8+-0.1
mm
Measured at window
Beam divergence angle
<1.2
mrad
/
Beam circularity
>90
/
/
Pulse stability
<3
%
RMS/@30kHz
Power stability
<5
%
RMS/8hr
Beam pointing stability
<30
urad/℃
/
Polarization degree
>100:1
/
/
Polarization direction
Horizontal
/
/
Working temperature and humidity
10to35 <80
℃ %
/
Storage temperature and humidity
-20 to 65 <90
℃ %
/
Power
100-240 50/60<500
VAC Hz W
Single phase
Warranty
15
months
/



Samples
Full Automatic Glass Laser Engraving Machine 3W / 5W Water Cooling



Application
Various depth applications: Small production used in chip embedding and surface grinding to remove organic material from metal surfaces



Usage method
Turn on the device, check the sound of the lens of the device, the sound of the control box, the alarm sound of the device itself



Product features

This type of cold working is of special significance in laser marking because it is not thermal ablated but does not produce the "thermal damage" side effects that interrupt the cold-stripping of the chemical bonds and therefore does not affect the inner and the vicinity of the surface of the add-on Produce heat or heat deformation and so on.





FAQ



Q. What I need to do when the machine suffer trouble?

A: Make sure all the wires be connection well ,and keep your lens and mirrors be clean ,then check your laser tube and talk details to us.





Design feature

Due to the very small focusing spot and the small heat-affected zone, UV laser can be used for ultra-fine marking and special material marking, which is a higher requirement for marking effect. Customer's Choice Product





Product features



Graphical user interface (GUI), graphics processing capabilities, a variety of file formats support, text layout







Chuke Factory



Chongqing Chuke Intelligent Machinery &Equipment Co.,Ltd
was founded in 2006. It is a manufacturer specializing in providing marking scheme, marking equipment and its accessories. It is currently the largest mainstream supplier of marking industry in China. The company takes "let the world do not have a bid problem" as the core goal, and hopes that through the efforts of all purple Xu people, all customers will have the most suitable marking scheme. Lay a solid foundation for the brand of customers!

The quality of the company is the soul of our enterprise. 10 years of insistence, let us have an excellent reputation in the industry. Attentively service makes customers more reliable to us. Professional design, considerate after sale, let our products are sold to the four seas, won the domestic and foreign customers unanimous praise! We firmly believe that through the joint efforts of Zi Xu people, we will enable all enterprises to have their own identification system, and successfully create the anti-counterfeiting and traceability system of enterprises.





Packing and shipping



Packing by wooden case, more security delivery with heavier weight and higher freight,more cheap for big machine shipping

Delviery time 7-15 working days
Type of shipping Express,air or sea
Terms of payment T/T,credit card,,paypal
package size 95x81x122cm
Gross weight 188KG
