Product Details:
Payment & Shipping Terms:
|
| Machine Structure: | Desktop Type | Compatible Software: | CORELDRAW,PHOTOSHOP,CAD |
|---|---|---|---|
| Warranty: | 2 Years | Marking Area: | 100x100mm |
| Connection: | USB | Application: | Nonmetal Marking |
| High Light: | uv laser marker,uv laser engraving machine |
||

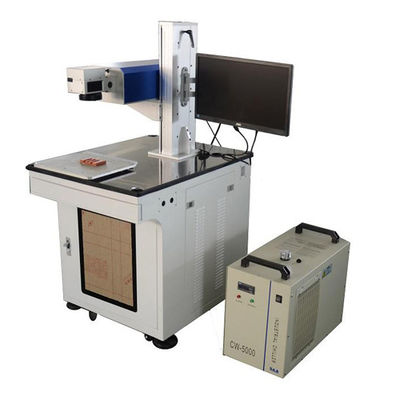

High Effiency Acrylicuv Uv Laser Engraving Machine
Product introduction
An ultraviolet laser beam is used to mark a permanent mark on variety of surface
|
Parameter
|
Parameter index
|
Unit
|
Illustration
|
|
Laser wavelength
|
354.7
|
nm
|
/
|
|
Average output power
|
3.0-5.0
|
W
|
@30kHz
|
|
pulse width
|
<20
|
ns
|
@30kHz
|
|
Pulse repetition frequency
|
10-100
|
KHz
|
/
|
|
Laser output mode
|
TEM00
|
/
|
/
|
|
Beam quality
|
<1.2
|
/
|
/
|
|
Spot diameter
|
0.8+-0.1
|
mm
|
Measured at window
|
|
Beam divergence angle
|
<1.2
|
mrad
|
/
|
|
Beam circularity
|
>90
|
/
|
/
|
|
Pulse stability
|
<3
|
%
|
RMS/@30kHz
|
|
Power stability
|
<5
|
%
|
RMS/8hr
|
|
Beam pointing stability
|
<30
|
urad/℃
|
/
|
|
Polarization degree
|
>100:1
|
/
|
/
|
|
Polarization direction
|
Horizontal
|
/
|
/
|
|
Working temperature and humidity
|
10to35 <80
|
℃ %
|
/
|
|
Storage temperature and humidity
|
-20 to 65 <90
|
℃ %
|
/
|
|
Power
|
100-240 50/60<500
|
VAC Hz W
|
Single phase
|
|
Warranty
|
15
|
months
|
/
|
Application
Silicon wafer; two-dimensional code marking of LCD liquid crystal glass and surface marking of glassware
The effect is fine, the marking is clear and firm, better than the ink jet code and no pollution.
FAQ
There are dust in the machine in the machine, and the moisture is too high and the air is corrosive. Check: observe the discharge point in the dark. Treatment: remove dust, water and other things, change the working environment.
Design feature
The high energy molecules of ultraviolet photons directly disengage them from the molecules on the metal or nonmetallic materials that need to be processed.
Product features
Such a way of work does not generate heat, because it does not generate heat. Therefore, the way of ultraviolet laser processing has become cold processing, which is also the difference from traditional laser.
Chuke Factory
Chongqing Chuke intelligent Machinery Equipment Co., Ltd. is a famous brand of Chinese marking machine. The purple Xu Machinery Factory is one of the largest marking production bases in China. The company is located in Beibei District of Chongqing, founded in 2006. In addition to the production of pneumatic marking needle, the company also independently developed the laser marking machine, pneumatic marking machine, electric marking machine, and its accessories.The purple Xu Machinery Factory is a company which integrates technology, industry and trade. The company has more than 60 production and sales personnel, 10 professional and technical workers, the company occupies 3000 square meters, has large production equipment, marking machine design, manufacturing, quality inspection, performance testing has strong technical strength and production capacity.All kinds of professional and technical elites, with the leading technology force of the marking machine, make every marking machine achieve fine, fine and new standard. In the past 10 years, we only do one thing, focusing on the production of marking machine and its accessories. is a famous brand of Chinese marking machine. The purple Xu Machinery Factory is one of the largest marking production bases in China. The company is located in Beibei District of Chongqing, founded in 2006. In addition to the production of pneumatic marking needle, the company also independently developed the laser marking machine, pneumatic marking machine, electric marking machine, and its accessories.The purple Xu Machinery Factory is a company which integrates technology, industry and trade. The company has more than 60 production and sales personnel, 10 professional and technical workers, the company occupies 3000 square meters, has large production equipment, marking machine design, manufacturing, quality inspection, performance testing has strong technical strength and production capacity.All kinds of professional and technical elites, with the leading technology force of the marking machine, make every marking machine achieve fine, fine and new standard. In the past 10 years, we only do one thing, focusing on the production of marking machine and its accessories.
Packing and shipping
Packing by wooden case, more security delivery with heavier weight and higher freight
| Delviery time | 7-15 working days |
| Type of shipping | Express,air or sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 95x81x122cm |
| Gross weight | 188KG |
