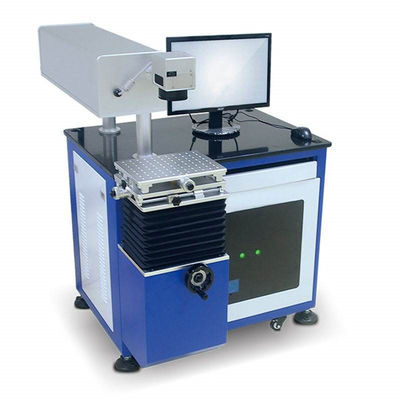

Plastic Animal Ear Tag UV Laser Marking Machine Desktop Type Structure

Good quality Fiber Laser Marking Machine for sales
Good quality Fiber Laser Marking Machine for sales
We bought the laser marking machine.it is good quality. Hope CHUKE have the good bussiness all the time

—— Alfanar Electrical System

We bought the laser marking machine.it is goog quality. Hope CHUKE have the good bussiness all the time

—— Alfanar Electrical System

Chuke have been working with us for over 10 years. They provide us with accessories for marking machines, so that our machines sell well in India.

—— EtchON Marks Control

We have already bought second laser marking machines at the beginning, which is compatible with our assembly line operation, fully automated marking, fast, safe and efficient marking.

—— Ford Company

I'm Online Chat Now

Plastic Animal Ear Tag UV Laser Marking Machine Desktop Type Structure

China Plastic Animal Ear Tag UV Laser Marking Machine Desktop Type Structure supplier

Large Image :  Plastic Animal Ear Tag UV Laser Marking Machine Desktop Type Structure

Product Details:

Place of Origin: China(mainland)
Brand Name: ZIXU
Certification: CE,FDA,ISO
Model Number: ULMM-A01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 10000-15000 per set
Packaging Details: Packing in wooden case,95*81*122cm
Delivery Time: after payment 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram,Paypal
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Laser System Language: English Laser Model Colour: Blue
Machine Structure: Desktop Type Compatible Software: CORELDRAW,PHOTOSHOP,CAD
Warranty: 2 Years Marking Area: 100x100mm
Connection: USB Application: Nonmetal Marking
Applicable Material: Glass Laser Power: 3w
High Light:

uv laser engraving machine

,

uv laser marking systems

Factory Price Plastic Animal Ear Tag Uv Laser Marking





Product introduction



Ultraviolet laser marking machine UV laser is the first high-power multi-mode laser diode laser generated after the laser frequency multiplier generated by the UV laser beam, and then through the computer-controlled high-speed scanning galvanometer deflection change laser beam optical path to achieve automatic marking.



Parameter
Parameter index
Unit
Illustration
Laser wavelength
354.7
nm
/
Average output power
3.0-5.0
W
@30kHz
pulse width
<20
ns
@30kHz
Pulse repetition frequency
10-100
KHz
/
Laser output mode
TEM00
/
/
Beam quality
<1.2
/
/
Spot diameter
0.8+-0.1
mm
Measured at window
Beam divergence angle
<1.2
mrad
/
Beam circularity
>90
/
/
Pulse stability
<3
%
RMS/@30kHz
Power stability
<5
%
RMS/8hr
Beam pointing stability
<30
urad/℃
/
Polarization degree
>100:1
/
/
Polarization direction
Horizontal
/
/
Working temperature and humidity
10to35 <80
℃ %
/
Storage temperature and humidity
-20 to 65 <90
℃ %
/
Power
100-240 50/60<500
VAC Hz W
Single phase
Warranty
15
months
/



Samples
Plastic Animal Ear Tag UV Laser Marking Machine Desktop Type Structure



Application
Apple phone, IPAD, keyboard and mouse, cell phone case, cell phone charger, UV plastic case, watch application



Usage method
Open the marking software, the contents of the input, at the same time can accept PLT, PCX, DXF, BMP, JPG files.



Product features

Near-perfect marking quality: 355nm output wavelength to reduce the thermal effects on the workpiece; Galvanometer high-precision marking head, marking the effect of fine and repeatable processing; High-precision fine spot to ensure the perfect marking results; Marking Non-contact process, marking the effect of permanent





FAQ



Q: Where is your facotry located in? How can I visit there?

A: Our factory is located in Heqing town, Pudong district, Shanghai, China, 18KM from Shanghai Pudong International Airport. We can pick you up from Airport and arrive at factory within 20 mins. You are warmly welcome to visit us!!!





Design feature

Can realize the automatic arrangement and modification of text symbols, graphic images, bar codes, two-dimensional codes, serial numbers, etc .; support PLT, PCX, DXF, BMP, JPG and other file formats, Positioning





Product features



Layered mark, Sample mark, Test mark, Use memory card to store, undo / redo function, Intelligent control of street and external equipment package







Chuke Factory



Chongqing chuke Intelligent Machinery Equipment Co., Ltd. is a famous brand of Chinese marking machine. The purple Xu Machinery Factory is one of the largest marking production bases in China. The company is located in Beibei District of Chongqing, founded in 2006. In addition to the production of pneumatic marking needle, the company also independently developed the laser marking machine, pneumatic marking machine, electric marking machine, and its accessories.The purple Xu Machinery Factory is a company which integrates technology, industry and trade. The company has more than 60 production and sales personnel, 10 professional and technical workers, the company occupies 3000 square meters, has large production equipment, marking machine design, manufacturing, quality inspection, performance testing has strong technical strength and production capacity.All kinds of professional and technical elites, with the leading technology force of the marking machine, make every marking machine achieve fine, fine and new standard. In the past 10 years, we only do one thing, focusing on the production of marking machine and its accessories. is a famous brand of Chinese marking machine. The purple Xu Machinery Factory is one of the largest marking production bases in China. The company is located in Beibei District of Chongqing, founded in 2006. In addition to the production of pneumatic marking needle, the company also independently developed the laser marking machine, pneumatic marking machine, electric marking machine, and its accessories.






Packing and shipping



Standard wooden case or according to customers special request!
Delivery Time
Shipped in 7 days after payment

Delviery time 7-15 working days
Type of shipping Express,air or sea
Terms of payment T/T,credit card,,paypal
package size 95x81x122cm
Gross weight 188KG
