Product Details:
Payment & Shipping Terms:
|
| Colour: | Red | MOQ: | 1 Set |
|---|---|---|---|
| Drive Type: | Electric | Controller: | LCD Touch Screen |
| Software: | Insert ThorX6 | Product Name: | Spot Goods Photo Automobile Electric Dot Pin Marking Machine Manufacturers |
| Marking Area: | 140x80mm | Marking Materials: | Above HRC60 Need Special Stylus |
| Repeat Accuracy: | 0.02-0.04mm | Power: | 300w |
| High Light: | pin stamping machine,raycus laser source |
||

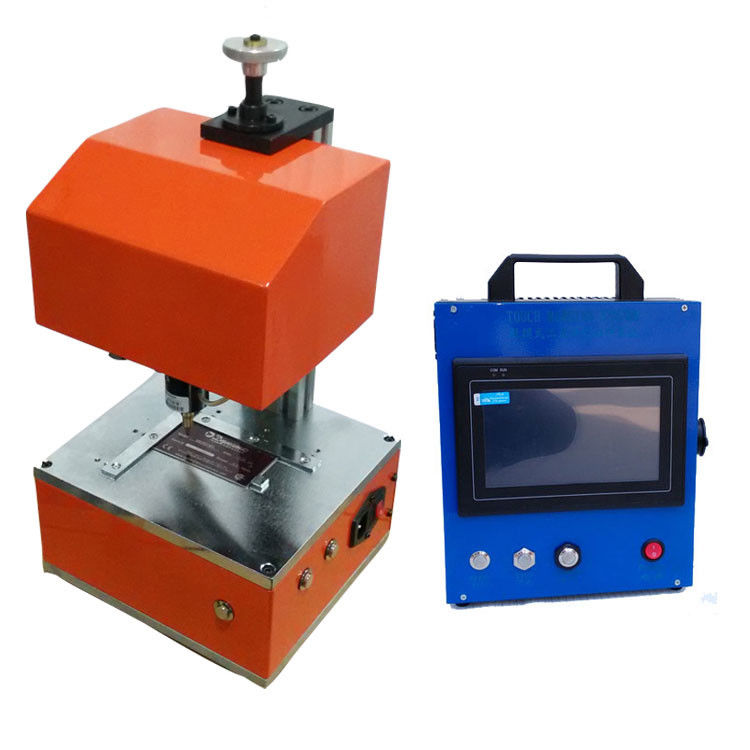

Spot Goods Photo Automobile Electric Dot Pin Marking Machine Manufacturers
Working Principle
The computer controlled printing needle moves in a two-dimensional plane of X and Y. At the same time, the printing needle makes high-frequency impact motion under the action of electromagnetic field, so as to print certain marks on the workpiece.
Application Range
The main typical applications: auto parts and parts, instruments, machinery, cars, signs and other industries.
Instructions
The microcomputer can't connect the power supply
1. Check the power outage of the local power grid
2. Check whether the power outlet or UPS power switch is open
3, check whether the microcomputer power supply is inserted into the power outlet
If the above problems do not exist, please check whether the power fan of the rear computer is rotating. If rotating, please check whether the display power is open or not. If the fan doesn't turn, it may damage the microprocessor power. At this point, you can replace the microcomputer power supply or contact the company maintenance personnel.
With a large depth, the marking output can be marked directly through the computer, and the mark is clear and clear.
| Marking area: | 140X80mm(or customized) |
| Marking speed: | 3-5 characters / second (2X2) |

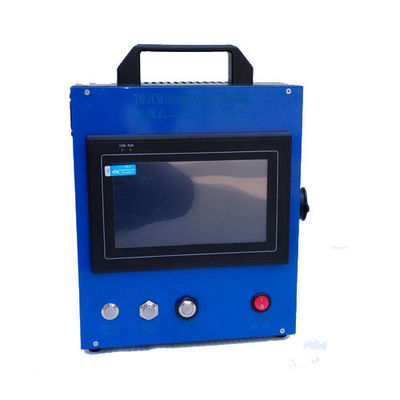

| Software application system: | LCD touch screen |
| Marking depth: | 0.01-1.2mm Adjustable (depending on the material) |
| Accuracy Assurance: | ≤ 0.01 |
| Height adjustment Range: | 10mm |
| Automatic storage: | can automatically store files and print content, 3L / S |
| analog display: | you can directly observe the marking on the screen |
| Print pin impact frequency: | 300 beats / second |
| Marking content: | Chinese and English characters, numbers, graphics (By marking software editing) Graphic |
| Editing: | Serial number (serial number) Automatic printing, storage, weight automatic detection, can identify the bar code |
| Marking material: | all kinds of metal (HRC85 hardness below), all kinds of hard materials Plastic bakelite, etc.) |
| Power: | 300W |
| Working voltage: | 110VAC / 220VAC |
| Delviery time: | 3-15 working days |
| Type of shipping: | Express,air or sea |
| Terms of payment: | T/T,credit card, |
| package size: | 45X45X55cm |
| Gross weight: | 23KG |
| Warranty time: | one year |
Service Content
More peace of mind:
Free shipping, free installation and commissioning, free operation and maintenance personnel training.
FAQ
The hard disk can not start normal, how to deal with
1. Please check if there is a floppy disk in the floppy drive. Please take it out.
2, please observe the hard light is bright, if not bright, please check the hard disk power line is connected, the data line is connected
3, please check the CMOS setup boot.
Design Features
Graphics can be called PLT graphics.
The typesetting function is strong, such as alignment, middle, equal division and so on;
Factory Introduction
Chongqing CHUKE Intelligent Machinery Equipment Co., Ltd. is a famous brand of Chinese marking machine. The ZIXU Machinery Factory is one of the largest marking production bases in China. The company is located in Beibei District of Chongqing, founded in 2006. In addition to the production of pneumatic marking needle, the company also independently developed the laser marking machine, pneumatic marking machine, electric marking machine, and its accessories.
The ZIXU Machinery Factory is a company which integrates technology, industry and trade. The company has more than 60 production and sales personnel, 10 professional and technical workers, the company occupies 3000 square meters, has large production equipment, marking machine design, manufacturing, quality inspection, performance testing has strong technical strength and production capacity.
All kinds of professional and technical elites, with the leading technology force of the marking machine, make every marking machine achieve fine, fine and new standard. In the past 10 years, we only do one thing, focusing on the production of marking machine and its accessories. is a famous brand of Chinese marking machine. The ZIXU Machinery Factory is one of the largest marking production bases in China. The company is located in Beibei District of Chongqing, founded in 2006. In addition to the production of pneumatic marking needle, the company also independently developed the laser marking machine, pneumatic marking machine, electric marking machine, and its accessories.
The ZIXU Machinery Factory is a company which integrates technology, industry and trade. The company has more than 60 production and sales personnel, 10 professional and technical workers, the company occupies 3000 square meters, has large production equipment, marking machine design, manufacturing, quality inspection, performance testing has strong technical strength and production capacity.
All kinds of professional and technical elites, with the leading technology force of the marking machine, make every marking machine achieve fine, fine and new standard. In the past 10 years, we only do one thing, focusing on the production of marking machine and its accessories.
Packing by corrugated board boxes, Light weight, freight is lower

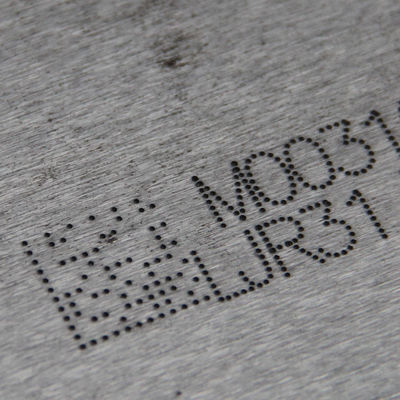

The supplier marks the workpiece selected by the buyer to see if the marking meets the requirements.
