Product Details:
Payment & Shipping Terms:
|
| Advantage: | Marking Deep | Head Weight: | 5KG |
|---|---|---|---|
| Drive Type: | Electric | Controller: | LCD Touch Screen |
| Software: | T6 | Product Name: | Portable Automatic Deep Dot Marking Tool For Toyota Vin Marking |
| Marking Area: | 140x80mm | Marking Materials: | Above HRC60 Need Special Stylus |
| Repeat Accuracy: | 0.02-0.04mm | Power: | 300w |
| High Light: | pin stamping machine,raycus laser source |
||

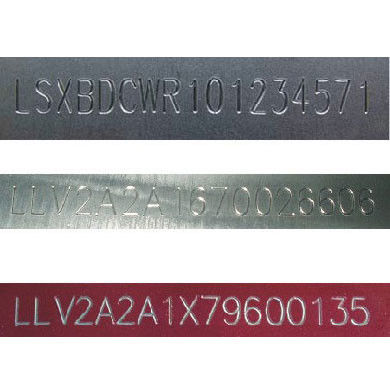

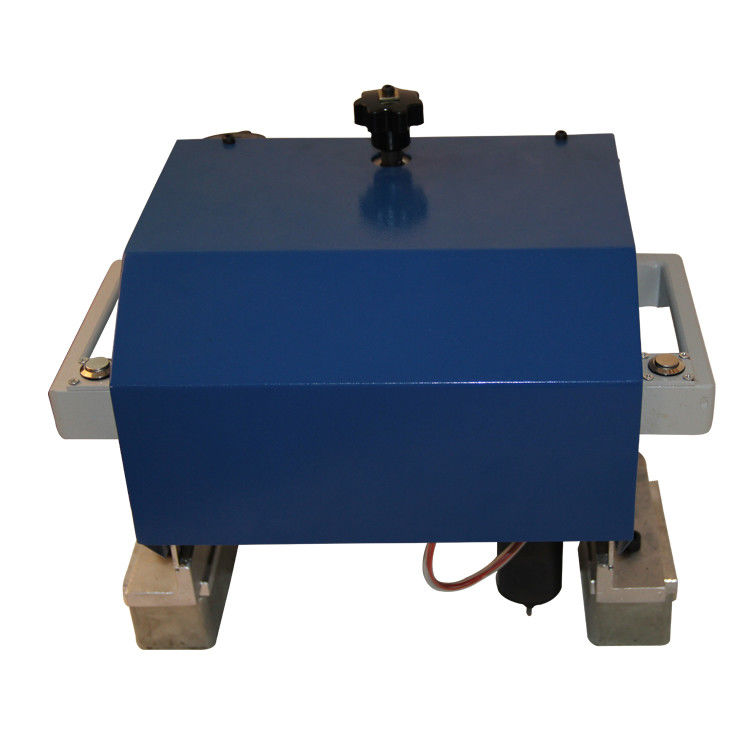

Portable Automatic Deep Dot Marking Tool For Toyota Vin Marking
Working Principle
Desktop electric marking machine under computer control, the marking head through the two-dimensional table driven in the plane for any movement, while the needle through the electric system for high-frequency vibration, the workpiece prints a clear mark.
Application Range
Desktop electric marking machine is widely used in the nameplate, metal gadgets and other products markings, marking noise, beautifully beautiful marking.
Instructions
Electric marking machine simply connect the power and controller, write the contents of the controller to be marked, press the print button to start printing.
1, advanced USB interface control technology (Cyclone dedicated interface chip);
2, AT89C51 as the main control center;
3, imported precision linear guide;
4, automatic system fault diagnosis function;
5, high torque, small angle stepper motor;
6, high-precision subdivision drive power;
Marking special marking control technology;
8, external print button switch;
9, external rotary printing mechanism.
| Marking area: | 140X80mm(or customized) |
| Marking speed: | 3-5 characters / second (2X2) |
| Software application system: | LCD touch screen |
| Marking depth: | 0.01-1.2mm Adjustable (depending on the material) |
| Accuracy Assurance: | ≤ 0.01 |
| Height adjustment Range: | 10mm |
| Automatic storage: | can automatically store files and print content, 3L/S |
| analog display: | you can directly observe the marking on the screen |
| Print pin impact frequency: | 300 beats / second |
| Marking content: | Chinese and English characters, numbers, graphics (By marking software editing) Graphic |
| Editing: | Serial number (serial number) Automatic printing, storage, weight automatic detection, can identify the bar code |
| Marking material: | all kinds of metal (HRC85 hardness below), all kinds of hard materials Plastic bakelite, etc.) |
| Power: | 300W |
| Working voltage: | 110VAC / 220VAC |
| Delviery time: | 3-15 working days |
| Type of shipping: | Express,air or sea |
| Terms of payment: | T/T,credit card, |
| package size: | 45X45X55cm |
| Gross weight: | 23KG |
| Warranty time: | one year |
Service Content
1.24 hours on-line 2.To solve your marking problems 3.1 year guarantee,providing free technical support. 4.During the warranty period, Warranty period, the required parts after the non-human damage free replacement,the freight is borne by us.
FAQ
1. How to choose a suitable for their own electric marking machine?
According to their own product characteristics, marking range, marking depth to choose a suitable marking machine
2. Electric marking machine can mark what content?
Chinese and English characters, two-dimensional code, graphics, special symbols
3. Print range?
Standard range 80 * 40mm, 130 * 30mm, marking range can be customized .
Design Features
Marking of the electric marking machine for the first part of the precision molds, the overall processing performance, to ensure the marking head of high precision, the marking characters beautiful, beautiful. The other manufacturers using sub-assembly processing, making the marking less accurate.
The main design features for small size, light weight, flexible operation, for the inconvenient to move the large workpiece, you can move the marking machine to surface marking, and this marking machine high technical performance, the use of more advanced technological innovation , So that performance is more prominent, marking the quality of clear and beautiful.
Factory Introduction
Chongqing ZIXU machine works is a research, design, manufacturing, sales as one of professional marking machine manufacturing factory. It has modern management team and excellent staff. ZIXU was founded in 2006, and founded the company's own brand - Zi XU, ZIXU covers an area of 2000 square meters, with a standard production workshop the annual production, laser marking machine 500, pneumatic and electric marking machine more than 1000 units, marking the needle (pneumatic marking needle type as many as 100 species) annual output of more than 100 thousand sets, laser engraving and welding machine more than 200 units.
After 10 years of manufacturing marking machine, ZIXU continue to enhance and improve the quality of products, has achieved CE, ISO9001, FDA, TUV certification, products are exported to India, Britain, Spain, France, Germany, the United States, Dubai and Brazil, South Korea and other more than and 100 countries and regions.
Packing in carton case,45*45*55cm The machine gross is 23KG, you can use express delivery. If more than 75KG, you can choose sea transportation.
