Product Details:
Payment & Shipping Terms:
|
| Product: | Mobile | Marking Material: | Pvc |
|---|---|---|---|
| Machine Structure: | Desktop Type | Marking Content: | Logo |
| Warranty: | 2 Years | Laser: | Uv Laser |
| High Light: | uv laser engraving machine,uv laser marking systems |
||

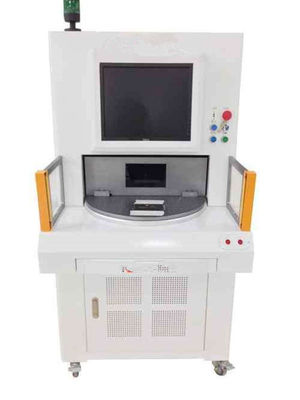

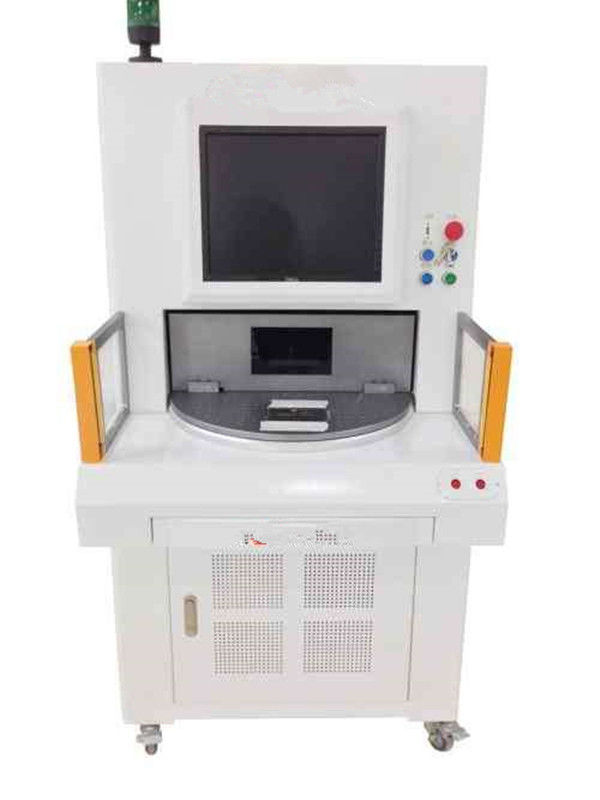

High Speed Pc Pp Pvc Plastic Mobile Uv Marking Machine
Product introduction
UV laser marking machine belongs to the laser marking machine in a series of products, but also the latest research and development of a laser processing technology, laser marking machine is used because the laser is hot processing technology, in terms of fineness There is a limit to the development of space to improve, but the use of UV laser marking machine is a cold, so the fineness, thermal impact down to a minimum, is a big leap in laser technology.
|
Parameter
|
Parameter index
|
Unit
|
Illustration
|
|
Laser wavelength
|
354.7
|
nm
|
/
|
|
Average output power
|
3.0-5.0
|
W
|
@30kHz
|
|
pulse width
|
<20
|
ns
|
@30kHz
|
|
Pulse repetition frequency
|
10-100
|
KHz
|
/
|
|
Laser output mode
|
TEM00
|
/
|
/
|
|
Beam quality
|
<1.2
|
/
|
/
|
|
Spot diameter
|
0.8+-0.1
|
mm
|
Measured at window
|
|
Beam divergence angle
|
<1.2
|
mrad
|
/
|
|
Beam circularity
|
>90
|
/
|
/
|
|
Pulse stability
|
<3
|
%
|
RMS/@30kHz
|
|
Power stability
|
<5
|
%
|
RMS/8hr
|
|
Beam pointing stability
|
<30
|
urad/℃
|
/
|
|
Polarization degree
|
>100:1
|
/
|
/
|
|
Polarization direction
|
Horizontal
|
/
|
/
|
|
Working temperature and humidity
|
10to35 <80
|
℃ %
|
/
|
|
Storage temperature and humidity
|
-20 to 65 <90
|
℃ %
|
/
|
|
Power
|
100-240 50/60<500
|
VAC Hz W
|
Single phase
|
|
Warranty
|
15
|
months
|
/
|
Application
Flexible pcb board marking, dicing; silicon wafer micro-hole, blind hole processing; LCD liquid crystal glass two-dimensional code marking, glassware surface drilling, metal surface coating marking, plastic buttons, electronic components, gifts, communications Equipment, building materials and more..
1.Turn on the computer 2.open the galvanometer power 3.open the laser power 4.open the software
UV laser marking machine laser.The wavelength of visible light is shorter, so the naked eye is not visible. Although you can not see the laser beams, it is these short waves that allow the UV laser to focus more precisely, resulting in extremely precise circuit characteristics while maintaining excellent positioning accuracy. "
FAQ
1. UV laser is hot or cold processing? UV laser processing into a cold, because the high-energy molecules of UV photons, directly to the need to process the metal or non-metallic materials above the molecule to make it out, but this separation led to the separation of molecules and materials, this work does not produce Heat, because it does not generate heat so UV laser processing has become a cold process, which is the source, but also with the traditional laser difference.
Design feature
Most of the lasers and power supply using foreign brands, such as the laser using world-class brand of semiconductor pump module, the power control chip all the US brands, switching power supply using the Taiwan brand. This ensures the stability of the equipment. The laser utilizes a unique cavity design that is installed, commissioned and sealed in Class 1000 cleanrooms.
Product features
Ultraviolet laser heat affected area is extremely small, will not produce thermal effects, does not produce the problem of material scorching; marking speed, high efficiency; machine performance and stability, small size, low power consumption advantages.
Chuke Factory
Founded in 2006, Chongqing Chuke is a professional manufacturer that provides marking solutions, marking equipment and accessories, and is currently the largest mainstream accessory supplier in China marking industry. Companies to "make the world no marking problems" as the core goal, I hope all the people through the efforts of the purple aspirations, so that all customers have the most suitable marking program. Lay a solid foundation for the customer's brand building!
The quality of the company as the soul of our business! 10 years of insistence, let us get excellent reputation in the industry. Intentions of the service to our customers more trust. Professional design, thoughtful after-sales, let our products are exported to all corners of the country, won the praise of customers at home and abroad! We firmly believe that through the joint efforts of Zixu people, we will surely make all enterprises have their own identification system and successfully create a business anti-counterfeiting and traceability system.
After sale service
1.1 year guarantee,providing free technical support.
2.During the warranty period, the required parts after the non-human damage free replacement,the freight is borne by us.
3.Machine has been adjusted before delivery, operation instructions is included in the delivery. If there is any other questions, pls kindly tell us.
Packing and shipping
Packing in wooden case,95*81*122cm The machine gross is 1-188KG, you can use express delivery. If more than 75KG, you can choose sea transportation.
| Delviery time | 7-15 working days |
| Type of shipping | Express,air or sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 95x81x122cm |
| Gross weight | 188KG |
