High Precision UV Laser Marking Machine Desktop Cnc Military Dog Tag Crystal

China High Precision UV Laser Marking Machine Desktop Cnc Military Dog Tag Crystal supplier

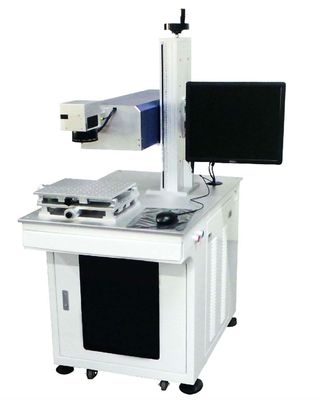

Large Image :  High Precision UV Laser Marking Machine Desktop Cnc Military Dog Tag Crystal

Product Details:

Place of Origin: China(mainland)
Brand Name: ZIXU
Certification: CE,FDA,ISO
Model Number: ULMM-A01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 10000-15000 per set
Packaging Details: Packing in wooden case,95*81*122cm
Delivery Time: after payment 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Marking Material: Crystal Marking Content: Date
Compatible Software: CORELDRAW,PHOTOSHOP,CAD Warranty: 2 Years
Feature: Flexible Mode Of Work Laser Power: 5w

High Precision Desktop Cnc Military Dog Tag Uv Crystal Machine







Product introduction



The UV laser marking machine uses a vibrating mirror scanner to make the laser shift and move. The laser beams emitted by lasers are projected onto the first and second galvanometer scanners. They scan the laser beam in two directions of X and Y in the plane. Under the control of the computer, the laser beam will focus on the focusing lens and scan the required content in the plane



Parameter
Parameter index
Unit
Illustration
Laser wavelength
354.7
nm
/
Average output power
3.0-5.0
W
@30kHz
pulse width
<20
ns
@30kHz
Pulse repetition frequency
10-100
KHz
/
Laser output mode
TEM00
/
/
Beam quality
<1.2
/
/
Spot diameter
0.8+-0.1
mm
Measured at window
Beam divergence angle
<1.2
mrad
/
Beam circularity
>90
/
/
Pulse stability
<3
%
RMS/@30kHz
Power stability
<5
%
RMS/8hr
Beam pointing stability
<30
urad/℃
/
Polarization degree
>100:1
/
/
Polarization direction
Horizontal
/
/
Working temperature and humidity
10to35 <80
℃ %
/
Storage temperature and humidity
-20 to 65 <90
℃ %
/
Power
100-240 50/60<500
VAC Hz W
Single phase
Warranty
15
months
/



Samples
High Precision UV Laser Marking Machine Desktop Cnc Military Dog Tag Crystal



Application

UV marking machine can mark on the car keys. A high-end car, no matter how small the accessories must be high-end, small to a button must also be high-end. The UV laser marking machine can play the beautiful number on the car keys and will never fall off. It is the high end of the car.



Usage method

First, turn on the total power, open the computer, laser, red light, import the pictures into the software, machine supports JPG, BMP, GIF, tga.png, TIF, TIIF and other pictures, click the red light, adjust the size of the picture on the workpiece, adjust the power, and then mark it.



Product features
Demanding fine, creating unrivalled technology quality 1. advanced technology guarantee, no need to replace frequency doubling crystal, effectively reduce operation cost.
2. new UV-Laser uses simplified optical design to improve product reliability
3. fully enclosed design of machining zone to guarantee the improvement of safety and protection of processing process
4. new design and selection of components to ensure the long life of the system





FAQ



What is the principle of the UV laser marking machine? Ultraviolet laser marking machine is different from fiber laser marking machine. Fiber laser marking machine adopts air cooling system, while ultraviolet laser marking machine generally adopts water cooling system, equipped with water tank, marking is very exquisite.





Design feature

Long life, high efficiency, no maintenance, easy to install and carry. The operation of the whole machine is simple and the switch machine is controlled by one button. Very suitable for single processing operations,It is convenient and convenient to use with other automation equipment. It has high quality laser beam with fine spot and no consumables. The software is simple, do not need supplies.





Product features



We are committed to professional R &amp; D / customize / produce high-performance scientific research and industrial laser marking machine, with various products, high stability, size and power, single longitudinal mode, narrow linewidth, low noise and so on, which are suitable for all kinds of experimental requirements.





Chuke Factory



Chuke Intelligent Machinery & Equipment Co., Ltd specializes in the development and production of pneumatic marking machine, pneumatic marking machine parts, pneumatic marking needle. R & D and production of marking needle sales 11 years, is the earliest production marking needle manufacturers. Marking needle production from the ordinary lathe equipment to fully automatic CNC equipment, marking needle technology is the beginning of several processes, and now has a fully automated equipment, a process is completed, fully guaranteed product quality, accuracy, concentricity and yield issues. So purple Asahi marking needle has been fully able to meet the various types of marking machine needs. Has been throughout the country and the world. Market share of 70%. Purple Asahi is the real marking needle experts.




After sale service

Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.





Packing and shipping



Wooden box or according your requests
Delivery Time
3-5 days



Delviery time 7-15 working days
Type of shipping Express,air or sea
Terms of payment T/T,credit card,western union,paypal
package size 95x81x122cm
Gross weight 188KG
