| Color: | Black | Brand Name: | Bochang |
|---|---|---|---|
| Application:: | Fiber Laser Marking Machine | Work Area: | 200*200mm |
| Feature: | Printing Fine | Warranty: | 1 Years |
| High Light: | co2 laser source,raycus fiber laser source |
||

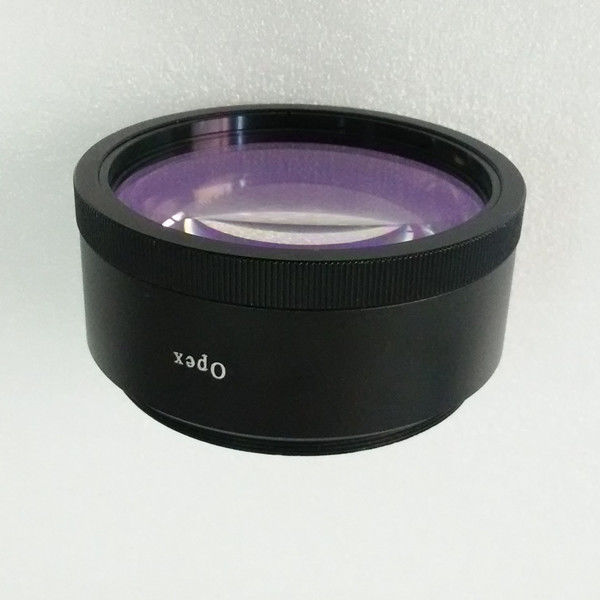

1064Nm Range Filed Lens Of Laser Marking Machine Parts
Working principle
According to the light wavelength and other information design field lens specifications, through the refraction of light, focusing, to achieve the focus of light to strengthen. From the need to be able to recharge and move the light energy.
Application
Mainly used in laser marking systems, military and medical chemistry
According to different marking requirements and product configuration, select the appropriate field lens, the need to pay attention to the focal length in the course of the problem, different ranges need to correspond to different focal lengths. In order to achieve the strongest laser intensity.
Product feature
1, so that the detector photosensitive surface of non-uniform light to be uniform;
2, when using the flat field mirror, you can get flat field image;
3, in aberration correction, you can compensate for the system field curvature and distortion.
FAQ
I use a 20W laser marking machine can choose the 200mm marking range: No, because the 20W power is relatively small, if you choose 200mm marking field mirror will consume the laser intensity.Field mirror larger, in the propagation process The larger the laser energy loss.If you select the 200mm marking range, you need to select at least 30W laser marking machine.So the user should choose the most suitable field lens according to different processing area, or reserve a few different scanning range of the field Focal length: depends on the working distance but not the working distance Focal spot diameter: For a scanning system with incident laser beam diameter D, field focal length F and beam quality factor Q, the focal spot diameter d = 13.5 QF / D (mm), so the use of beam expander can get smaller focus spot
Design feature
increase the ability of edge beams to enter the detector;(2) In the same main optical system, the additional field mirror will reduce the detector area. If you use the same detector area, you can expand the field of view, to increase the incident flux;
(3) The modulation plate can be placed out of the image plane to solve the problem that the modulator is nowhere to be placed.
Product features
High precision and high transparency of the field mirror with the optimization of laser beam quality characteristics, on the contrary, if the choice of low-quality field mirror will damage the beam, making the marking quality is not good, fuzzy and so on.
| Delviery time | 5-8working days |
| Type of shipping | Express,air or sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 20x25x30cm |
| Gross weight | 1KG |
Packaging & Shipping
The transportation of goods shall comply with the relevant provisions of the relevant transportation department (road, rail, sea and air). Shipping, the goods should be configured to balance, ceramsite sand production line should not be emphasis on one or one end, if necessary, take counterweight measures. When loading, pay attention to the contact area between small parts and body parts with small weight. Such as the anvil may be set weight. Set heavy parts should take measures to increase the contact area of the carrier and the body.
Chuke Factory
Zixu Machinery Factory specializes in producing laser marking machine and provides all kinds of marking machine accessories.Developing, developing and producing marking products occupy the leading position in the same industry in terms of output, quality, variety, product coverage and equipment reputation, Create a good economic and social benefits.The company relies on science and technology plant, with strong financial and technical strength, in product design, technology, production, quality inspection, marketing, and so has a number of years engaged in professional, profound knowledge, skilled, practical experience of senior engineering and technical personnel And managers.Companies carry forward the "unity, pragmatic, hard work and innovative" spirit of enterprise, "honesty, compassionate Boli" business philosophy, "
After-sales Services
When the customer reported failure by technical telephone support can not be resolved, the company will be in accordance with the contract response time to send engineers to the customer site to troubleshoot and maintain. Including faulty equipment retrieval and return.
