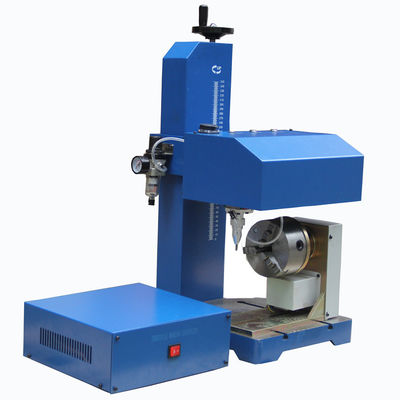

Cnc Batch Code Dot Pin Pin Stamp Marking Machine PMK-G01 for Motorcycle

Principle:

To print Chinese and English characters, the contents of the graphics input to the computer, computer marking software to change the content of digital control signals sent to the controller to drive the print on the workpiece hit by a continuous dot matrix characters and graphics; pin XY Dimensional plane according to the set track movement, while the print pin under the action of compressed air in the workpiece surface to print out by the dense lattice composed of concave mark.

Application:
1) Automobiles, motorcycles and other engines, pistons, body, frame, chassis, connecting rod, engine, cylinder and other parts number, name, trademark, date of production printing;
2), electric cars, bicycles, motorcycles and other plus frame printing;
3), a variety of products, vehicles, equipment, product label printing;
4) All kinds of mechanical parts, machine tools, metal products, metal pipes, gears, pumps, valves, fasteners, steel, instrumentation, mechanical and electrical equipment, and other metal marking; plastic products.

Portable Dot Peen Marking Machine parameter



Usage method

Application range
1) Automobiles, motorcycles and other engines, pistons, body, frame, chassis, connecting rod, engine, cylinder and other parts number, name, trademark, date of production printing;
2), electric cars, bicycles, motorcycles and other plus frame printing;
3), a variety of products, vehicles, equipment, product label printing;
4) All kinds of mechanical parts, machine tools, metal products, metal pipes, gears, pumps, valves, fasteners, steel, instrumentation, mechanical and electrical equipment, and other metal marking; plastic products.
Product features

(1)；Power conditions: AC voltage 220 ± 10%, 50Hz ± 1%, power ≤ 1Kw;
⑵ gas source conditions: 0.3-0.8Mpa compressed air, dry and pure, can be an industrial gas source, air compressor can also be used for gas supply;
⑶ Relative Humidity: <85% at 25 ℃;
⑷ relative temperature: 6 ℃ - 38 ℃;
⑸ area: 1 square;
FAQ

Marking head can not be normal 'reset'.
cause of issue
When resetting, the print head emits a large amount of impact noise. After the reset, the stepper motor can not stop working.
The reset work indicator will be on when the reset is normal. ('X-axis' and 'Y-axis' LED work lights on the controller panel)
Inspection steps:
One. 'X axis' 'Y axis' LED work light is damaged.
Two limit switch damage or limit switch shift.
Three .25 pin data cable, 19-core print line is damaged. (X axis 'Y axis' LED work light will be on but the computer does not receive the reset signal)
Fourth, there is a problem with the computer or printing software. (X axis 'Y axis' LED work light will be on but the computer does not receive the reset signal)

Design feature
 Can have a good mode of operation, the implementation of the relevant print instructions immediately, making the entire pneumatic marking machine in operation, do not take long to complete the relevant tasks, but also does not produce any quality problems, printing The effect and quality are clearly guaranteed.
After service

We "serve the customers with one heart, friends make friends all over the world" for the purpose of operating in good faith, perfect service for the concept of good service for each of a marking equipment, and strive to create one-stop solution to the trouble of laser equipment users of service companies.
Packing and shipping
Only one mantissa box is allowed after each batch of product is packed. That is, the number of packages per batch only allows one decimal.



Chuke Factory
CHUKE company advanced technology, strengthen management, with the domestic advanced processing technology and production equipment, can provide all kinds of marking on the market need to mark the company. Own brand -CHUKE, the cylinder stamp Marking Factory, with a large number of electric standard Carved series of products, marking the scale industry reputation. The company has the right to operate import and export, steel cylinder marking machine, Beibei District of Chongqing export enterprises. In order to better do a good job of products and services, the company's products through the EU certification and exports to the United States FDA certification, the products have passed ISO9001 international quality system certification.
