Product Details:
Payment & Shipping Terms:
|
| Min Quantity: | 10 Set | Marking Depth: | 0.01-1mm |
|---|---|---|---|
| Marking Speed: | Upto 1-6(2x2mm) Characters/s | Type: | Pneumatic Printer |
| Marking Characteristic: | Lengthening | Advantage: | Computerized |
| High Light: | metal laser marking machine,industrial laser marking machine |
||

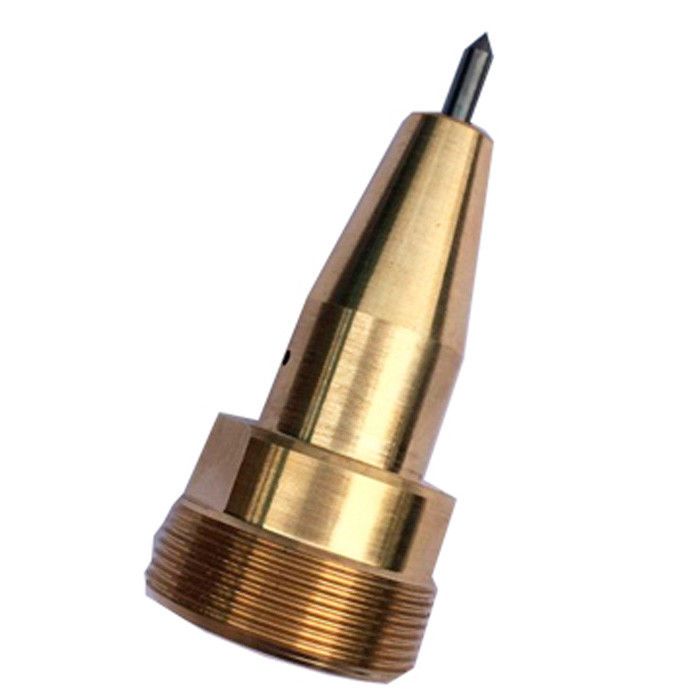

4X65Mm Marking Machine Stylus For High Hardness Pneumatic Marking Pin
Principle
Pneumatic marking needle works by the compressed air pressure and spring reaction force to achieve the needle up and down movement of the needle, and then print a certain depth on the workpiece mark
Application
A material with a major hardness above HRC60 degrees, a marking for a special hardness material, such as an alloy tool, etc
Usage method
The running track of the printing needle is not normal
Reasons and solutions:
There are errors in the 1. file input process. For example, there is an invisible print in the print area. The document should be re established according to the operating guide.
The 2. control program is destroyed. The control software should be reinstalled.
3. computer hardware or other soft faults. The computer is overhauled by the professional staff.
4. the motor control drive board is damaged in the controller. The control drive board should be replaced. "
Product features
the marking head inlaid with diamond
| type | marking needle |
| Size | 4mm |
| length | 65mm |
| Type | pneumatic marking needle |
FAQ
The running track of the printing needle is not normal
Reasons and solutions:
There are errors in the 1. file input process. For example, there is an invisible print in the print area. The document should be re established according to the operating guide.
The 2. control program is destroyed. The control software should be reinstalled.
3. computer hardware or other soft faults. The computer is overhauled by the professional staff.
4. the motor control drive board is damaged in the controller. The control drive board should be replaced. "
is your marking needle expensive?"
No, we are the real manufacturers. The same quality, our price is the cheapest
Function
Pneumatic marking machine dedicated marking Needle core made of imported all-carbide, printing HRC65 hardness below the metal parts and hard non-metallic plastics, rubber, bakelite, hard paper and so on. Marking pins are ¢ 2.5mm, ¢ 3mm, ¢ 4mm, ¢ 5mm, ¢ 6mm and other models, and can be produced
After service
1. We sell the whole one year warranty, life-long maintenance;
2. Free installation, debugging my company sold products;
Packing and shipping
Packing in carton case,20*20*25cm The machine gross is 1-75KG, you can use express delivery. If more than 75KG, you can choose sea transportation.
| Delviery time | 1-3 working days |
| Type of shipping | Express |
| Terms of payment | T/T,credit card,,paypal |
| package size | 20x20x10cm |
| Gross weight | 0.5KG/5 piece |
Chuke Factory
Chongqing Chuke located at the foot of beautiful Mount Jinyun ,the famous scenic of Beibei ,Chongqing. Founded in 2006, we are specialized in the research and production of marking machine and its main spare parts. The production and consumption reaches 10 thousand pieces a year, this makes us being the largest supplier of marking pin set.
Our success is built on providing innovative solutions to contemporary marking problems. Now we almost cover all relating marking products, marking range from metal to nonmetal products, to cater the diversity marking requirements of customers.
Based on several years of extensive experience in the field of domestic market, since 2009, our company gained independent import and export rights and starts to exporting the machine to the overseas market, and earned an international reputation for our good quality and service.
