3Mm Diameter Carbide Marking Stylus For Pneumatic Marking Machine

China 3Mm Diameter Carbide Marking Stylus For Pneumatic Marking Machine supplier
3Mm Diameter Carbide Marking Stylus For Pneumatic Marking Machine supplier 3Mm Diameter Carbide Marking Stylus For Pneumatic Marking Machine supplier

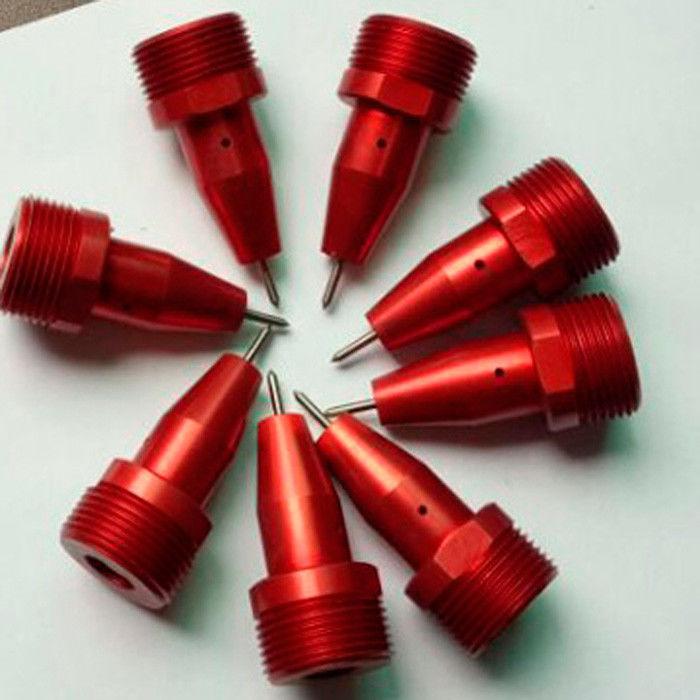

Large Image :  3Mm Diameter Carbide Marking Stylus For Pneumatic Marking Machine

Product Details:

Place of Origin: China(mainland)
Brand Name: ZIXU
Certification: FDA,CE,ISO
Model Number: MMK-C01

Payment & Shipping Terms:

Minimum Order Quantity: 1 0 set
Price: USD 10-100 per set
Packaging Details: Packing in carton,20*10*20cm
Delivery Time: after payment 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
Min Quantity: 20 Set Advantage: ODM
Brand: Zixu Needle Material: Brass
Marking Characteristic: Large Thread Apply For: Curved Surface
High Light:

metal laser engraving machine

,

industrial laser marking machine

3Mm Diameter Carbide Marking Stylus For Pneumatic Marking Machine





Principle



The working principle of the pneumatic marking needle is to make the high-frequency impact movement through the pressure generated by air compression and the reaction of the spring, and then print a certain depth mark on the workpiece





Application:



Pneumatic marking machine dedicated marking needle, needle core made of hard alloy, printable hardness below HRC65 ° metal parts and hard non-metallic plastics, rubber, Bakelite, hard paper, etc.

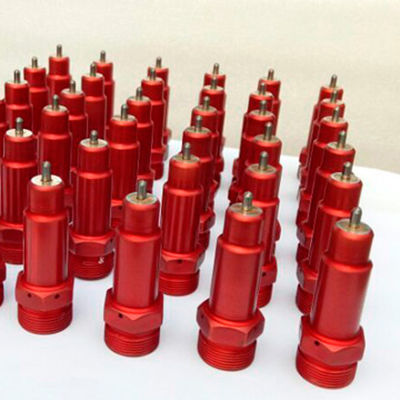

3Mm Diameter Carbide Marking Stylus For Pneumatic Marking Machine



Usage method



First, install the marking needle in the needle seat, adjust the distance between the marking needle and the work piece to be adjusted, adjust the proper distance, start the marking machine, and set the contents to be marked, you can use the marking needle Mark the workpiece.



Product features



1. Print pin how to maintain? After 2 months of use, the print pin should be removed and the bottom of the print pin and the bottom of the pin header should be removed and cleaned every 2 months to ensure normal use of the print pin. In the usual course of use to promptly clean up the regulator in the water, oil and other impurities to ensure that compressed air clean. (Note: Please repeat the installation and debugging process of C after the cleaning and maintenance are aimed at). 2. Affect the life of the print pin factor? Depends on the print pin usage time, print depth, the workpiece material is hit, and print the needle itself material and other issues.



type marking needle
Size 3mm
length 56mm
Type pneumatic marking needle



FAQ



1. Print pin how to maintain? After 2 months of use, the print pin should be removed and the bottom of the print pin and the bottom of the pin header should be removed and cleaned every 2 months to ensure normal use of the print pin. In the usual course of use to promptly clean up the regulator in the water, oil and other impurities to ensure that compressed air clean. (Note: Please repeat the installation and debugging process of C after the cleaning and maintenance are aimed at). 2. Affect the life of the print pin factor? Depends on the print pin usage time, print depth, the workpiece material is hit, and print the needle itself material and other issues.



Function



For a variety of metal or non-metallic signs, parts of the plane marking, and cylindrical workpiece radial marking. Especially for a variety of nameplates, signs marking, easy to use and economical.



After service



One warranty for the whole machine.Three months for the marking needle.



Packing and shipping



Packing in carton case,20*20*10cm The machine gross is 1-75KG, you can use express delivery. If more than 75KG, you can choose sea transportation.



Delviery time 1-3 working days
Type of shipping Express
Terms of payment T/T,credit card,,paypal
package size 20x20x10cm
Gross weight 0.5KG/5 piece
