Product Details:
Payment & Shipping Terms:
|
| Min Quantity: | 15 Set | Advantage: | OEM |
|---|---|---|---|
| Needle Material: | Titanizing | Colour: | Green |
| Marking Characteristic: | Marking Shallow | Apply For: | Flat Surface |
| High Light: | metal laser engraving machine,industrial laser marking machine |
||

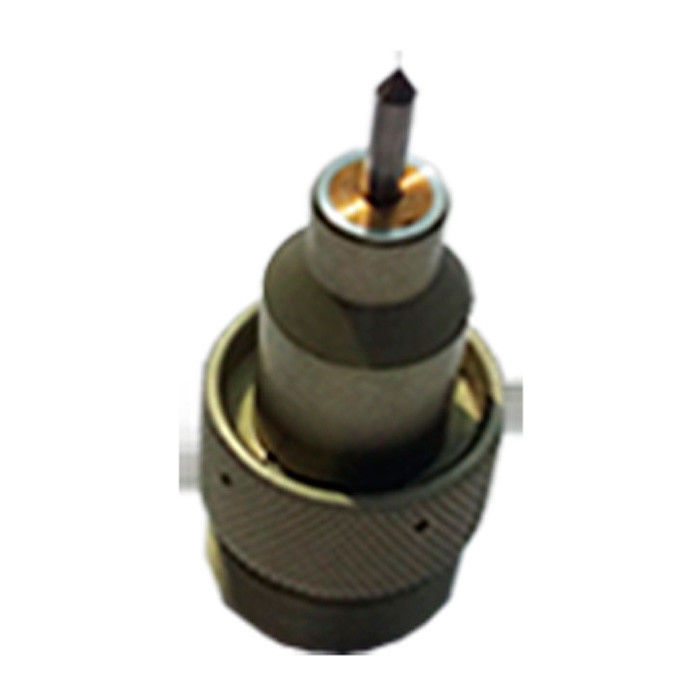

Cribe Marking Pin Set For Marking Machine Marking Peen For Marking
Principle
Marking needle in the role of compressed air to do high-frequency impact movement, which printed on the workpiece to a certain depth mark
Application:
All kinds of plastic and metal nameplate signs, cars, aircraft, trains and parts, boat wheel plates, cylinders, gears, bearings, valves, flanges, sensors, transformers, tubing, Ruler, drill, nuts and some other large aircraft, ships, it is suitable.
Usage method
Print pin installation, after the print pin is installed, the distance between the tip of the print pin and the printed workpiece should be kept at a certain distance (the desktop should maintain a distance of 30mm and the handheld should maintain a distance of 20mm
Product features
High hardness, low cost, long use time 2. The tip can be polished 3. Can mark the depth and reduce the mark 4. Very economical and practical pneumatic marking machine
| type | marking needle |
| Size | 4mm |
| length | 65mm |
| Type | pneumatic marking needle |
FAQ
How to choose suitable marking stylus? For the stylus length:
1. 30mm, 42mm, 45mm: suitable for portable marking machine
2. 56mm, 60mm: suitable for normal marking and bench top marking machine
3. 75mm, 76mm, 110mm: lengthened marking pin are mainly used for narrow parts marking that normal marking pin hard to reach, such as modified motorcycle engine number etc.
For the stylus size:
a.Φ2, Φ2.5: suitable for aluminum etc. Low hardness products
b.Φ3, Φ4: suitable for normal marking requirements
c.Φ5, Φ6, Φ8: a certain depth requirements.
Function
Our marking pin alloy can be chosen from 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 8mm and the length can be customized from 30-200mm.
After service
Size: Both length and diameter can be customized Universal diameter of 3mm
Average life: 5-6 months (test mark material can extend life expectancy).
Packing and shipping
Packing in carton case,20*20*25cm The machine gross is 1-75KG, you can use express delivery. If more than 75KG, you can choose sea transportation.
| Delviery time | 1-3 working days |
| Type of shipping | Express |
| Terms of payment | T/T,credit card,,paypal |
| package size | 20x20x10cm |
| Gross weight | 0.5KG/5 piece |
Chuke Factory
Since the establishment of the company in 2003 just a few workers to the present dozens of people rely on the focus and perseverance of the product, because of focus, so professional.
Initial marking needle more processes, complex technology, product concentricity is a technical difficulty, high scrap rate, these problems allow small manufacturers choose to give up counterparts. On the contrary Zixu people through their own focus and perseverance, difficulties and problems are slowly solved.
In 2012, it introduced the advanced numerical control equipment. The product once formed completely overcome the technical difficulties! ! Special technology made, embedded in the pillowcase wear oil-bearing, the process of typing will be out of oil, the perfect protection of the needle core and needle sleeve, a substantial increase in wear resistance!
