Product Details:
Payment & Shipping Terms:
|
Name: | Customized Dot Pin Marking Machine Price | Marking Depth: | 0.01-1mm |
---|---|---|---|
Marking Materials: | Metal Material | Application: | Pipe |
Type: | Pneumatic Printer | Parts: | Rotary |
Service: | Good Aftersales Service | Profit Model: | Agent |
Support Graphics Formates: | Serial Number | ||
High Light: | dot punching machine,handheld dot peen marking system |
Desktop Customized Dot Pin Marking Machine Price For Metal Pipe
Principle
The contents of the input to computer English character and graphics printing, computer marking software convert the content of digital control signal transmitted to the controller, drive and print on the workpiece play consisting of a continuous lattice character and graphics; the needle in the X Y two dimensional plane trajectory according to the set, and print needle under the effect of compressed air on the surface of the work piece to print out the concave marks composed of dense lattice.
Application:
The Customer had marking to be done on flanges and similar components and there was a variation in positions.
Solution: We deviced a simple rotary attachment for the existing 2 axis machine where the operator could manually rotate the component and clamp it in place for marking.
model | Dot pin marking machine |
weight | 50kg |
Machinpower | <300w |
Power supply | 220v/110v |
Strokefre quency | 300times/s |
Marking speed | 2-5 characters(2x2mm)/s |
Marking depth | 0.01 to 1mm (Vary to the material) |
Standard marking area | 80x40mm,130x30mm,140x80mm,200x200mm |
Usage method
Take out the trachea, put the machine and the controller in good condition, connect the letter inserting line, plug in the power supply, and install the marking needle on the machine. The marking needle only needs to be marked away from the marking object 5mm.
Product features

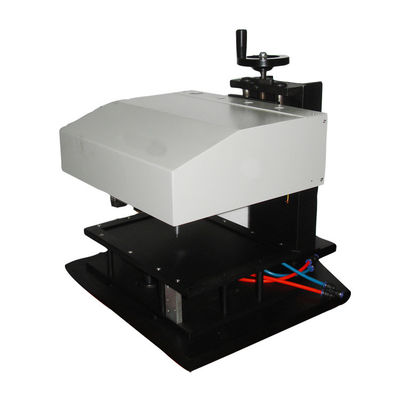

Table mounted marking machines are designed for marking on any small component. It has marking window of 140mm x 80mm..Simply plug the machine and start marking. Its optional metal bellows benefits to keep debris always. The mounted has facility to adjust height upto 350 mm as per the marking component.
FAQ
What is the maximum and minimum type of typeface printed by a pneumatic marking machine? Can print the smallest font, as long as your eyes can be seen, the largest font is the print range, our marking range is generally 140x80mm
Design features
The platform type pneumatic marking machine adopts the cast iron floor, the bottom plate is thick, and the body will not shake when marking, so the marking effect is very exquisite.
After service
1> All of our machine will be full-checked by our quality control department before the shipment. We make sure that customers
will be get good products from us. and all of our machine with a 12 months quality guarantee period.
2> We will enclose an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the
customer.
3> We will offer plenty of online supports, by email, video, telephone and fax.
Packing and shipping
Packaging Details
wooden box
Delivery Time
5-7 working days
Delviery time | 7-15 working days |
Type of shipping | Express or by sea |
Terms of payment | T/T,credit card,,paypal |
package size | 65x55x75cm |
Gross weight | 50kg |
Chuke Factory
Chuke Machinery Factory was established in 2006, before my company staff have many years of machining experience, so initially I was established in the production of marking the needle business, with the customer's needs, our company has gradually achieved business expansion , So far the company's technology has been in the forefront of domestic counterparts, customized business reached a new level, both pneumatic marking machine or laser marking machine have been recognized by customers, marking needle is occupied the vast domestic market Part of the market. Our products have been certified by world famous quality system, including: ISO, CE, PDA, TUV and so on. Recently, the company is capturing new technical problems and providing brand new services to customers with higher requirements. Our products are completely free within the warranty period of repair and replacement, the warranty period only charge a cost, at any time to solve the urgent needs of customers, in order to solve customer needs for the purpose. No matter where you are, we can serve you.
